이상적인 사출 성형 벽 두께는 얼마입니까?

벽 두께^[1] is arguably the single most important design parameter in injection molding. Get it right, and your part molds cleanly, functions reliably, and costs less. Get it wrong, and you’re dealing with sink marks, warpage, voids, and cycle times that eat your margin.

This guide covers everything engineers need to know about 사출 성형 wall thickness: how to choose the right value, what happens when walls aren’t uniform, material-specific guidelines, and the most common mistakes from thousands of DFM reviews.

What Is Wall Thickness in Injection Molding?

Wall thickness is the distance between the outer and inner surface of a molded part at any cross-section. It determines how plastic flows through the injection mold cavity, how quickly the part cools, and whether final dimensions hold to specification.

Thinner walls save material and reduce cycle time, but increase injection pressure requirements and risk short shots. Thicker walls flow more easily but cool slowly, extending cycle time and increasing the risk of voids and sink marks. The sweet spot for most engineering thermoplastics is 1.5–3.0 mm. Always verify your chosen thickness against the material supplier’s data sheet and flow simulation results before finalizing the design.

Why Is Uniform Wall Thickness So Important?

Non-uniform wall thickness is the root cause of more molding defects than any other single design error. When walls vary significantly, thick sections cool and shrink at a different rate than thin sections. This differential shrinkage사출 성형^[2] creates internal stresses that manifest as warpage, sink marks, and dimensional instability.

The guideline is straightforward: maintain wall thickness within ±25% of the nominal value throughout the entire part. If your nominal wall is 2.5 mm, every section should fall between 1.9 mm and 3.1 mm.

What Is the Recommended Wall Thickness by Material?

Different materials have different flow characteristics and shrinkage rates. Here’s a practical reference table based on extensive production data.

재료	Min Wall (mm)	Ideal Range (mm)	Max Practical (mm)
ABS	0.8	1.5–3.0	4.5
PC(폴리카보네이트)	0.8	1.5–3.0	4.5
PP(폴리프로필렌)	0.6	1.2–2.5	5.0
PA (Nylon 6/66)	0.6	1.0–3.0	4.0
POM (Acetal)	0.8	1.0–3.0	4.0
PMMA (Acrylic)	0.8	1.5–3.5	5.0
PBT	0.8	1.0–3.0	4.0
PE(폴리에틸렌)	0.6	1.0–2.5	5.0
PS(폴리스티렌)	0.8	1.0–3.0	4.5
TPE/TPU	0.5	1.0–3.0	5.0

The minimum wall values represent what’s technically possible with optimized processing, not what’s recommended for production. For reliable manufacturing, stay within the ideal range.

How Do You Transition Between Different Wall Thicknesses?

Sometimes wall thickness variation is unavoidable. When it happens, the transition between thick and thin sections is critical. The standard guideline is a 3:1 taper ratio: for every 1 mm of thickness change, provide at least 3 mm of gradual transition.

Abrupt thickness changes cause flow hesitation, stress concentrations, and visible sink marks on the opposite surface. In severe cases, parts crack at thickness transitions during assembly because residual stress exceeds the material’s yield strength.

What Happens When Walls Are Too Thick?

Thick walls create three problems: excessive cycle time, internal voids, and sink marks.

Cycle Time Penalty

Cooling time scales approximately with the square of wall thickness. A part with 2 mm walls might cool in 15 seconds; the same geometry with 4 mm walls could take 50–60 seconds. Across a production run of 100,000 parts, that’s thousands of additional machine hours.

Internal Voids

When thick sections cool, the outer skin solidifies first while the interior is still molten. As the interior shrinks, it pulls away from the solidified skin, creating internal voids that reduce structural integrity — particularly problematic in load-bearing applications.

싱크 마크

Sink marks are the surface manifestation of the same phenomenon. When material at a thick section shrinks, it pulls the surface inward, creating a visible depression especially noticeable on glossy surfaces. Rib-to-wall ratios directly control sink severity: ribs thicker than 50–60% of nominal wall almost always produce visible sink marks.

What Happens When Walls Are Too Thin?

Thin walls carry their own risks. The most immediate is short shots — the plastic melt freezes before completely filling the cavity. This is especially problematic with high-viscosity materials like polycarbonate and long flow paths, where the melt viscosity is already high.

Thin walls also increase injection pressure requirements. If required pressure exceeds machine capability, you get incomplete fills and high residual stress.

Structural integrity is another concern — always include a safety margin for thin-wall parts in consumer products subject to drop testing. A part that survives static loads may crack on impact if walls are too thin.

How Do Ribs and Bosses Affect Wall Thickness?

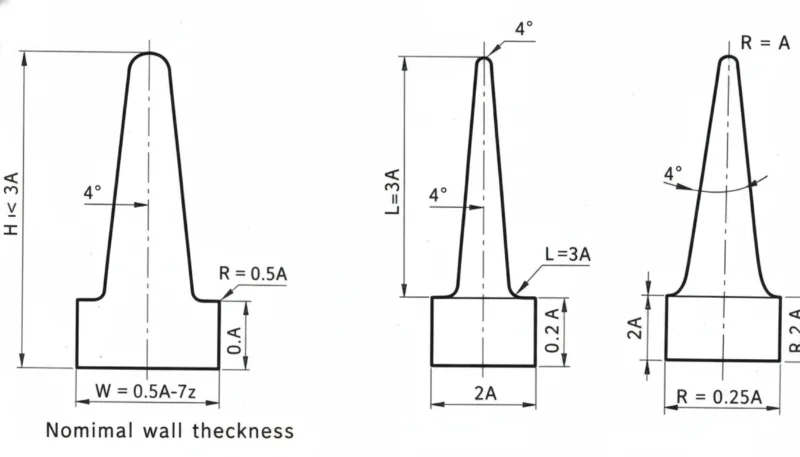

Ribs and bosses are the most common features that interact with wall thickness. For ribs: base thickness should be 50–60% of nominal wall, height should not exceed 3× nominal wall, and multiple thin ribs are better than one tall, thick rib.

For bosses, coring is the solution — hollow out the center with a core pin to maintain uniform wall thickness. Boss outside diameter should be no more than 2–3 times the hole diameter. Parts that follow these proportinjection moldingional 사출 금형^[3] mold cleanly; those that deviate generate ongoing quality issues.

How Does Wall Thickness Affect Cycle Time?

In 사출 성형, 냉각 시간^[4] typically represents 50–70% of total cycle time, governed by the thickest cross-section.

Nominal Wall	Typical Cooling Time	Relative Cycle Cost
1.5 mm	8–12 seconds	1.0× (baseline)
2.0 mm	12–18 seconds	1.3×
2.5 mm	18–25 seconds	1.6×
3.0 mm	25–35 seconds	2.0×
4.0 mm	40–60 seconds	3.0×

Going from 2.0 mm to 3.0 mm walls roughly doubles per-part manufacturing cost through cycle time alone. Thin-wall design, when structurally feasible, is one of the highest-ROI optimizations in injection molding.

What Are the Most Common Wall Thickness Mistakes?

1. Neglecting uniform thickness. Parts designed without thickness analysis have areas 3× thicker than nominal alongside sections at half nominal wall, causing sink marks, warpage, and extended cycle times.
2. Over-thickening for strength. Engineers add material when a rib would be lighter, faster to produce, and more dimensionally stable.
3. Ignoring rib proportions. Ribs at 80–100% of nominal wall cause deep sink marks. The 50–60% rule applies to every material.
4. Abrupt thickness transitions. Sharp changes without taper create stress risers and cosmetic defects.
5. Not running flow simulation. Modern tools predict fill patterns, pressure, and cooling with high accuracy. Skipping simulation on complex parts usually loses.

What Should You Check Before Submitting Your Design?

Before submitting your design for tooling, run through this checklist. Each item takes seconds to verify and can prevent costly tooling revisions.

Check Item	Pass Criteria
Nominal wall within material ideal range	✓
Wall variation within ±25% of nominal	✓ or noted
All ribs ≤60% of nominal wall	✓
Thickness transitions use 3:1 taper	✓
Boss OD ≤3× hole diameter	✓
Thickest section identified and reviewed	✓
Flow simulation completed	✓

Optimizing wall thickness before the mold is built is essential — the cheapest place to fix a thickness problem is in CAD, not in steel.

Frequently Asked Questions About Wall Thickness

사출 성형의 최소 벽 두께는 얼마인가요?

For most engineering thermoplastics (ABS, PC, Nylon), 0.8 mm is the practical minimum for short flow paths. For high-flow materials like PP and PE, you can go as thin as 0.5 mm. These minimums require high injection pressure and carry risk of short shots.

부품 전체에서 벽 두께가 달라질 수 있나요?

예, 하지만 변동은 공칭 벽 두께의 ±25% 이내로 유지되어야 하며, 서로 다른 두께 사이에는 3:1 테이퍼 비율을 사용한 점진적인 전환을 적용해야 합니다.

벽 두께는 수축과 어떻게 관련되어 있나요?

두꺼운 부분은 더 많은 재료가 냉각되고 수축하기 때문에 더 많이 줄어듭니다. 이러한 차등 수축은 사출 성형 부품의 뒤틀림의 주요 원인입니다.

벽 두께가 부품 강도에 영향을 미치나요?

네, 하지만 선형적으로는 아닙니다. 벽 두께를 두 배로 하면 굽힘 강성이 두 배 이상 증가합니다(두께의 세제곱으로 증가합니다). 그러나 벽을 두껍게 하면 잔류 응력과 공극 발생 위험도 증가합니다. 적절하게 비례된 리브는 종종 더 나은 강도-중량 성능을 달성합니다.

벽 두께는 어떻게 측정하나요?

CAD 소프트웨어(SolidWorks, Creo 및 대부분의 MCAD 패키지에 내장됨)의 두께 분석 도구를 사용하세요. 실제 부품에서는 비파괴 측정을 위해 초음파 두께 측정기를 사용하거나, 절단된 단면을 캘리퍼로 직접 측정합니다. 생산 과정에서는 초음파 측정이 지속적인 품질 모니터링의 표준 방법입니다.

씬월 몰딩이란 무엇인가요?

박벽 성형은 벽 두께가 1.0mm 미만(전자제품 외관용으로는 0.3mm까지 얇은 경우도 있음)인 부품을 의미합니다. 매우 높은 압력(200+ MPa)을 필요로 하는 고속 기계와 특수 금형 설계가 요구됩니다.

Bottom line: 벽 두께를 1.5–3.0mm 사이로 유지하고 ±25% 균일성을 유지하며, 3:1 테이퍼 전환을 사용하고 리브를 명목 벽의 50–60%로 유지하세요. 이 네 가지 규칙은 벽 두께 관련 결함의 90%를 방지합니다.

---
