What Is Injection Molding for Automotive Parts and Why Does It Dominate?

Injection molding for automotive parts is a manufacturing process where molten polymer is injected under high pressure (typically 500–1,500 bar) into a precision steel mold to produce plastic components used in vehicles. It dominates automotive plastics production because it delivers unmatched repeatability, tight tolerances, and scalability for volumes ranging from 10,000 to millions of parts per year.

In our factory at ZetarMold, we’ve seen the automotive sector grow to represent nearly 40% of our injection molding projects. The reason is straightforward: no other process matches the combination of speed, precision, and material versatility that injection molding offers for car parts.

The global automotive plastics market reached $52.2 billion in 2024 and is projected to exceed $73 billion by 2030. A modern car contains approximately 100–150 kg of plastic, with injection molded components making up the largest share. From lightweight interior trim to structurally critical engine covers, this process has become indispensable.

Which Automotive Parts Are Made by Injection Molding?

Injection molding produces a vast range of automotive parts spanning interior, exterior, under-hood, and electrical components. In our production facility, we manufacture parts across all four categories, and the diversity continues to grow as automakers replace metal with engineered plastics for weight reduction.

Here is a breakdown of the most common injection molded automotive parts by vehicle area:

We’ve noticed that the shift toward electric vehicles (EVs) has accelerated demand for injection molded battery housings, charging port covers, and lightweight structural brackets. One EV project we completed last year required 23 different injection molded components per vehicle.

What Materials Work Best for Automotive Injection Molding?

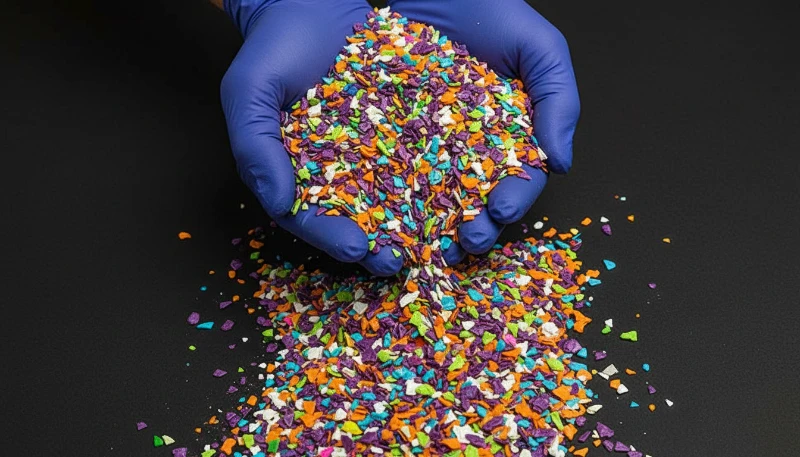

The best materials for automotive injection molding depend on the part’s function, location in the vehicle, and performance requirements. Polypropylene (PP) accounts for roughly 40% of all automotive plastics due to its low cost, chemical resistance, and versatility, while engineering plastics like glass-filled nylon handle high-temperature under-hood applications.

In our factory, we work with over 15 different polymer families for automotive projects. Here are the most commonly specified materials and their properties:

We’ve found that material selection often requires balancing multiple factors. For example, a client wanted ABS for an exterior mirror housing, but after UV exposure testing, we recommended an ASA blend that offers 5× better weatherability with similar mechanical properties.

How Does the Automotive Injection Molding Process Work Step by Step?

The automotive injection molding process follows a precise sequence of clamping, injection, packing, cooling, and ejection, with each phase carefully optimized for the specific part geometry and material. A typical cycle takes 15–60 seconds depending on part size, wall thickness, and material type.

Here’s how we run a typical automotive part through our production line:

Etapa 1: Preparação do material — Plastic pellets are dried (PA6 requires 80°C for 4 hours to reach <0.2% moisture) and blended with any colorants or additives.

Step 2: Melt and Inject — The injection molding machine heats pellets to 200–320°C (depending on resin) and injects molten plastic into the mold cavity at 500–1,500 bar pressure.

Step 3: Pack and Hold — After filling, pressão de retenção¹ is maintained at 40–80% of injection pressure to compensate for shrinkage as the material cools.

Step 4: Cool — Cooling channels in the mold circulate water at 10–80°C. Cooling typically accounts for 60–80% of total cycle time. For a PP bumper with 3 mm wall thickness, we target 25–35 seconds of cooling.

Step 5: Eject and Inspect — Ejector pins push the solidified part out. Automated vision systems check for defects like short shots, flash, or sink marks before parts move to secondary operations.

What Quality Standards Apply to Automotive Injection Molding?

Automotive injection molding must comply with IATF 16949 (the automotive-specific quality management standard), along with OEM-specific requirements from manufacturers like Toyota, Volkswagen, and General Motors. These standards govern everything from raw material traceability to part dimensional verification and process capability (Cpk ≥ 1.67).

In our factory, we maintain IATF 16949 certification and follow the APQP (Advanced Product Quality Planning) process for every automotive project. Here are the key quality frameworks:

One quality challenge we frequently encounter is meeting VOC (volatile organic compound) emission limits for interior parts. German OEMs are particularly strict — we’ve had to adjust our PP formulations and post-mold bake cycles to meet VDA 278 requirements for cabin air quality.

What Are the Common Defects in Automotive Injection Molding and How Do You Prevent Them?

The most common defects in automotive injection molding include warpage, sink marks, weld lines, short shots, and flash. Each defect has specific root causes related to mold design, process parameters, or material selection, and experienced molders can prevent most of them through proper DFM (Design for Manufacturability)³ analysis before tooling begins.

Here are the defects we encounter most often in automotive projects and our proven solutions:

In one automotive dashboard project, we faced persistent warpage exceeding the 0.3 mm flatness tolerance. By switching from conventional straight-drilled cooling to conformal cooling channels (3D-printed inserts) and adjusting the gate location based on flow analysis, we reduced warpage to 0.12 mm — well within specification.

How Much Does Automotive Injection Molding Cost?

Automotive injection molding costs break down into tooling (mold) costs and per-part production costs. A typical automotive injection mold ranges from $15,000 to $100,000+ depending on complexity, while per-part costs range from $0.10 to $5.00 at production volumes. The total cost of injection molding decreases dramatically with volume, making it most economical above 10,000 units.

Here’s a cost breakdown we typically share with our automotive clients:

We’ve found that clients from the automotive sector often underestimate tooling costs but overestimate per-part costs. For a recent project producing 500,000 interior trim clips per year, the $35,000 mold investment brought per-part cost down to $0.08 — far cheaper than any alternative process.

How Is Injection Molding Evolving for Automotive Manufacturing?

Injection molding for automotive manufacturing is evolving through lightweighting initiatives, EV-specific component demands, sustainable materials, and Industry 4.0 integration. The push toward electric vehicles has created entirely new categories of injection molded parts — battery enclosures, charging components, and thermal management systems — while sustainability targets are driving adoption of recycled and bio-based polymers.

Key trends we’re seeing in our automotive projects:

1. Lightweighting through Material Substitution — Metal-to-plastic conversion continues to accelerate. We recently replaced a die-cast aluminum bracket with a PA6-GF50 injection molded version, achieving 45% weight reduction while meeting the same load requirements.

2. Micro-Cellular Foaming (MuCell) — This process injects nitrogen gas into the melt to create a foamed core structure, reducing part weight by 10–15% and eliminating sink marks. Several Tier 1 suppliers we work with now specify MuCell for interior panels.

3. Overmolding and Insert Molding — Multi-material parts that combine rigid substrates with soft-touch surfaces or integrate metal inserts are increasingly common. We produce door handle assemblies that combine PC/ABS structure with TPE overmold in a single two-shot process.

4. Recycled Content Requirements — EU regulations now push for 25% recycled plastic content in new vehicles by 2030. We’ve validated recycled PP (rPP) for several non-critical interior applications with less than 5% property reduction versus virgin material.

5. Smart Manufacturing — Our newer presses integrate cavity pressure sensors and real-time process monitoring. When parameters drift outside control limits, the system automatically adjusts or flags parts for inspection — reducing scrap rates below 0.5%.

FAQ

What is the most common plastic used in automotive injection molding?

Polypropylene (PP) is the most widely used plastic in automotive injection molding, accounting for approximately 40% of all automotive plastics. It is favored for bumpers, interior trim, and battery cases due to its low density (0.9 g/cm³), chemical resistance, and excellent cost-to-performance ratio.

How tight are the tolerances achievable in automotive injection molding?

Standard automotive injection molding achieves tolerances of ±0.1–0.2 mm, while precision molding for connectors and sensor housings can reach ±0.02–0.05 mm. Achieving tight tolerances requires high-quality mold steel (H13 or S136), temperature-controlled molds, and consistent process parameters with Cpk ≥ 1.67.

How does injection molding compare to 3D printing for automotive parts?

Injection molding is superior for production volumes above 500–1,000 parts due to lower per-part cost, better mechanical properties, and wider material selection. 3D printing is more cost-effective for prototyping (1–50 parts) and geometry validation. For automotive production, injection molding offers 10–100× faster throughput and materials that meet actual automotive specifications.

What is the typical lead time for an automotive injection mold?

A standard automotive injection mold takes 6–12 weeks from design approval to first article inspection (FAI). Complex multi-cavity molds with hot runners and side actions may require 12–16 weeks. Rapid tooling in aluminum can deliver prototype molds in 2–4 weeks for design validation.

Can injection molding produce structural automotive parts that replace metal?

Yes, with engineering plastics like glass-filled nylon (PA6-GF30 to PA6-GF50) and carbon-fiber-reinforced polymers, injection molding can produce structural parts such as engine brackets, pedal assemblies, and seat structures that meet or exceed metal performance at 40–60% less weight.

What surface finishes are available for injection molded automotive parts?

Automotive injection molded parts can achieve SPI A-1 mirror polish (Ra < 0.012 μm), textured finishes (VDI 3400, Mold-Tech standards), and everything in between. Interior parts typically use textured finishes (MT-11010 to MT-11570 range) to hide fingerprints and reduce glare, while exterior parts may require Class A surfaces for painting.

How do you ensure color consistency across large automotive production runs?

Color consistency requires masterbatch or pre-colored resin from a single lot, documented color standards (measured with spectrophotometers to ΔE < 1.0), and consistent process parameters. In our factory, we run color verification samples every 2 hours during production and maintain retained samples for the full production run.

Resumo

Injection molding remains the backbone of automotive plastics manufacturing, producing everything from high-volume interior clips at $0.08 per part to complex under-hood components that withstand 150°C continuous operation. The process offers unmatched scalability, material versatility, and precision for the automotive industry’s demanding requirements.

At our factory, we’ve completed over 200 automotive injection molding projects spanning interior, exterior, under-hood, and electrical components. Whether you’re developing a new EV component or optimizing an existing part for cost reduction, the key to success lies in early DFM collaboration, proper material selection, and rigorous quality systems aligned with IATF 16949.

As the automotive industry shifts toward electrification and sustainability, injection molding continues to evolve — incorporating recycled materials, advanced simulation tools, and smart manufacturing technologies that make it more capable and efficient than ever before.
