How Long Does Injection Molding Production Take and How Can You Speed It Up?

要点
3D金型設計、冷却レイアウト、ゲート配置
– Cooling time accounts for 60–80% of the total cycle, making it the biggest lever for speed optimization.
– In our factory, optimizing cooling channels and gate design has cut cycle times by 20–35% on existing molds.
– Total project lead time from design to mass production typically ranges from 4–12 weeks depending on part complexity.

内容隠す

1. How Long Does Injection Molding Actually Take?

2. What Are the Key Phases of Injection Molding Cycle Time?

3. What Factors Determine Total Project Lead Time?

4. How Can You Reduce Cooling Time — the Biggest Time Consumer?

5. What Machine and Automation Choices Affect Production Speed?

6. How Do You Calculate Production Time for a Specific Project?

7. よくあるご質問

8. 概要

How Long Does Injection Molding Actually Take?

Injection molding production time depends on two very different scales: the サイクルタイム for each individual shot (typically 15–60 seconds) and the project lead time from concept to mass production (typically 4–12 weeks). At ZetarMold, clients often ask “how long will it take?” — and the honest answer requires understanding both timescales.

Injection molding machines in production facility — Modern injection molding machines can produce hundreds of parts per hour once the mold is set up.

The per-part サイクルタイム¹ breaks down into four phases: injection (1–5 seconds), packing (3–10 seconds), cooling (10–40 seconds), and mold open/eject/close (3–8 seconds). The total determines your hourly output rate and unit economics.

What Are the Key Phases of Injection Molding Cycle Time?

Each cycle consists of four sequential phases. Understanding how long each takes — and what controls it — is essential for optimization.

Injection molding cycle time breakdown — The injection molding cycle is dominated by cooling time, which typically accounts for 60–80% of total cycle.

Phase	Typical Duration	Key Variables	% of Total Cycle
Injection (fill)	1–5 s	Part volume, injection speed, number of gates	5–15%
Packing (holding)	3–10 s	Gate freeze time, holding pressure profile	10–20%
冷却	10–40 s	Wall thickness, mold temperature, coolant flow	60–80%
Mold open/eject/close	3–8 s	Machine dry cycle, ejection complexity	5–15%

“Faster injection speed always means shorter cycle time.”偽

While faster injection reduces fill time by a few seconds, it can create quality issues like jetting, burn marks, or flash that require slower overall cycles. Since cooling dominates cycle time (60–80%), injection speed has minimal impact on total throughput compared to cooling optimization.

“Reducing wall thickness by 10% can cut cooling time — and total cycle — by approximately 20%.”真

Cooling time scales roughly with the square of wall thickness. A 10% reduction in wall thickness (e.g., 2.5 mm to 2.25 mm) reduces cooling time by approximately 19%, which translates directly into shorter cycles and higher hourly output.

What Factors Determine Total Project Lead Time?

Beyond the per-shot cycle, the total time from project start to mass production involves several major milestones.

Injection molding production timeline — A typical injection molding project timeline from DFM review to mass production.

Phase	Duration	What Happens
DFM review	2–5 days	Design for manufacturability analysis, material selection
金型設計	5–10 days	3D mold design, cooling layout, gate placement
金型製造	セットアップ時間：4時間	CNC machining, EDM, assembly, polishing
Trial molding (T1)	1–2 days	First samples, dimensional inspection
Mold revision	3–7 days	Steel-safe modifications based on T1 results
T2/T3 trials	1–3 days each	Validation samples, process documentation
Production ramp-up	1–3 days	Establish stable process, quality confirmation

At ZetarMold, we typically deliver T1 samples within 25–35 days for standard complexity molds. Complex multi-cavity or hot runner molds may extend to 45–60 days.

How Can You Reduce Cooling Time — the Biggest Time Consumer?

Since cooling accounts for 60–80% of cycle time, it offers the greatest opportunity for time reduction. In our production facility, we have achieved 20–35% cycle time reductions through cooling optimization alone.

Mold cooling channel optimization — Optimized cooling channels can reduce cycle time by 20–35%.

Proven cooling optimization strategies:

Conformal cooling² — 3D-printed cooling channels that follow part contours reduce cooling time by 25–40% compared to straight-drilled channels.
BeCu inserts — Beryllium copper’s thermal conductivity (3–5× steel) accelerates heat removal in thick or hard-to-cool areas.
Turbulent flow — Ensuring Reynolds number >10,000 in cooling circuits improves heat transfer efficiency by 3–5×.
Mold temperature controllers — Precise ±1°C temperature control prevents over-cooling (which wastes time) and under-cooling (which causes defects).

What Machine and Automation Choices Affect Production Speed?

The injection molding machine itself and the level of automation significantly impact throughput.

Automated injection molding production line — Robotic part removal and automated quality inspection maximize production speed.

Machine selection factors:

All-electric vs. hydraulic — All-electric machines have 15–20% faster dry cycles (mold open/close) and more precise repeatability.
Clamp tonnage matching — An oversized machine wastes energy and has slower movements. Matching tonnage to actual need improves speed.
マルチキャビティ金型 — Doubling cavities doubles output per cycle. We commonly run 4–16 cavity molds for high-volume parts.

Automation impact:

Robotic part removal — Reduces mold-open time by 1–3 seconds per cycle vs. gravity drop.
In-mold labeling (IML) — Combines decoration with molding, eliminating a secondary operation.
Automated quality inspection — Vision systems check parts in real-time without stopping production.

“Multi-cavity molds always reduce per-part production time proportionally.”偽

While multi-cavity molds increase parts per cycle, they also require longer cooling times (more heat to remove), higher clamp tonnage, and more complex balancing. A 4-cavity mold typically produces 3.2–3.6× the output of a single-cavity mold — not 4×. Filling imbalance can further reduce the efficiency gain.

“All-electric injection molding machines can deliver 15–20% faster cycle times than equivalent hydraulic machines.”真

All-electric machines use servo motors that move the clamp and screw simultaneously (parallel motion), while hydraulic machines often perform these sequentially. This parallel operation, combined with faster acceleration and deceleration, typically saves 15–20% on total cycle time.

How Do You Calculate Production Time for a Specific Project?

Here is the formula we use at ZetarMold to estimate total production time for a given order quantity:

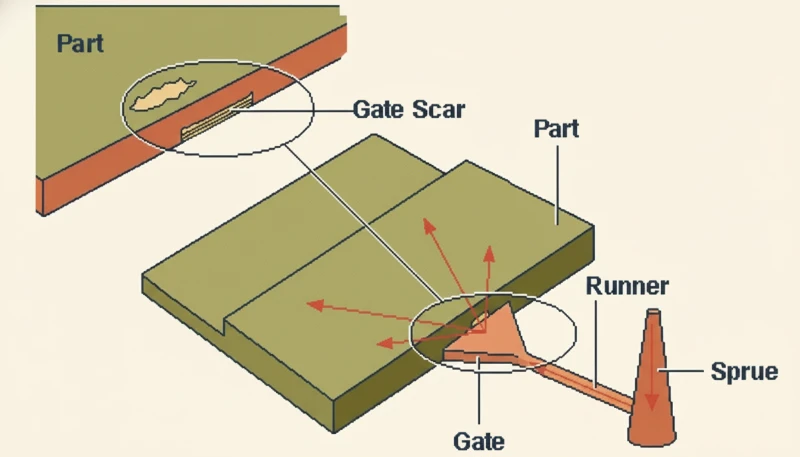

Injection molding production calculation — Production time estimation requires accounting for setup, cycle time, and planned downtime.

Production time = Setup time + (Order quantity ÷ Cavities × Cycle time) + Quality checks + Planned downtime

Example calculation for 100,000 parts:

Setup time: 4 hours
射出成形の生産時間：サイクルタイムとリードタイムガイド
Mold cavities: 4
Production shots: 100,000 ÷ 4 = 25,000 shots
Pure molding time: 25,000 × 30s = 750,000s = 208 hours
Efficiency factor (85%): 208 ÷ 0.85 = 245 hours ≈ 10.2 days (24h operation)
Add setup + QC: ~11 days total

Need a precise production timeline for your project? Contact ZetarMold for a detailed quotation including mold lead time and production scheduling.

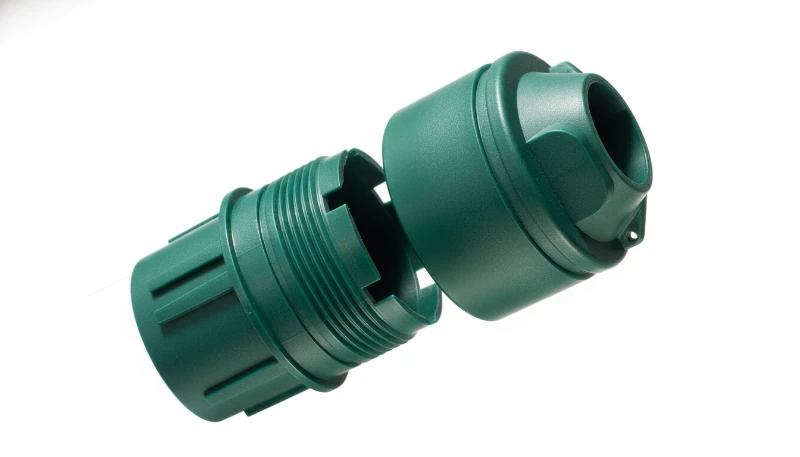

Green injection molded plastic parts — Accurate production time estimates help plan inventory and meet delivery commitments.

よくあるご質問

Precision injection mold tooling — Understanding cycle time components helps optimize production efficiency.

What is the fastest possible injection molding cycle time?

について thin-wall parts (0.5–1.0 mm) in fast-cooling materials like PP, cycle times as low as 3–6 seconds are achievable with optimized cooling and high-speed machines. Standard parts with 1.5–2.5 mm walls typically run 20–40 seconds.

How long does it take to change molds between production runs?

Mold changeover typically takes 2–8 hours including installation, water/hydraulic connections, and process setup. With quick mold change (QMC) systems, this can be reduced to 30–60 minutes. We use standardized mold bases to minimize changeover time.

Does part color affect production time?

Color changes require purging the barrel, which adds 15–60 minutes depending on the machine size and color contrast (light-to-dark is faster than dark-to-light). The actual molding cycle time is unaffected by color.

How does 金型流動解析 help predict production time?

Mold flow simulation predicts fill time, packing time, and cooling time with ±5–10% accuracy before the mold is built. This allows engineers to optimize gate location, cooling layout, and process parameters to minimize cycle time at the design stage.

What is the typical scrap rate in injection molding production?

Well-optimized processes achieve 0.5–2% scrap rates. During initial production ramp-up, scrap may reach 5–10% for the first 50–100 shots while the process stabilizes. At ZetarMold, we target less than 1% scrap for steady-state production.

概要

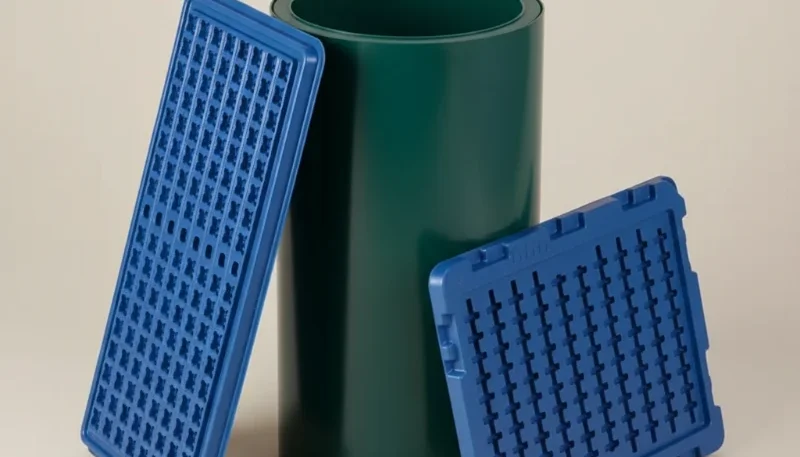

Injection molded plastic components — Efficient injection molding production combines optimized cycle times with streamlined project management.

Injection molding production time operates on two scales: the per-part cycle (15–60 seconds) dominated by cooling time, and the project timeline (4–12 weeks) driven by mold manufacturing. The most effective strategies for reducing production time focus on cooling optimization, proper machine selection, and automation. At ZetarMold, we engineer every project for both speed and quality — because in manufacturing, time is money, and quality is reputation.

Cycle time is the total elapsed time from the start of one injection molding shot to the start of the next, including injection, packing, cooling, mold opening, part ejection, and mold closing. ↩
Conformal cooling uses cooling channels that follow the contour of the part geometry — typically produced by 3D metal printing — to achieve more uniform and faster heat extraction than conventional straight-drilled cooling lines. ↩
Draft angle is the slight taper (typically 0.5–3°) applied to vertical walls of a molded part that allows it to release cleanly from the mold during ejection without scraping or sticking. ↩
