Introduction

The significance of the injection mold design process cannot be overemphasized. It plays a significant role in manufacturing high-quality injection molded parts and directly influences their functionality, aesthetics, and cost efficiency. To achieve optimal results, it’s essential to comprehend what factors contribute to part quality when injection molding and implement strategies to enhance your injection molding design process. This article offers helpful insights into these factors as well as practical tips for improving efficiency during this crucial stage – helping you produce better parts with improved efficiency!

Elements Affecting Part Quality in Injection MoldingPart quality plays an important role when it comes to injection molding processes, and these factors should not be overlooked.

II. Elements Affecting Part Quality in Injection Molding

Part quality plays an important role when it comes to injection molding processes, and these factors should not be overlooked.

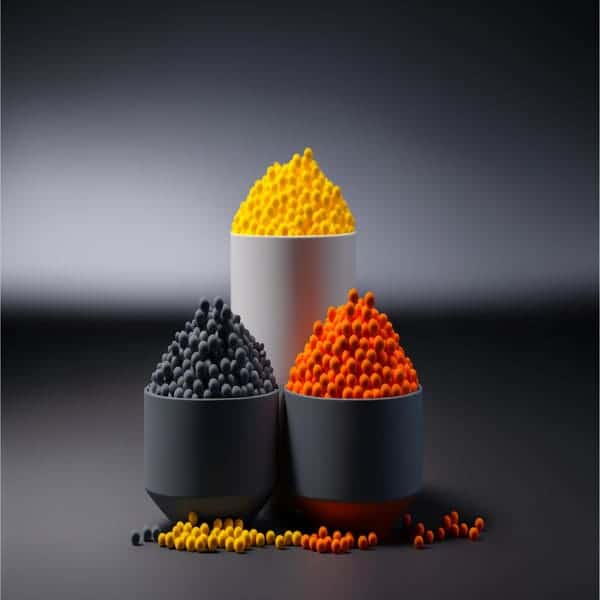

A. Material Selection

Selecting the ideal material for your injection molded part is essential in achieving desirable properties such as strength, flexibility, and resistance to environmental elements. Furthermore, a molten plastic choice affects the molding process itself since different materials require specific parameters to produce optimal results.

B. Wall Thickness and Uniformity

Uniform wall thickness is essential for the structural integrity and quality of injection molded part. When walls become inconsistent, it can lead to issues like warping, sink marks, and uneven cooling – all of which could result in defects in the final product.

C. Part Geometry

Complex part geometries can present challenges during injection molding. Simplifying the part geometry or using features such as support ribs can help minimize potential issues, leading to improved part quality and fewer production issues.

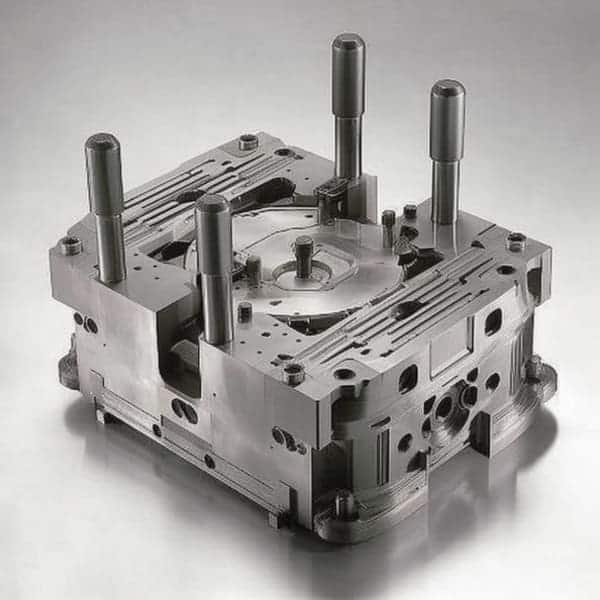

D. Mold Design and Parting Lines

An effective mold design is essential for producing high-quality plastic parts. Pay special attention to the parting line, as they can significantly impact the final product’s aesthetics and functionality. Properly designed parting lines minimize visible seams, reduce drag marks, and guarantee a clean release from the mold.

E. Cooling Process

The cooling process plays a vital role in the quality of plastic parts. Proper channel design and temperature control are essential to avoiding warping, shrinkage, and other defects. Furthermore, adequate cooling can lead to shorter cycle times and improved production efficiency.

III. Enhance Your Injection Mold Design Process

What steps can you take to enhance the design process for injection molds?

A. Optimize Wall Thickness and Consistency

To guarantee the quality of your injection molded parts, strive for consistent wall thicknesses throughout the design. This helps prevent warping, sink marks, and uneven cooling. Furthermore, using thinner walls reduces material usage and speeds up cycle times – leading to cost-savings at each step along the way.

B. Design Parts with Structural Integrity in Mind

Create parts that maintain their strength and durability without adding unnecessary material. Include features like support ribs or gussets to reinforce stressed areas without compromising wall thickness uniformity.

C. Select the Appropriate Material for Your Injection Molding Project

When selecting materials for injection molding projects, take into account factors like strength, flexibility, and environmental resistance. Do your due diligence on available options by researching material properties and consulting with suppliers or engineers so you can make an informed decision.

D. Consider Gate Location and Design

When designing the gate for injection molding, factors like gate type, size, and location must be taken into consideration to ensure even filling and minimize air entrapment potentials while minimizing visible gate marks. When positioning the gate in its cavity, consider factors like molding machine speed and material type when optimizing flow through the mold cavity.

E. Minimize Undercuts and Other Complex Features

Undercuts and other intricate features can complicate the molding process and drive up mold-building costs. To simplify part design, eliminate or minimize these elements whenever possible or consider using alternative molding techniques such as side-actions or collapsible cores to accommodate complex geometries.

IV. Key Factors Affecting Injection Molding Process

When designing injection molding parts, there are a few major elements to consider:

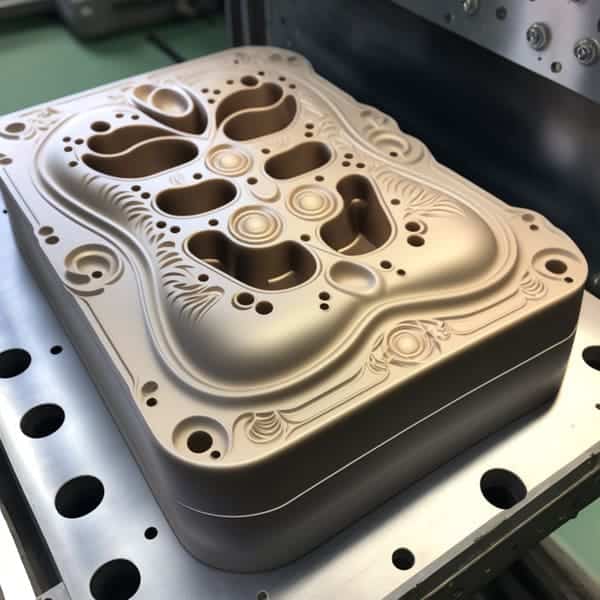

A. Mold Cavity and Surface Finish

The design and quality of a mold cavity have a significant effect on the final part’s appearance and performance. Surface roughness, desired cosmetic appearance, and mold release requirements must all be taken into account when designing this component. Smooth mold surfaces improve plastic flow, reduce defects risk, and facilitate part ejection; while textured ones create specific aesthetic effects or improve grip for users on the final part.

B. Injection Pressure and Mold Machine Parameters

Injection pressure is a critical factor that affects the quality of injection molded plastic. A proper injection pressure ensures that plastic fills the mold cavity completely and uniformly, eliminating short shots, voids, or uneven filling. Molding machine parameters like injection speed, hold pressure, and hold time also play an important role in this process; adjusting these values helps optimize it while minimizing defects while improving part quality. It’s essential to collaborate closely with machine operators and engineers to fine-tune these parameters according to each material type and mold design.

C. Cooling Time and Temperature Control

Proper cooling time and temperature control are essential for ensuring the quality of plastic parts. The cooling process directly affects a part’s dimensional stability, appearance, and structural integrity; if it takes too short a time for cooling to completely solidify it may warp or deform; conversely, an excessive cooling period leads to longer cycle times and reduced production efficiency.

Optimizing the cooling process is critical to ensure uniform and efficient cooling throughout the mold. Consistent temperature control during cooling helps avoid defects such as warping, shrinkage, or sink marks. Collaborate with engineers and machine operators to establish ideal cooling time and temperature settings for your specific injection molding project.

D. Cycle Time and Production Efficiency

Cycle time is an essential factor that affects production efficiency and costs. Injection molding manufacturers strive to reduce cycle times without compromising part quality, so factors like injection time, cooling time, and mold opening/closing times all play a role in creating this overall timeline.

When optimizing cycle time, consider the following:

1. Cut down on injection time by optimizing speed and pressure settings.

2. Construct efficient cooling channels that offer even cooling, cutting down on cooling time while ensuring proper part solidification occurs.

3. Reduce mold opening and closing times by using appropriate actions and minimizing travel distances.

Balancing these factors will result in shorter cycle times, higher production efficiency, and cost-effective manufacturing processes.

V. Design Guidelines for Injection Molds

What factors should you take into account when creating your injection mold design?

A. Draft Angles and Part Release

Draft angles are essential for the smooth ejection of injection molded parts from their molds. These slight taper or angle applied to vertical walls of the mold helps release parts by reducing surface contact and friction between them and the mold.

When designing your injection mold, be sure to adhere to these draft angle guidelines:

Draft angles must be applied to all vertical surfaces in the mold, including the part’s main body, cores, and inserts. As a general guideline, use at least a 1-degree draft angle per side; however, this may vary depending on the material, surface finish, and part geometry.

Draft angles should be larger for textured surfaces or parts with deep features, as these require additional clearance to release from the mold without damage.

By designing your mold with proper draft angles, you can reduce part sticking, protect the mold from wear, and boost production efficiency

B. Ejector Pin Placement

Ejector pins are essential in the smooth ejection of injection molded parts from their mold cavity after cooling and solidifying. Proper placement of these small cylindrical rods helps protect parts, reduce cycle time, and ensure consistent part quality throughout the ejecting process.

When designing your injection mold, take into account the following ejector pin placement guidelines:

Place ejector pins on flat surfaces or areas where they will not affect the part’s aesthetic or functionality. Avoid placing pins in critical dimensions or cosmetic regions, as this could leave visible marks or blemishes.

Distribute ejector pins evenly to provide even pressure during part ejection, helping prevent warping or distortion.

Make sure the size and number of ejector pins are adequate to handle the required force without damaging the part during its removal.

If possible, position ejector pins in areas that will be hidden during assembly or on surfaces that will be machined or finished after molding.

By carefully considering ejector pin placement in your mold design, you can achieve smooth part ejection, reduce part defects and enhance the quality of your injection molded parts.

C. Support Ribs and Thick Wall Sections

Designing parts with proper support structures and avoiding thick wall sections is essential for maintaining part quality and minimizing potential defects in injection molded parts. Support ribs and gussets are structural reinforcements that add extra strength without increasing overall wall thickness.

When designing an injection mold, take into account the following guidelines for support ribs and thick wall sections:

Support ribs can be used to reinforce flat surfaces or areas that may warp or bend due to stress. They help maintain the structural integrity of a part while conserving material usage and guaranteeing consistent wall thickness.

When designing support ribs for parts, the thickness should usually fall between 50%-70% of the main wall thickness to avoid sink marks and uneven cooling.

Position the ribs strategically throughout your part design without creating thick sections that could cause cooling issues, sink marks, or longer cycle times.

Make sure the alignment of support ribs is correct to promote even material flow and avoid air entrapment or voids.

Avoid designing parts with thick wall sections, as they can lead to defects such as sink marks, warping, and extended cooling times. If thick sections are necessary, consider using a core-out design or adding gussets to minimize material thickness while still ensuring strength.

By including support ribs and avoiding thick wall sections in your mold design, you can produce strong, high-quality injection molded parts while minimizing potential defects and cutting down on material usage.

D. Material Options and Cost Effectiveness

When selecting materials for injection molded parts, it’s essential to take into account both performance requirements and cost-effectiveness. There is a vast array of material choices available in injection molding – each with unique properties that affect final part strength, flexibility, and aesthetic appearance.

When designing an injection mold, take into account the following guidelines for material choices and cost efficiency:

Evaluate multiple material options to find the most suitable option for your application. Take into account factors like performance requirements, part geometry, and production costs when making your choice.

Collaborate closely with material suppliers or engineers to obtain material data sheets and gain an understanding of each material’s unique properties and processing characteristics.

Explore recycling options for materials to minimize waste production and cut down on material costs.

Optimizing your mold design can maximize material efficiency and minimize consumption. This includes creating parts with consistent wall thickness, including support ribs, and avoiding thick wall sections.

Utilize cost-effective materials such as pre-hardened steel to reduce mold-building expenses while still guaranteeing quality.

By carefully considering material options and cost-effectiveness in your injection mold design, you can optimize your production process, minimize waste production, and achieve higher cost efficiency for your injection molding project.

VI. Conclusion

Effective injection mold design is critical for producing high-quality and cost-effective injection molded parts. By carefully considering factors like material choice, wall thickness/uniformity, mold design, and cooling process during the injection molding process, you can optimize the efficiency of your parts production while improving their quality at minimal expense.

Design tips such as optimizing wall thickness, paying attention to gate location and design, and using proper ejector pin placement can further improve part quality and reduce manufacturing costs. Furthermore, working together with engineers and machine operators to fine-tune the injection molding process can increase production efficiency while decreasing waste generation.

Overall, manufacturers can achieve optimal results through effective injection mold design and continuous improvements to their injection molding process. This enables them to consistently produce high-quality, cost-effective parts that satisfy customer demands.
