Custom Injection Molded Preforms Manufacturer
OEM/ODM custom PET preforms & injection molding services. We supply precision-engineered, high-transparency bottle preforms with zero-defect wall thickness. Contact China’s top factory for samples!
Core Capabilities
Industry-leading technical expertise and manufacturing infrastructure
Hassas Üretim
Advanced injection molding with ±0.1mm dimensional tolerance and multi-cavity molds for high-volume production.
Malzeme Çok Yönlülüğü
Support for Virgin PET, rPET (recycled), and PP with custom color matching and UV protection additives.
Rapid Delivery
Quick turnaround from design to production: 5-7 days for mold design, 30-45 days for custom tooling.
Kalite Güvence
ISO 9001 certified with 100% CCD vision inspection, FDA compliance, and FSSC 22000 certification.
Resources for The Complete Guide to Custom Injection Molded Preforms

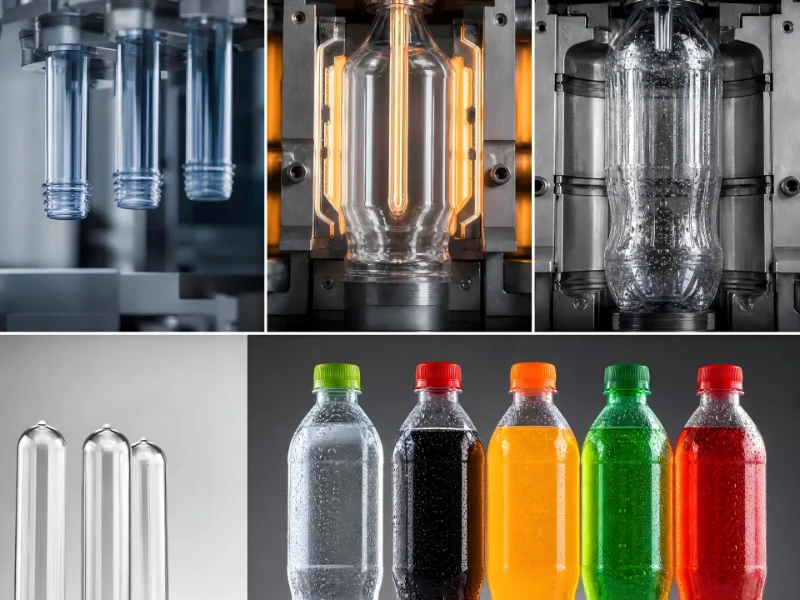

What Is a PET Preform and How Does the Process Work?
A PET preform is the intermediate test-tube-shaped component that is injection molded and subsequently stretch-blow molded into a final plastic bottle.
Our advanced manufacturing setup utilizes state-of-the-art injection molding systems to convert raw Polyethylene Terephthalate (PET) resin into high-precision preforms through a strictly monitored thermal and mechanical process:
- Resin Dehumidification: PET resin is dried at 160°C to 180°C for 4–6 hours to lower moisture levels below 0.005%, preventing hydrolytic degradation.
- Plasticization & Injection: The dried resin is melted under precise screw speed and back-pressure, then injected at high speed into multi-cavity water-cooled molds.
- Rapid Cooling: Specialized cooling channels inside the core and cavity quickly solidify the melt, minimizing crystallinity to ensure maximum optical clarity for successful downstream blowing.
What Are the Typical Applications of Custom Injection Molded Preforms?
We engineer custom preforms to fit the distinct performance, barrier, and aesthetic requirements of diverse market segments:
1. Beverage Packaging:
High-strength preforms for Carbonated Soft Drinks (CSD) resisting internal pressure, alongside dedicated options for hot-fill juice bottles and 5-gallon water jugs.

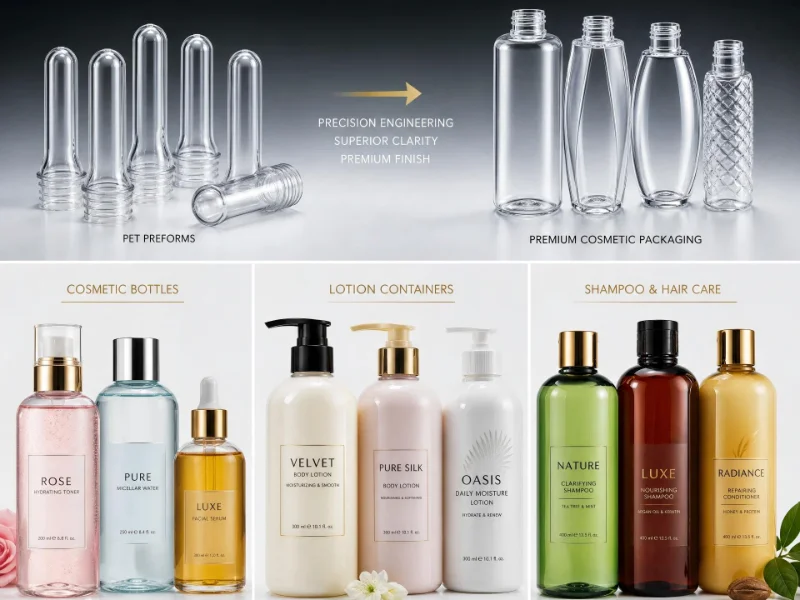

2. Cosmetics & Personal Care:
Thick-wall, high-clarity preforms customized for lotion pumps, premium shampoo bottles, and crystal-clear cosmetic jars.

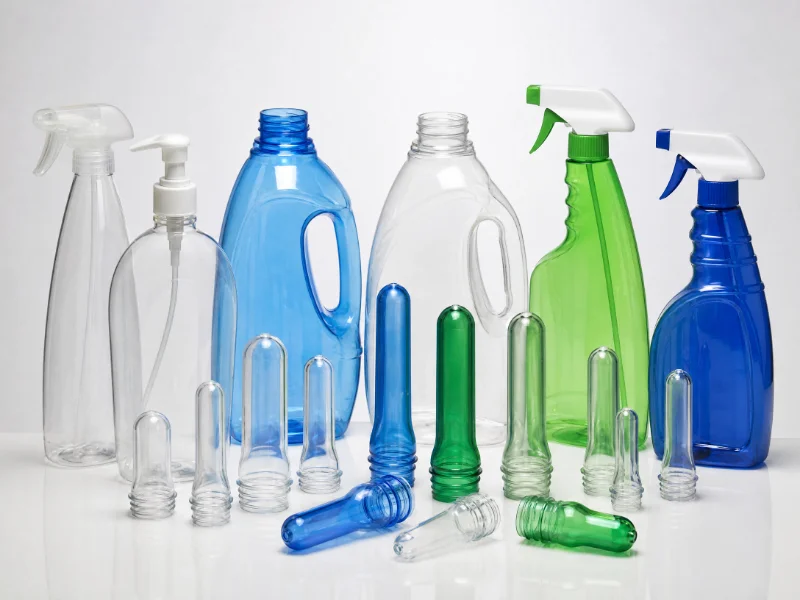

3. Home & Consumer Chemical:
Robust, chemically resistant preforms compatible with aggressive surfactants, trigger sprays, and household cleaners.

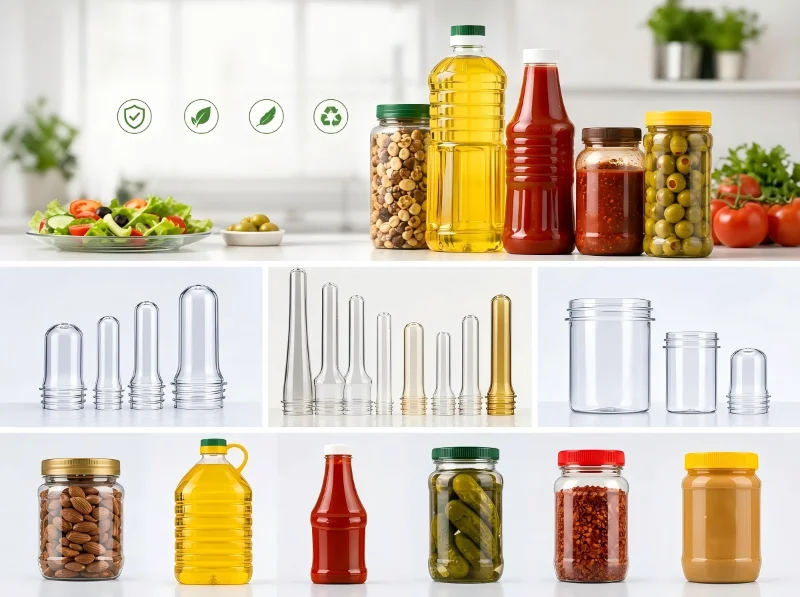

4. Food & Edible Oil:
Wide-mouth preforms tailored for high-volume peanut oil containers, condiment jars, and wide-neck food storage.

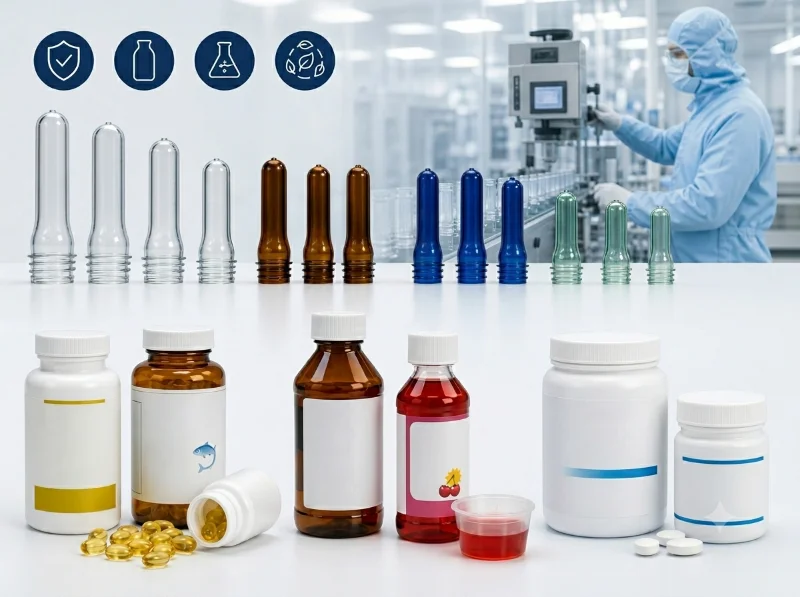

5. Pharmaceutical Packaging:
Produced with medical-grade, compliant resins under strict hygiene protocols for cough syrups, supplement bottles, and wellness packaging.
Can You Design Custom Preforms for Specific Bottle Geometries?
Yes. We provide complete end-to-end co-development services, transforming your final bottle blueprint into an optimized preform design.
Our engineering team utilizes advanced CAD/CAE software to run blow-molding simulations. We calculate the exact Axial and Radial Stretch Ratios required for your specific bottle geometry.
- Wall Thickness Optimization: We strategically distribute material into the preform profile to ensure complex bottle contours (like square edges, ergonomic handles, or deep grip lines) maintain excellent top-load strength and uniform wall thickness.
- Prototype Sampling: Before moving to multi-cavity mass production, we offer single-cavity prototyping and 3D-printed mockups to validate your bottle’s structural integrity.
PET vs. rPET vs. PP Preforms: How to Choose the Right Material?
Selecting the correct polymer dictates your product’s shelf life, sustainability footprint, and unit economics. We process a versatile range of materials:
| Mülkiyet | Virgin PET | rPET (Recycled) | PP (Polipropilen) |
|---|---|---|---|
| Yoğunluk (g/cm³) | 1.38 – 1.40 | 1.35 – 1.38 | 0.90 – 0.91 |
| Çekme Dayanımı (MPa) | 55 – 75 | 50 – 70 | 30 – 40 |
| Heat Deflection Temp (°C) | 70 – 80 | 65 – 75 | 90 – 100 |
| Geri dönüştürülebilirlik | 100% Recyclable | 100% Recyclable | 100% Recyclable |
| Key Characteristics & Advantages | Ultimate optical clarity, excellent CO2 and O2 barrier properties, high mechanical strength. | 100% circular economy compliant, reduces carbon footprint, available in food-grade PCR blends (30% to 100%). | Superior heat resistance (up to 120°C), lower density, excellent moisture barrier, chemically inert. |
| Ideal Target Applications | Carbonated beverages, mineral water, high-speed automated filling lines. | Eco-conscious brands, sustainable beverage and cosmetics packaging. | Hot-fill products, retort sterilization, flexible squeezable cosmetic bottles. |
Virgin PET
Crystal Clear
Clarity:
Exceptional clarity and gloss
Güçlü:
High impact strength
Food Safety:
Excellent | Widely approved
Geri dönüştürülebilirlik:
100% Recyclable
Isı Direnci:
Up to 60°C / 140°F
Best for:
Premium packaging, visibility critical
rPET (Recycled PET)
Slightly Tinted
Clarity:
Good clarity with slight tint
Güçlü:
Comparable to virgin PET
Food Safety:
Approved for food contact
Sustainability:
Made from recycled content
Isı Direnci:
Up to 60°C / 140°F
Best for:
Sustainable packaging solutions
PP (Polipropilen)
tıbbi sınıf plastikler
Appearance:
Opaque with various color options
Güçlü:
Excellent chemical resistance
Food Safety:
Excellent | Widely approved
Geri dönüştürülebilirlik:
100% Recyclable
Isı Direnci:
Up to 100°C / 212°F
Best for:
Durability, high heat applications
Can You Manufacture PET Preforms in Custom Colors?
Absolutely. Brand identity relies heavily on color consistency. We offer precise color-matching services via advanced color masterbatches and liquid colorants:
- UV Protection Additives: For light-sensitive products (like dairy, juices, or specific cosmetics), we blend active UV blockers into the colored melt to extend shelf life.
- Spectrophotometer Validation: Every production lot undergoes strict colorimetry testing. We guarantee a color variance tolerance of ΔE < 1.0, ensuring flawless batch-to-batch consistency on global retail shelves.
What Factors Affect PET Preform Performance During Blow Molding?
A premium bottle starts with an uncompromised preform. We mitigate downstream blowing failures by rigidly controlling the critical chemical properties of the resin:
Intrinsic Viscosity (IV) Stability
We preserve the resin’s IV level during injection. A drop in IV causes wall-thinning and bottle bursting during high-pressure blow molding (30–40 bar).
Acetaldehyde (AA) Level Suppression
Through optimized low-heat profiles and gentle screw shearing, we minimize AA generation, preventing any off-taste or odor alteration in sensitive mineral water products.
Zero Moisture Blistering
Advanced resin drying eliminates internal micro-bubbles and surface silver streaks, which would otherwise become weak spots and cosmetic defects in the blown bottle.
OEM/ODM Custom PET Preforms & Injection Molding Services
Looking for high-quality custom injection molded preforms? As a leading PET preform manufacturer in China, we offer food-grade, custom-weight bottle preforms with global shipping. Get a free quote today!
Resources for The Complete Guide to Custom Injection Molded Preforms
How Do You Ensure Preform Neck Precision for Leak-Proof Cap and Pump Fitment?
The neck finish is the most critical zone of a preform; it never changes shape during the blowing process. Any deviation leads to fluid leakage or capping line jams.
We support all major industry-standard neck finishes—including PCO 1810 / 1881, 28/410, 30/25, 38mm, and Bericap—engineered with micro-level accuracy:
- Dimensional Tolerance: Thread diameters and heights are maintained strictly within ±0.1mm.
- In-Line CCD Vision Inspection: Automated optical sorting systems scan 100% of the production line, catching and ejecting any preform with ovality issues, flashes, or thread defects before packaging.
How Do You Ensure High Cosmetic Quality and Consistent Gate Finish?
For high-end cosmetics and consumer liquids, visual purity is non-negotiable. We maintain a dust-controlled manufacturing environment and enforce strict quality metrics to eliminate typical molding flaws:
Defect Elimination
Our process settings prevent black spots, scuffs, scratches, and material shearing.
Pristine Optical Clarity
Balanced cooling rates prevent thermal crystallization (hazing/whiteness) in the preform body.
Perfect Gate Geometry
We ensure a clean, centered injection gate that guarantees uniform polymer stretching when the stretch rod makes contact during blowing.
How Do Hot Runner Systems Help Eliminate Preform Gate Vestige?
Older molding setups leave a long plastic nub (gate vestige) at the bottom of the preform, which causes base puncture during blowing and creates uneven standing bases.
We use high-end, Valve-Gated Hot Runner Systems (incorporating world-class components like Husky and Mold-Masters):
- Mechanical Pin Shut-Off: Cylindrical valve pins physically seal the gate orifice at the end of each injection cycle.
- Flawless Gate Flush: This system limits the gate vestige to a height of less than 0.5mm, delivering a perfectly smooth, flat preform base that prevents downstream line tripping and optimizes resin consumption.
How Does Preform Mold Cavity Count (48 vs. 72 vs. 96-Cavity) Affect Your Unit Price?
Balancing capital expenditure (CapEx) against operational savings is crucial for procurement managers. The selection of mold cavitation directly shapes your final unit economics:
1. High-Cavitation (72 to 96-Cavity):
Designed for multi-million annual contract volumes. High cavitation minimizes cycle times and drastically reduces energy and labor overhead per part, offering the lowest possible unit price.
However, it demands a higher upfront tooling investment and is typically recommended for large-scale PET preform production where stable, long-term demand can justify the initial cost.
2. Medium-Cavitation (24 to 48-Cavity):
The ideal choice for mid-sized procurement or highly specialized custom shapes. It drastically lowers initial Mold Amortization costs, ensuring a faster ROI for lower-volume production schedules.
This range provides a practical balance between tooling cost, production capacity, and unit price, making it suitable for companies with growing demand or multiple product variations.
3. Low-Cavitation (1 to 24-Cavity):
For startups, small-batch production, new product launches, or customers with limited initial demand, lower-cavity preform molds provide a more cost-effective entry solution.
Although the output per cycle is lower compared with high-cavitation molds, they require significantly less upfront tooling investment and offer greater flexibility for product testing, market validation, and customized production.
At Zetar Mold, we can provide preform molds with various cavity configurations based on your production requirements — from low-cavity solutions for smaller production volumes to high-cavitation systems for millions of preforms annually. Our engineering team will help evaluate your expected output, investment budget, and future growth plans to recommend the most suitable cavity count.
IBM vs. ISBM: Which Blow Molding Process Is Best for Your Plastic Bottle Project?
Understanding the fabrication route helps align your product specifications with the right factory asset:
ISBM (Injection Stretch Blow Molding)
- 2-Step Process
Preforms are injection-molded, cooled, and later reheated to be blown. Highly recommended for mass-production beverage and high-volume consumer goods.
The two-step mechanical stretching induces biaxial orientation, providing maximum drop-resistance, thin walls, and unbeatable glass-like clarity.
IBM (Injection Blow Molding)
- 1-Step Process
The material transfers directly from the injection station to the blowing station while still hot. Perfect for small-capacity pharmaceutical vials, wide-neck cream jars, and intricate cosmetic packaging requiring zero scuff marks and ultra-precise neck finishes.
Frequently Asked Questions (FAQs)
What information do you need to quote a custom PET preform mold?
To provide an accurate quotation, we usually need your preform drawing, 3D model, neck finish specification, preform weight, material requirements, and expected production volume.
If you do not have a complete design yet, our engineering team can help review your requirements and provide suggestions regarding preform structure, wall thickness, cavity number, and mold configuration.
Can you manufacture PET preform molds with different cavity counts?
Yes. We provide custom PET preform molds with different cavity configurations according to your production requirements.
High-cavitation molds such as 48, 72, and 96 cavities are suitable for high-volume production, while smaller cavity molds are available for startups, new product development, trial production, and lower-volume applications.
Our engineers will recommend the most suitable cavity number based on your annual output, investment budget, and expected return on investment.
Do you manufacture standard or only custom PET preforms?
We specialize in custom PET preform solutions based on customer requirements.
We can manufacture preform molds for different bottle applications, including beverage bottles, water bottles, cosmetic containers, food packaging, and industrial packaging.
Custom solutions can include different neck finishes, weights, dimensions, colors, and performance requirements.
Hangi PET preform kalıp malzemelerini kullanıyorsunuz?
Kalıp malzemelerini üretim gereksinimlerine, beklenen ömre ve müşteri bütçesine göre seçiyoruz.
Yaygın malzemeler, mükemmel aşınma direnci, boyutsal stabilite ve uzun vadeli üretim güvenilirliği sağlamak için kalıp boşlukları, göbekler ve takımlar için yüksek kaliteli sertleştirilmiş çelikleri içerir.
Yüksek çıkışlı preform kalıpları için, sürekli üretim sırasında tutarlı kaliteyi korumak amacıyla hassas işleme, soğutma verimliliği ve bileşen dayanıklılığına odaklanıyoruz.
Kalıp üretiminden önce PET preform tasarımımı optimize etmeme yardımcı olabilir misiniz?
Evet. Mühendislik ekibimiz kalıp üretimi öncesinde Üretim için Tasarım (DFM) analizi sağlar.
Şu gibi kritik faktörleri gözden geçirebiliriz:
- Preform duvar kalınlığı dağılımı
- Malzeme akış dengesi
- Soğutma sistemi tasarımı
- Büzülme kontrolü
- Enjeksiyon performansı
- Şişirme kalıplama uyumluluğu
Bu, üretim sorunlarını azaltmaya ve üretim sonrası maliyetli kalıp değişikliklerinden kaçınmaya yardımcı olur.
Özel bir PET preform kalıbı için tipik teslim süresi nedir?
Teslim süresi, kalıp karmaşıklığına, boşluk sayısına ve proje gereksinimlerine bağlıdır.
Genellikle, özel bir PET preform kalıbı tasarım, hassas işleme, montaj, test ve numune doğrulaması için birkaç hafta gerektirir.
Proje detaylarınızı aldıktan sonra, özel gereksinimlerinizi değerlendirip detaylı bir üretim programı sağlayabiliriz.
Seri üretim öncesinde PET preform numuneleri sağlayabilir misiniz?
Evet. Kalıp tamamlandıktan sonra, kalite doğrulaması için deneme numuneleri sağlayabiliriz.
Numune değerlendirmesi şunları içerebilir:
- Boyutlar kontrolü
- Ağırlık doğrulama
- Görünüm kontrolü
- Boyun bitiş ölçümü
- Şişirme kalıplama sürecinizle uyumluluk testi
Bu, tam ölçekli üretimden önce preformun üretim gereksinimlerinizi karşılamasını sağlar.
Sadece PET preform kalıpları mı yoksa tam üretim çözümleri mi tedarik ediyorsunuz?
Biz öncelikle özel PET preform kalıp üretiminde uzmanlaşmış durumdayız.
Proje gereksinimlerinize bağlı olarak, üretim kapasitemiz aracılığıyla enjeksiyon kalıplama üretimi, prototip doğrulama ve ilgili plastik üretim çözümlerini de destekleyebiliriz.
Özel PET preform kalıpları için minimum sipariş miktarı nedir?
Kalıp projeleri için sabit bir minimum miktar bulunmamaktadır.
Uygun kalıp konfigürasyonu, üretim hedeflerinize bağlıdır. Daha az boşluklu kalıplar, yeni bir ürün hattına başlayan şirketler için pratik bir seçim olabilirken, yüksek boşluklu kalıplar büyük ölçekli üretime daha uygundur.
Beklenen çıktınızı mühendislerimizle paylaşın, size en ekonomik çözümü önereceğiz.
Özel PET preform kalıp projeme nasıl başlayabilirim?
Bize PET preform çiziminizi, 3D dosyanızı veya temel ürün bilgilerinizi göndermeniz yeterli.
Mühendislik ekibimiz gereksinimlerinizi inceleyecek, üretilebilirliği onaylayacak, uygun kalıp çözümünü önerecek ve bir teklif sağlayacaktır.
