Injection Molding Process Validation: Complete Guide for Engineers

What Is Injection Molding Process Validation?

You just got a call from your customer’s quality team. They want to see your validation protocol before they approve the first production run. If you can’t produce documented evidence that your process is under control, the shipment stops. That’s not a hypothetical — it happens every week in medical device and automotive supply chains.

Injection molding process validation is a structured, documented method for proving that your molding process consistently produces parts that meet every specification — dimensional, material, cosmetic, and functional. It’s not a one-time test. It’s evidence that your process holds up run after run, shift after shift.

The core framework is IQ/OQ/PQ used across the injection molding industry — ¹, ¹, and ¹. Each stage builds on the previous one. Skip one, and the whole validation collapses under audit scrutiny.

Here’s the bottom line: validation costs money upfront, but a single rejected lot or customer audit failure costs ten times more. In our experience at ZetarMold, a well-prepared validation protocol pays for itself within the first production run by catching process drift before it creates scrap.

Why Does Process Validation Matter?

Validation matters because inconsistency is invisible until it’s expensive. A part that measures 10.02 mm today and 10.08 mm next week looks fine to the naked eye — but it’s a tolerance failure waiting to happen. Without validation data, you won’t know until the customer’s incoming inspection catches it.

For regulated industries, validation isn’t optional. The FDA requires it under 21 CFR Part 820 for medical devices. IATF 16949 demands it for automotive components. If you’re supplying parts into these markets and you can’t produce validation records, you’re not compliant. Period.

But even if you’re not in a regulated space, validation still pays off. Here’s what we’ve seen on the factory floor at ZetarMold: projects that skip validation typically show 3–5× higher scrap rates in the first three months compared to validated processes. The pattern is consistent — unvalidated processes drift, and nobody notices until the scrap bin fills up.

The financial argument is straightforward. A typical validation for a single-cavity mold runs $3,000–$8,000 depending on complexity. A single rejected shipment of 10,000 parts at $2.50 each costs $25,000 in remakes, plus shipping, plus the trust damage with your customer. The math speaks for itself.

Beyond cost, validation builds customer confidence. When a buyer knows your process is validated with documented Cpk values and proven parameter windows, they trust your production capability. That trust translates into larger orders, longer contracts, and fewer incoming inspection requirements on future shipments. It becomes a competitive advantage, not just a compliance exercise.

What Are the Three Stages of Process Validation?

The IQ/OQ/PQ framework has been the industry standard since the 1980s. Each stage answers a specific question. IQ asks: is the machine installed correctly? OQ asks: does it work across its operating range? PQ asks: can it produce acceptable parts consistently over time?

Stage 1: Installation Qualification (IQ)

Installation Qualification verifies that the equipment is set up exactly as specified. This means checking the machine’s utilities (power, water, air), confirming software versions, verifying calibration certificates, and documenting every connection.

In practice, IQ is a checklist-driven process. You walk through every item on the installation specification and document that it matches reality. Common failures at this stage include incorrect water flow connections (which affect cooling), wrong voltage settings, and missing calibration records on ancillary equipment like dryers and loaders.

A proper IQ protocol includes: equipment identification (model, serial number, firmware version), utility verification (voltage, water pressure, air pressure), safety system checks (ejector stroke limits, emergency stops), and environmental conditions (temperature, humidity of the molding area). Each item gets a pass/fail result with inspector sign-off.

Don’t underestimate IQ. We’ve seen projects delayed by weeks because someone skipped verifying the thermolator connections and the mold ran with inadequate cooling during OQ. The resulting data was worthless because the process conditions weren’t representative. Always complete IQ before touching the molding machine for any process development work.

Stage 2: Operational Qualification (OQ)

Operational Qualification proves that the process works across its entire intended operating range. This is where you deliberately push parameters to their limits — high and low melt temperatures, fast and slow injection speeds, minimum and maximum packing pressures — to map out the process window.

The output of OQ is a documented process window. You should know, with data, that your part will be acceptable when melt temperature is between 220°C and 250°C, injection speed is 50–80 mm/s, and holding pressure is 800–1200 bar. Every parameter has a proven upper and lower limit.

The most efficient way to run OQ is using a ² approach. Instead of testing one variable at a time (which requires hundreds of runs), a fractional factorial DOE can map critical interactions in 16–32 runs. For a typical injection molding process with 4–6 critical parameters, this takes 2–3 days on the machine.

During OQ, document everything. Machine settings, ambient conditions, material lot numbers, cycle times for every shot, and all measurement results. This data becomes your baseline reference for the entire production life of the mold. If quality issues arise two years from now, you’ll need this OQ data to diagnose whether the process has shifted.

One common mistake during OQ is testing parameters in isolation. Melt temperature affects viscosity, which changes injection speed requirements, which shifts packing behavior. If you test melt temperature alone with all other parameters fixed, you miss the interaction effects. That is why DOE matters — it captures these multi-variable relationships in a single experimental design.

Another practical tip: run your OQ on the same material lot you plan to use for PQ. Different resin lots can have viscosity variations of 10 to 15 percent, which shifts the process window enough to invalidate your OQ results. We always confirm material lot consistency before starting any OQ campaign at our Shanghai facility.

Stage 3: Process Qualification (PQ)

Process Qualification is the final proof. You run the process at its nominal settings over multiple consecutive runs — typically three separate production runs on different days, shifts, or operators — and demonstrate that every part meets specification.

PQ is not about finding the process window. That’s OQ’s job. PQ is about proving stability. If you set the machine to the center of your validated window and run 300 parts across three different days, and all 300 pass inspection, you have statistical evidence that your process is stable.

The statistical tool for PQ is capability analysis. You calculate Cpk (process capability index) for every critical dimension. A Cpk of 1.33 means your process fits within the tolerance band with room to spare. Below 1.0 means you’re producing out-of-spec parts regularly. Most automotive OEMs require Cpk ≥ 1.67 for critical dimensions.

At ZetarMold, we run PQ on our 45 injection molding machines ranging from 90T to 1850T. Our standard protocol requires three consecutive successful runs with Cpk ≥ 1.33 on all critical dimensions before we consider a process validated and ready for production release. Our 8 senior engineers, each with 10+ years of experience, review every PQ package before sign-off.

How Do You Verify Injection Molded Parts?

Verification is the measurement side of validation. While validation proves the process is capable, verification proves that the actual parts coming off the machine meet specifications. The two work together — validation without verification is just paperwork.

The four core verification methods are dimensional checks, visual inspection, material property testing, and functional testing. Each addresses a different failure mode, and skipping any of them leaves a blind spot in your quality system.

Dimensional verification uses CMM (Coordinate Measuring Machine) for tight-tolerance features and calipers or optical comparators for general dimensions. A proper first-article inspection report covers every dimension on the drawing — not just the ones that look easy to measure.

Visual inspection catches cosmetic defects: flash, sink marks, splay, color variation, and weld lines. In our facility, we use trained inspectors who check every part against an approved visual standard with defined accept/reject criteria. Subjective ‘it looks fine’ judgments don’t survive an audit.

Material testing includes melt flow index (MFI) verification, tensile testing, and hardness measurement. For medical and automotive parts, material certification (Certificate of Analysis from the resin supplier) is required for every lot — not just the first one.

Functional testing confirms the part works in its intended application. This might be a snap-fit engagement force test, a leak test for fluid-handling components, or an electrical continuity test for connector housings. The test method should replicate actual use conditions.

At ZetarMold, our six-step quality control process covers every stage from incoming material inspection (IQC) through final outgoing inspection (OQC). With 10+ QC specialists and a full suite of measurement equipment including CMM, profile projectors, and hardness testers, we provide the verification data that supports your validation package.

What Is the Difference Between Mold Qualification and Process Validation?

This question comes up in almost every audit. Mold qualification focuses on the tool itself — does the mold produce parts to spec? Process validation is broader — it proves the entire system (machine, mold, material, operator, environment) works together consistently.

You can qualify a mold on a bench-top machine in a lab. But process validation has to happen on the production equipment, in the production environment, with production operators and production materials. That’s the key distinction that many engineers overlook when planning their validation timeline.

In practice, mold qualification is a subset of process validation. You verify the mold first (steel hardness, surface finish, cavity dimensions, ejection system), then validate the process around it. If a part fails, mold qualification tells you whether to fix the tool or adjust the process.

Mold Qualification vs Process Validation

Aspect	Mold Qualification	Process Validation
Scope	Tool only	Machine + mold + material + environment
When	After mold build	Before production release
Runs needed	T1 samples (50–100 parts)	3+ consecutive production runs
Statistical requirement	Dimensional report	Cpk ≥ 1.33 on critical dims
Re-trigger	Mold modification or rework	Material change, machine change, or process drift
Ownership	Tool shop / mold maker	Production quality team

What Parameters Should You Validate?

Not every parameter needs validation. Focus on the ones that directly affect part quality. Over-validating wastes machine time; under-validating creates risk. The trick is knowing which parameters are critical for your specific part geometry and material.

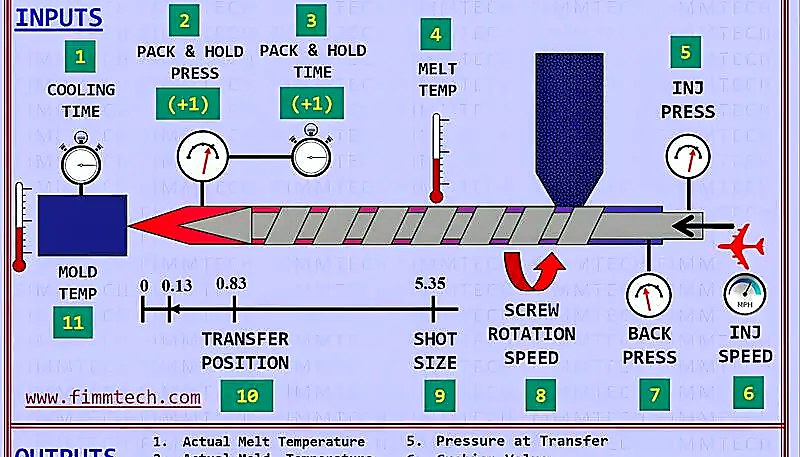

The critical parameters for most injection molding processes are: melt temperature, injection speed, holding pressure, holding time, cooling time, and mold temperature. These six parameters control 90% of part quality outcomes across most applications.

Here’s a practical approach we use at ZetarMold: run a screening DOE with these six parameters at two levels each. The DOE results tell you which parameters are statistically significant for your specific part. Typically, 2–3 parameters dominate quality. Those are the ones you validate rigorously. The rest get standard operating ranges.

For precision parts with tight tolerances (±0.05 mm or tighter), packing pressure and melt temperature are almost always the dominant factors. For thin-wall parts, injection speed and mold temperature take over. For structural parts with thick sections, cooling time and holding pressure are critical.

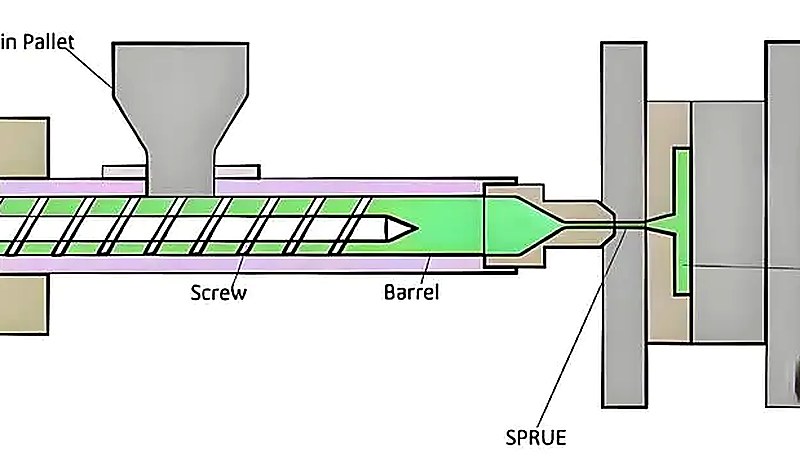

Don’t forget the secondary parameters. Barrel temperature profile (not just the set point, but the actual front/center/rear zone temperatures), back pressure, screw speed, and decompression distance all affect consistency. Document them during validation, even if you don’t statistically test them.

Also validate your auxiliary systems. Dryer performance (dew point and residence time) affects material viscosity, which shifts every parameter downstream. Mold temperature controllers need stable output — a thermolator that fluctuates ±5°C will create dimensional variation that no amount of machine parameter tuning can compensate for.

How Long Does Process Validation Take?

For a typical single-cavity mold with moderate complexity, the full IQ/OQ/PQ cycle takes 5–10 business days. IQ is usually 1 day (equipment verification and documentation). OQ takes 2–4 days depending on the number of parameters and DOE runs. PQ takes 2–3 days for the three consecutive production runs plus measurement and data analysis.

Multi-cavity molds take longer because you need to validate each cavity individually and demonstrate cavity-to-cavity consistency. An 8-cavity mold can take 15–20 days for full validation. The measurement time is the bottleneck — CMM inspection of all critical dimensions across multiple cavities and multiple runs adds up quickly.

Here’s a rule of thumb from our 20+ years of operation at ZetarMold: plan for validation to take 10–15% of the total mold build timeline. If your mold takes 8 weeks to build, expect 4–6 days of validation. If you’re rushing, you can compress it, but you’ll sacrifice statistical confidence.

The biggest time risk is measurement. If your CMM lab is backlogged, PQ data can take an extra 2–3 days to process. Plan measurement capacity in advance, especially if you’re validating multiple parts simultaneously. Our 120+ production team and dedicated QC staff help us turn around validation packages efficiently.

What Documentation Do You Need?

The validation package is the final deliverable. Without proper documentation, validation didn’t happen — at least not in the eyes of an auditor. Here’s what a complete package includes.

The mold design validation master plan outlines the scope, responsibilities, acceptance criteria, and schedule. Think of it as the project plan for validation. It should be approved before any validation work begins.

IQ protocol and report documents every verified installation item with pass/fail results, signatures, and dates. OQ protocol and report includes the DOE design, parameter ranges tested, and resulting process windows with supporting data. PQ protocol and report shows the consecutive run results with capability analysis (Cpk calculations) for all critical dimensions.

Supporting documents include: first article inspection reports, material certificates of analysis, equipment calibration records, operator training records, and any deviation reports with root cause analysis. A well-organized validation package for a moderately complex part runs 40–80 pages.

Keep your validation records accessible. During audits, you’ll need to retrieve specific run data, measurement results, and sign-off sheets quickly. A well-indexed digital archive saves hours of audit preparation time. We maintain complete validation records for every production mold at our Shanghai facility, organized by part number and revision level.

When Should You Revalidate?

Validation isn’t permanent. Changes to the process, equipment, material, or environment can invalidate your previous results. The key is knowing when full revalidation is required versus when a simple verification is sufficient.

Full revalidation (IQ + OQ + PQ) is required when: the mold is moved to a different machine, there’s a major mold modification (adding a cavity, changing gate location, replacing core inserts), or the material grade changes. Partial revalidation (OQ + PQ) may be sufficient for minor changes like adjusting process parameters within the validated range.

Annual revalidation reviews are standard practice in regulated industries. Even if nothing has changed, you review the SPC data from the past year, confirm that Cpk values are still above threshold, and document the review. This is sometimes called ‘continued process verification’ and it’s required under FDA guidance.

At our Shanghai facility, our 8 senior engineers review validation status monthly. Any process that shows Cpk degradation below 1.33 on critical dimensions triggers an automatic investigation and potential revalidation. This proactive approach prevents quality escapes before they reach the customer.

What is injection molding process validation?

Injection molding process validation is a documented, evidence-based procedure that proves your molding process consistently produces parts meeting all specifications across dimensional, material, cosmetic, and functional criteria. It follows three defined stages: Installation Qualification (IQ), Operational Qualification (OQ), and Process Qualification (PQ). The goal is to establish documented, statistical confidence that the process operates within defined parameter limits every time it runs, regardless of operator variation, shift changes, or material lot differences. Validation is required by regulatory bodies including the FDA and IATF for critical industries.

Is process validation required for all injection molded parts?

Process validation is legally mandatory for medical devices under FDA 21 CFR Part 820, automotive components under IATF 16949, and aerospace parts under AS9100. For consumer products and general industrial applications, it is not legally required but is strongly recommended by quality professionals. The reason is simple: the cost of a typical validation protocol (,000 to ,000 for a single-cavity mold) is far less than the cost of a single quality escape, product recall, or rejected shipment. Even non-regulated manufacturers benefit from reduced warranty claims, lower scrap rates, and improved customer confidence when their processes are properly validated with documented parameter windows.

What is the difference between IQ, OQ, and PQ?

IQ (Installation Qualification) verifies that all equipment has been correctly installed, including utility connections, calibration records, and software versions. It answers the question: is the machine set up right? OQ (Operational Qualification) demonstrates the process works across its intended operating range by testing parameter limits using Design of Experiments methodology. It answers: does the process work at its extremes? PQ (Process Qualification) proves consistent production quality over multiple consecutive runs with statistical capability analysis using Cpk calculations. It answers: can we trust this process to deliver every time? Each stage builds on the previous one and must be completed sequentially.

How many parts are needed for process validation?

There is no single fixed number mandated across all industries, but established practice requires three separate production runs, typically across different shifts, days, or operators, with statistically significant sample sizes per run. For Process Qualification, typical sample sizes range from 30 to 50 parts per run for dimensional analysis, yielding 90 to 150 total data points per critical dimension for Cpk calculation. Multi-cavity molds require representative samples from every cavity in each run to demonstrate cavity-to-cavity consistency. Medical device manufacturers may require larger sample sizes depending on the risk classification of the part and the statistical confidence level specified in the validation protocol.

What Cpk value is acceptable for validated processes?

Cpk greater than or equal to 1.33 is the minimum accepted threshold for a capable process in most manufacturing contexts. This value corresponds to approximately 63 defects per million opportunities, meaning the process mean sits at least four standard deviations from the nearest specification limit. Automotive OEMs frequently require Cpk greater than or equal to 1.67 for critical safety dimensions, corresponding to roughly 0.6 defects per million. Medical device companies typically target Cpk greater than or equal to 1.33 but may mandate higher values for patient-critical features. Any Cpk value below 1.0 indicates the process regularly produces out-of-specification parts and requires immediate corrective action and potential revalidation before production continues.

How often should injection molding process validation be repeated?

Full revalidation covering all three stages (IQ, OQ, and PQ) is required whenever the process changes significantly, including moving the mold to a different machine, major mold modifications such as adding cavities or changing gate locations, switching material grades, or relocating to a different facility. For regulated industries including medical devices and automotive, annual continued process verification reviews are required even when no changes have occurred. During these reviews, quality teams examine SPC data from the past twelve months and confirm that Cpk values remain above threshold on all critical dimensions. If SPC monitoring detects Cpk degradation below 1.33 on any critical dimension at any point, revalidation should be triggered immediately rather than waiting for the scheduled annual review.

What is the role of DOE in injection molding validation?

Design of Experiments (DOE) plays a critical role during the Operational Qualification phase by efficiently mapping the relationship between process parameters and part quality outcomes. Instead of testing one factor at a time, which would require hundreds of experimental runs, DOE varies multiple factors simultaneously according to a structured statistical plan. This approach reveals parameter interactions that one-factor testing misses entirely. A typical fractional factorial DOE with four to six process parameters requires only 16 to 32 runs to identify which factors are statistically significant and establish proven parameter windows with documented upper and lower limits for each critical variable.

Can process validation be done on a prototype mold?

Process validation can technically be performed on a prototype mold, but the validation results apply only to that specific mold, machine, and material combination under the exact conditions tested. If you validate on a prototype soft tool and subsequently move to a production hard tool, the entire validation must be repeated because the production mold will have different cooling channel layouts, gate designs, cavity counts, surface finishes, and steel types. All of these differences fundamentally affect how the process behaves, meaning the original validation data cannot be transferred to the new tool. For this reason, most quality engineers recommend validating directly on the production mold to avoid duplicate effort and cost.

---

1. process validation: Process validation refers to the systematic procedure of collecting and evaluating data throughout the design and production stages to establish documented evidence that a manufacturing process, operated within established parameters, consistently produces a product meeting its predetermined specifications and quality attributes. ↩

2. Installation Qualification: Installation Qualification (IQ) is a formal verification phase that confirms all manufacturing equipment has been installed according to the manufacturer specifications and design requirements, including utility connections such as power, water, and compressed air, software versions, calibration certificates, and environmental operating conditions. ↩

3. Operational Qualification: Operational Qualification (OQ) is a structured testing phase that demonstrates equipment operates as intended across all anticipated operating ranges, using challenge conditions and Design of Experiments to verify performance boundaries and establish proven parameter windows. ↩

4. Process Qualification: Process Qualification (PQ) refers to the conclusive validation stage that demonstrates the manufacturing process consistently produces acceptable product meeting all predetermined specifications under normal operating conditions, verified over multiple consecutive production runs with statistical capability analysis including Cpk calculations. ↩

5. Design of Experiments: Design of Experiments (DOE) is a structured statistical methodology used to systematically vary multiple process parameters simultaneously, enabling efficient identification of significant factors and their interactions on output quality with minimal experimental runs. ↩
