What Is an Injection Mold Cooling System?

An injection mold cooling system is a network of channels, passages, and temperature-control devices machined into the mold that remove heat from molten plastic after injection, reducing cycle time¹ by 50-70% and ensuring dimensional accuracy. Without a properly designed cooling system, parts warp, sink marks appear, and production throughput collapses. The cooling system is not an afterthought — it determines whether your mold is profitable or a liability.

Cooling works by circulating a temperature-controlled medium — most commonly water at 10-25 degrees C — through channels drilled or printed into the mold plates surrounding the cavity. Heat from the molten plastic (injected at 180-320 degrees C depending on material) transfers into the coolant, which carries it away to an external chiller or cooling tower. The part reaches ejection temperature (typically 40-80 degrees C below the material glass transition temperature) and is removed.

In our factory in China, we run 47 injection molding machines across 3 workshops. Every mold we build receives a dedicated cooling circuit layout during DFM² review, and we use mold flow analysis³ to simulate temperature distribution before any steel is machined. This discipline is why our first-pass approval rate exceeds 92%.

Why Cooling System Design Matters: The Numbers

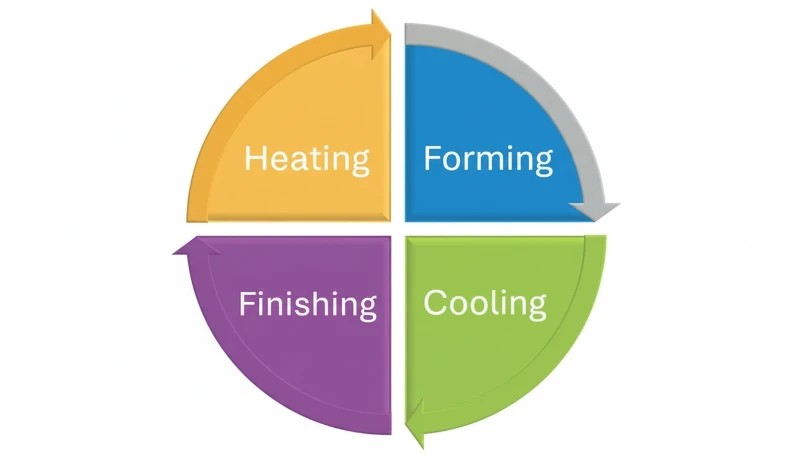

Cooling phase accounts for 50-70% of total cycle time in standard thermoplastic injection molding. A 10-second reduction in cooling time on a 30-second cycle translates to a 33% increase in throughput — producing hundreds of thousands more parts per year on the same machine with zero capital investment. That is the single highest-ROI optimization available in injection molding.

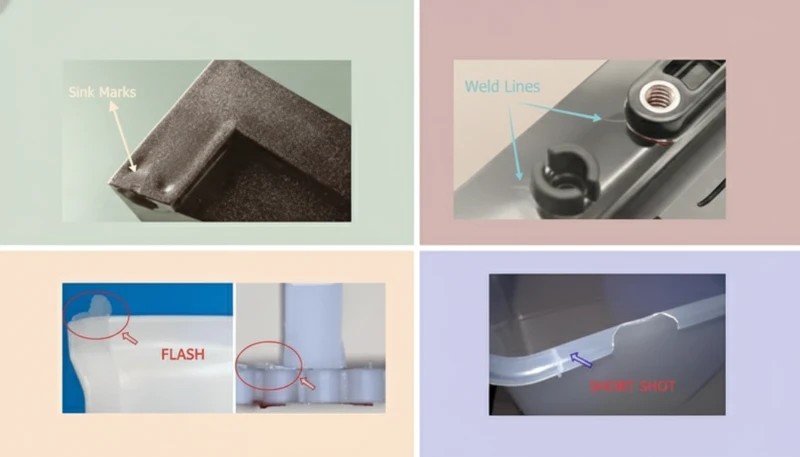

Poor cooling design creates five interconnected problems: warping and dimensional deviation from uneven temperature gradients above 5 degrees C across the cavity surface; sink marks from insufficient cooling time causing premature ejection; internal residual stress from rapid or uneven solidification; surface defects including gloss variation and blush; and extended cycle times from conservative cooling settings to compensate for poor channel placement.

All five problems cost money — either through scrap, rework, slow cycles, or failed customer inspections. In our experience reviewing hundreds of mold projects, poor cooling design is the most common root cause of first-article failures. Customers often attribute failures to material or machine settings when the actual cause is a cooling circuit that was never properly designed.

Cooling System Impact on Cycle Time and Quality

Parameter	Poor Cooling	Optimized Cooling	Improvement
Cycle time	35 sec	22 sec	-37%
Temperature uniformity	>10°C delta	<3°C delta	3x better
Warp (typical ABS part)	0.8 mm	0.15 mm	81% reduction
Sink mark depth	0.3 mm	<0.05 mm	6x better
Annual throughput (1 cavity)	825,000 shots	1,310,000 shots	+59%

These figures come from our engineering team’s internal benchmarking data across 200+ mold projects. The exact numbers vary by material, wall thickness, and part geometry — but the directional impact is consistent: every second of cooling time saved translates directly to cost reduction and capacity increase.

6 Types of Injection Mold Cooling Systems

Injection molds use six primary cooling channel configurations, each suited to different part geometries, precision requirements, and budget constraints. Understanding when to use each type is foundational to mold design.

1. Straight-Line Cooling Channels

Straight-line (or drilled) cooling channels are the standard for flat or simple-geometry parts, created by drilling 6-14 mm diameter holes through mold plates in a grid or parallel pattern. Channel-to-cavity distance is typically 15-25 mm for P20 steel molds, with 1.5 times channel diameter as minimum wall thickness to the cavity surface. Coolant flow rate targets turbulent flow (Reynolds number above 10,000), which transfers heat 3-5 times more efficiently than laminar flow.

Straight channels are the most cost-effective option — drilling costs $50-200 per circuit versus $500-5,000 for conformal channels — and are fully appropriate for flat lids, panels, housings with uniform wall thickness, and commodity parts. Their limitation is geometric: they cannot follow curved or complex cavity surfaces, leaving hot spots in corners and ribs where the channel is necessarily further from the cavity wall.

2. Baffle Cooling

Baffles are thin metal plates inserted into drilled channels that force coolant to flow down one side and back up the other, converting a single straight hole into a U-shaped flow path. They are used in narrow cores, pins, and areas where two parallel channels cannot be drilled side by side. A typical baffle doubles the cooling surface area in a restricted zone without requiring additional channel ports.

Baffle effectiveness depends on plate clearance (0.05-0.15 mm on each side) and coolant flow velocity. We typically specify baffles for any core diameter between 16 and 40 mm. Below 16 mm, thermal pins or bubblers are more effective; above 40 mm, spiral channels become the preferred option. The combination of baffle geometry and proper flow rate is what makes the difference between adequate and excellent core cooling.

3. Bubbler Cooling

Bubblers (also called fountain cooling) use a small-diameter inner tube inserted into a blind hole: coolant flows down the inner tube and returns up the annular space between the tube and hole wall. This creates a spray effect at the tip of the core — the hottest zone — achieving very high local heat transfer coefficients. Bubblers are standard for cores under 16 mm in diameter and deep pin features with aspect ratios above 4:1.

In our shop, we use bubblers on every core pin above 25 mm height, regardless of diameter. The additional machining cost of $30-80 per bubbler port is consistently recovered in cycle time reduction at the mold trial. For cores that are too small for bubblers, beryllium copper inserts provide passive heat conduction to nearby water channels.

4. Spiral (Helix) Cooling Channels

Spiral cooling channels wrap a helical path around cylindrical cores or circular cavities, providing uniform cooling over 360 degrees of the feature. For threaded closures, round containers, medical vials, and any rotationally symmetric part, spiral channels reduce peak-to-average temperature differential from more than 8 degrees C (with straight channels) to less than 2 degrees C.

Pitch and lead angle are tuned to the coolant flow rate — typically 4-8 mm pitch with a 45-degree helix angle for water cooling. Spiral inserts can be machined as separate components and pressed into mold cores, making them replaceable when worn or when geometry changes require a redesign.

5. Conformal Cooling Channels

conformal cooling⁴ channels follow the exact 3D contour of the mold cavity wall at a uniform standoff distance (typically 5-12 mm), made possible by metal additive manufacturing (DMLS or SLM). Where conventional drilled channels leave hot spots on curved surfaces and sharp corners, conformal channels maintain cavity-to-channel distance within plus or minus 1 mm across the entire surface — delivering 20-35% cycle time reduction and dramatically more uniform cooling.

The trade-off is cost and lead time: a conformal-cooled insert produced by DMLS from H13 tool steel costs $3,000-15,000 versus $500-2,000 for a conventionally machined insert. The break-even point is typically reached at 50,000-100,000 shots for high-volume parts, where cycle time savings translate to machine-hour savings that exceed the tooling premium. For medical devices, automotive trim, and consumer electronics at high volume, conformal cooling is the standard of practice.

6. Thermal Pins and Heat Pipes

Thermal pins (heat pipes) are sealed copper or beryllium copper components charged with a phase-change fluid. They passively transfer heat from hot spots — sharp corners, ribs, thin features — to a water-cooled heat sink with no active coolant flow. Heat pipe thermal conductivity reaches 10,000-100,000 W/m·K, compared to 20-50 W/m·K for P20 steel.

Thermal pins are ideal for features too small or inaccessible for active cooling channels, such as ribs under 3 mm wide or ejector pin areas. They require no plumbing connections and can be retrofitted into existing molds without major rework. In our factory, thermal pins have eliminated hot-spot sink marks on several medical device molds where ribs could not otherwise be adequately cooled.

Cooling Medium Comparison: Water, Oil, and Air

The cooling medium choice — water, oil, or air — determines heat transfer capacity, operating temperature range, maintenance requirements, and cost. Each medium fits a specific window of mold temperature requirements, and choosing the wrong medium creates quality problems that are surprisingly difficult to trace back to their root cause.

Cooling Medium Comparison for Injection Molding

Medium	Temp Range	Heat Transfer	Best For	Maintenance
Water (chilled)	10-60°C	High (3,000-10,000 W/m2K)	Most thermoplastics (PE, PP, ABS, PC)	Scale/corrosion control
Water (tower)	25-35°C	High	High-volume commodity parts	Algae and mineral control
Oil (thermal)	60-200°C	Medium (500-2,000 W/m2K)	High-temp materials (PEI, PEEK, PPS)	Fluid replacement every 12 months
Air	Ambient	Low (50-200 W/m2K)	Thin walls, elastomers, foam parts	Minimal — filter cleaning only
Beryllium copper	Passive	Very high (conduction)	Thin ribs, micro features	None

In our factory, 90% of molds run water cooling at 15-25 degrees C using a closed-loop chiller system. For engineering resins processed above 120 degrees C (PEI, PEEK, PPS, POM), we switch to temperature-controlled oil circuits that maintain mold temperature at 80-160 degrees C. Air cooling is reserved for simple silicone and thin-wall foam applications where water channel proximity would cause surface condensation.

Water chemistry management is a critical and often overlooked aspect of mold cooling. We use deionized water with pH 7-8 and a corrosion inhibitor package in all production chiller loops. Tap water causes progressive scale buildup that reduces heat transfer by 15-25% per millimeter of deposit — an invisible performance degradation that shows up as gradually increasing cycle times over 12-18 months of production.

True or False: Injection Mold Cooling Myths

These two principles — that cooling dominates cycle time and that coolant temperature must be carefully controlled — form the foundation of effective injection mold cooling system engineering. Misunderstanding either one leads to wasted machine time or cosmetic defects that fail customer inspection. The next two myths address more advanced design decisions around coolant flow dynamics and cooling technology selection. Both are frequently misapplied in practice: engineers either accept laminar flow as unavoidable or invest in conformal cooling for parts that do not justify the premium. Getting the analysis right saves both time and money.

Key Design Parameters for Injection Mold Cooling

Five engineering parameters govern cooling system performance. Getting these right at the design stage prevents expensive rework after mold trials. These numbers are not arbitrary — they emerge from decades of empirical testing and thermal simulation validation.

Channel Diameter

Standard cooling channel diameters range from 6 mm (small precision molds) to 16 mm (large structural molds). The most common sizes in our shop are 8 mm and 10 mm, which balance drilling cost, flow resistance, and heat transfer surface area. Channels below 6 mm are prone to blockage from scale and corrosion and require filtered deionized water; channels above 16 mm reduce structural mold strength and increase the risk of channel-to-channel breakthrough during drilling.

Channel-to-Cavity Distance

Channel centerline-to-cavity surface distance should be 1.5-2 times the channel diameter for balanced thermal and structural performance. For an 8 mm channel in P20 steel, the target distance is 12-16 mm. Closer placement increases cooling rate but risks stress cracking and core breakthrough; greater distances reduce cooling efficiency and create hot spots between channels where the thermal gradient is not adequately controlled.

Channel Pitch (Center-to-Center Spacing)

Pitch between parallel channels affects temperature uniformity across the cavity surface. The standard recommendation is 3-5 times the channel diameter. For 10 mm channels, a pitch of 30-50 mm balances thermal uniformity against drilling cost. Wider pitch produces temperature ripple between channels; tighter pitch is structurally challenging and increases the mold plate cost.

Coolant Flow Rate and Reynolds Number

Flow rate must achieve Reynolds number above 10,000 for turbulent flow. For an 8 mm channel, this requires flow velocity above 0.7 m/s, corresponding to approximately 2.6 liters per minute per circuit. Our standard practice is to verify flow rate at the mold trial using digital flow meters installed on each circuit port, and record actual Reynolds numbers in the mold setup sheet for future production reference.

Inlet and Outlet Temperature Differential

Coolant inlet-to-outlet temperature rise should stay below 3-5 degrees C per circuit. A larger delta indicates insufficient flow rate — the coolant is absorbing too much heat per pass — and creates a temperature gradient along the channel length that results in non-uniform cooling from one end of the part to the other. We target a delta below 3 degrees C as our standard and adjust flow rate at trial until this is achieved.

Step-by-Step Cooling System Design Process

Our engineering team follows a structured seven-step process for every new mold cooling system, from initial CAD review through mold trial validation. This process eliminates most cooling-related first-article failures before they happen.

Step 1 is thermal load calculation: estimate heat input from the injected plastic mass, material enthalpy, and cycle time target to define required cooling capacity in watts. Step 2 is channel type selection: match channel geometry to part shape — straight for flat parts, spiral for cylindrical features, conformal for complex 3D geometry, baffles and bubblers for narrow cores. Step 3 is layout design: position channels at 1.5-2 times diameter standoff, 3-5 times pitch, with adequate steel bridges between channels.

Step 4 is circuit planning: design series and parallel circuits to balance flow and avoid dead-leg zones where coolant velocity drops to zero. Step 5 is mold flow simulation: run thermal analysis in Moldex3D or Moldflow to verify temperature uniformity, identify hot spots, and predict warp — iterating the layout until peak-to-average temperature delta falls below 5 degrees C. Step 6 is DFM review: check for drilling interference with ejector pins, leader pins, lifters, and slides. Step 7 is mold trial validation: measure circuit flow rates, inlet/outlet temperature differential, and part temperature at ejection using infrared thermometry, then compare against simulation predictions.

Common Cooling System Problems and Solutions

Even well-designed cooling systems develop problems over time. The three most frequent issues we encounter in our factory are channel scale buildup, hot spots from design blind areas, and coolant leakage into the mold cavity. Each has clear diagnostic indicators and proven remedies.

Cooling Problems, Root Causes, and Solutions

Problem	Root Cause	Solution
Warping / dimensional drift	Non-uniform cavity temperature (>5°C delta)	Add channels to hot zones; verify flow balance
Scale/clogged channels	Hard water mineral deposits	Use deionized water; annual acid flush
Coolant leakage into cavity	Cracked channel wall (insufficient steel thickness)	Redesign with >10 mm wall; use O-rings at inserts
Extended cycle time	Insufficient flow rate (laminar flow)	Increase pump pressure; reduce circuit length; resize channels
Surface condensation/rust	Coolant below dew point	Raise coolant temperature; use moisture barriers
Hot spots on ribs/thin walls	Channels too far from feature	Add bubblers, baffles, or thermal pins in affected zones

Scale buildup is the number one long-term cooling killer in our experience. A 1 mm scale layer on a channel wall reduces heat transfer by approximately 15-25%. We mandate quarterly cooling circuit inspections on all production molds, with acid descaling every 6-12 months depending on water hardness. Molds running on city water require more frequent maintenance than those on deionized water loops.

Coolant leakage into the mold cavity is less common but catastrophically disruptive when it occurs — production stops immediately and the mold requires repair. The primary cause is insufficient wall thickness between the cooling channel and the cavity surface, typically from a channel drilled too close during production or a crack that propagated from a pre-existing surface defect. We verify minimum wall thickness during DFM review and re-verify with CMM measurement after machining, before any mold trial.

Conformal Cooling vs. Conventional Cooling: When to Choose

Conformal cooling is not always the right answer. The decision framework is straightforward: compare the tooling cost premium against the value of cycle time savings over the planned production volume. Getting this analysis wrong in either direction costs money — either by overspending on premium tooling for a low-volume part, or by leaving significant cycle time savings on the table for a high-volume part.

Conformal vs. Conventional Cooling Decision Criteria

Factor	Choose Conventional	Choose Conformal
Part geometry	Flat, uniform wall thickness	Complex 3D, variable wall thickness
Annual volume	<50,000 shots	>100,000 shots
Cycle time target	No aggressive constraint	20%+ reduction required
Warp tolerance	+/-0.5 mm acceptable	<+/-0.2 mm required
Tooling budget	Standard budget	20-50% premium acceptable
Material	PE, PP, ABS (forgiving)	PC/ABS, Nylon, engineering resins (sensitive)

In our factory, we recommend conformal cooling for automotive exterior trim, medical device housings, and consumer electronics parts where cosmetic standards are strict, wall thickness varies significantly, and annual volumes exceed 100,000 shots. For packaging, commodity housings, and prototype tools, optimized conventional cooling delivers the required quality at a fraction of the cost. The decision belongs in DFM review — not after the first mold trial reveals a cycle time problem.

The Evolving Cost of Conformal Cooling Technology

The economics of conformal cooling have shifted significantly over the past five years as DMLS (Direct Metal Laser Sintering) machine costs have fallen 40-60% and lead times have compressed from 8 weeks to 2-3 weeks. In 2020, conformal cooling was primarily justified for automotive and medical applications. Today, we increasingly recommend it for any part with wall thickness variation above 2:1 where annual volumes exceed 75,000 shots. The break-even calculation now frequently favors conformal cooling in applications that would have defaulted to conventional channels just a few years ago.

One underappreciated advantage of conformal cooling is its impact on part consistency, not just speed. When temperature distribution is uniform to within 2-3 degrees C, shot-to-shot dimensional variation decreases substantially — a factor that matters enormously in medical device manufacturing and precision automotive components where Cpk requirements above 1.67 are standard. In our factory, switching three medical device molds from conventional to conformal cooling reduced dimensional process variation by 35-45%, eliminating a significant source of inspection rejects at the customer level.

Frequently Asked Questions About Injection Mold Cooling Systems

How long should the cooling time be in injection molding?

Cooling time depends on wall thickness, material thermal conductivity, mold temperature, and required ejection temperature. The rule of thumb is: cooling time in seconds approximately equals wall thickness in millimeters squared, multiplied by a material factor of 1.5-2.5 for amorphous resins (ABS, PC) and 2.0-4.0 for semi-crystalline resins (PP, PA, POM). For a 3 mm ABS wall, expect 9-13 seconds of cooling; for a 3 mm PP wall, 18-36 seconds. Our engineering team calculates required cooling time during DFM review using thermal simulation tools — not just rules of thumb — because wall thickness variation across a single part can require very different cooling durations for different sections.

What causes warping in injection molded parts?

Warping is caused by differential shrinkage across the part, which results from uneven cooling. When one surface cools faster than the opposite surface, it shrinks more, bending the part toward the cooler side. Temperature gradients above 5-8 degrees C between cavity and core sides are the most common root cause. Other contributing factors include asymmetric wall thickness, inadequate packing pressure, gate location, and fiber orientation effects in glass-filled materials. The primary remedy is balancing the cooling circuit layout — confirmed through mold flow analysis with thermal simulation before any steel is cut. Attempting to correct warping through packing pressure adjustments alone rarely succeeds if the root cause is in the cooling design.

How do you calculate cooling channel diameter and spacing?

Standard industry guidelines for cooling channel design: channel diameter should be 6-16 mm (most commonly 8-10 mm for general tooling); channel centerline-to-cavity surface distance should be 1.5-2.0 times the channel diameter; channel pitch (center-to-center spacing) should be 3-5 times the channel diameter. For a 10 mm diameter channel, the cavity standoff distance target is 15-20 mm, with pitch at 30-50 mm. These initial parameters are validated through thermal simulation using Moldex3D or Moldflow to confirm that peak-to-average temperature variation across the entire cavity surface stays below 5 degrees C under full production conditions, before any steel is machined.

What is the difference between series and parallel cooling circuits?

In a series circuit, coolant flows through all channels in a single unbroken path before exiting the mold. This is simple to plumb but allows coolant temperature to rise significantly from inlet to outlet, creating a temperature gradient that produces non-uniform cooling across the part length. In a parallel circuit, coolant flow is split across multiple channels simultaneously and recombined at the exit manifold, maintaining more uniform temperature distribution throughout the mold. Most production molds use a combination approach: short series circuits for individual zones, balanced through parallel manifolds across the full mold to achieve uniform coolant inlet temperature in every zone.

Why does my mold have hot spots even with a cooling system?

Hot spots occur when cooling channels are too far from the cavity surface, when flow rate is insufficient and creates laminar flow conditions, when scale buildup insulates channels from effective heat transfer, or when certain features — thin ribs, sharp corners, small cores — cannot be reached by conventional channels. Solutions include adding bubblers or thermal pins to inaccessible features, verifying turbulent flow conditions at trial with digital flow meters, performing annual acid descaling on all circuits, and upgrading to conformal cooling inserts in chronically hot areas identified through infrared part temperature mapping after ejection.

---

1. cycle time: Cycle time is the total duration of one complete injection molding cycle, measured in seconds, encompassing injection, cooling, and ejection phases. ↩

2. DFM: DFM (Design for Manufacturability) is an engineering methodology that optimizes product design to improve the efficiency and cost-effectiveness of the manufacturing process. ↩

3. mold flow analysis: Mold flow analysis is a computer simulation process that predicts how molten plastic fills a mold cavity, including cooling behavior, warp, and shrinkage. ↩

4. conformal cooling: Conformal cooling refers to a mold cooling technique where channels are designed to follow the contour of the mold cavity, enabling uniform heat removal across complex part geometries. ↩
