What Is High Temperature Injection Molding?

high-temp polymer molding is a specialized manufacturing process that uses elevated melt temperatures—typically above 300°C—to process high-performance engineering thermoplastics¹. In our factory, we run dedicated high-temperature machines for materials like PEEK, PPS, and PEI that simply can’t be processed on standard equipment.

Standard injection molding typically operates at melt temperatures of 180–280°C for commodity plastics like ABS, PP, and PE. High temperature molding pushes well beyond this range, requiring specialized barrel heaters, heat-resistant seals, hardened screws, and mold temperature controllers capable of maintaining mold surfaces at 150–200°C. The payoff is access to materials that outperform metals in many applications—at a fraction of the weight.

What Materials Require High Temperature Processing?

Several families of engineering and high-performance polymers require processing temperatures above 300°C. We regularly work with these materials, and each has distinct processing requirements and performance characteristics.

PEEK is the most requested high-temperature material in our shop. We’ve found that proper drying (150°C for 3–4 hours to below 0.02% moisture) and precise barrel temperature profiling are critical for producing defect-free PEEK parts.

What Are the Key Benefits of High Temperature Injection Molding?

The primary benefit is access to materials that deliver metal-like performance at 40–70% less weight. In our experience working with aerospace and automotive clients, high-temp polymer molding enables designs that simply aren’t possible with standard plastics.

• Superior Heat Resistance: Parts withstand continuous operating temperatures of 150–275°C, compared to 80–120°C for standard plastics.
• Chemical Resistance: PEEK and PPS resist aggressive chemicals including jet fuel, automotive fluids, and sterilization agents.
• Mechanical Strength: Tensile strength of 90–200 MPa, with some glass-filled grades exceeding 200 MPa—rivaling aluminum.
• Weight Reduction: Specific gravity of 1.3–1.7 vs. 2.7 for aluminum and 7.8 for steel, enabling 40–70% weight savings.
• Flame Retardancy: Many high-temperature polymers achieve UL 94 V-0 rating without additives.
• Dimensional Stability: Low coefficient of thermal expansion means parts maintain tight tolerances across wide temperature ranges.

Which Industries Benefit Most from High Temperature Molding?

High temperature injection molding serves industries where components must perform under extreme thermal, chemical, or mechanical stress. We’ve delivered high-temperature molded parts to clients across all of these sectors.

In the electronics industry alone, the shift to lead-free soldering (peak reflow temperatures of 260°C) drove massive adoption of LCP and PPS for SMT connectors—parts that standard nylon or PBT can’t survive.

What Equipment Modifications Are Needed for High Temperature Processing?

Running high temperature materials requires significant modifications beyond just turning up the barrel temperature². We’ve invested heavily in specialized equipment, and the differences from standard molding are substantial.

• Barrel and Screw: Bimetallic barrels with Inconel or Hastelloy linings rated for 420°C+. Screws with lower compression ratios (2.0:1 to 2.5:1) to minimize shear heating.
• Heater Bands: Ceramic or mica heater bands capable of 450°C with precise zone control (±2°C).
• Mold Temperature Control: Pressurized water systems (up to 180°C) or oil-based units (up to 350°C) to maintain high mold temperatures.
• Hot Runner Systems: Specialized hot runners with high-temperature heaters and wear-resistant nozzle tips.
• Drying Equipment: Desiccant dryers capable of 200°C+ for materials like PEEK that require aggressive moisture removal.

The capital investment for a high-temperature molding cell is typically 30–50% higher than a standard cell. But for the right applications, the performance benefits justify the cost.

What Are Common Challenges and How Do You Overcome Them?

High temperature injection molding presents several unique challenges that we’ve learned to manage through years of experience with these demanding materials.

One critical lesson we’ve learned: never let PEEK sit in the barrel at processing temperature for more than 5 minutes without cycling. The material will degrade, turning from amber to dark brown, with significant loss of mechanical properties.

How Does High Temperature Molding Compare to Metal Machining for the Same Applications?

For many applications, high temperature injection molded parts directly replace machined metal components. We frequently help clients make this transition, and the benefits are compelling when the application fits.

The economics shift further in favor of polymer molding at higher production volumes. At quantities below 500 parts, CNC machining aluminum often wins on total cost because tooling investment is minimal. Between 500 and 2,000 parts, the breakeven point depends on part complexity — simple geometries favor machining while complex shapes with internal features favor molding. Above 2,000 parts, injection molding almost always delivers lower per-unit cost, even accounting for the $15,000–$40,000 mold investment typical for high-temperature tooling.

Surface finish presents another key differentiator. Machined metal parts achieve Ra 0.8–1.6 μm without secondary operations, while molded PEEK parts typically produce Ra 0.4–1.2 μm directly from the mold — actually smoother than machined aluminum in many cases. We leverage this advantage for medical device components and optical sensor housings where surface quality directly affects product performance.

A recent project for an aerospace client replaced CNC-machined aluminum brackets with 30% carbon fiber-filled PEEK. The result: 48% weight reduction, 60% cost reduction at volume, and improved vibration damping—plus the parts don’t corrode in the salt-spray environment.

Another consideration that manufacturers often overlook is the recyclability and sustainability profile of high-performance polymers. Unlike thermoset materials that cannot be remelted, thermoplastic polymers like PEEK, PPS, and PEI can be reground and reprocessed multiple times with minimal property degradation. In our facility, we recover and reuse up to 25% of runner and sprue material from high-temp production runs, reducing raw material waste and lowering the effective cost per part. This closed-loop approach also aligns with the growing demand from automotive and aerospace OEMs for suppliers who demonstrate measurable sustainability practices in their manufacturing operations.

FAQ

What is the most common high temperature injection molding material?

PEEK (Polyether Ether Ketone) is the most widely used high-temperature injection molding material, processed at 370–400°C. It offers an exceptional combination of mechanical strength (100 MPa tensile), chemical resistance, and continuous service temperature up to 260°C.

How much does high temperature injection molding cost compared to standard molding?

High temperature molding typically costs 3–10× more per part than standard molding due to expensive raw materials ($50–$150/kg vs. $2–$5/kg), longer cycle times (higher mold temperatures = longer cooling), and specialized equipment requirements. However, for metal replacement applications, it’s often cheaper than CNC machining at volume.

Can standard injection molds be used for high temperature materials?

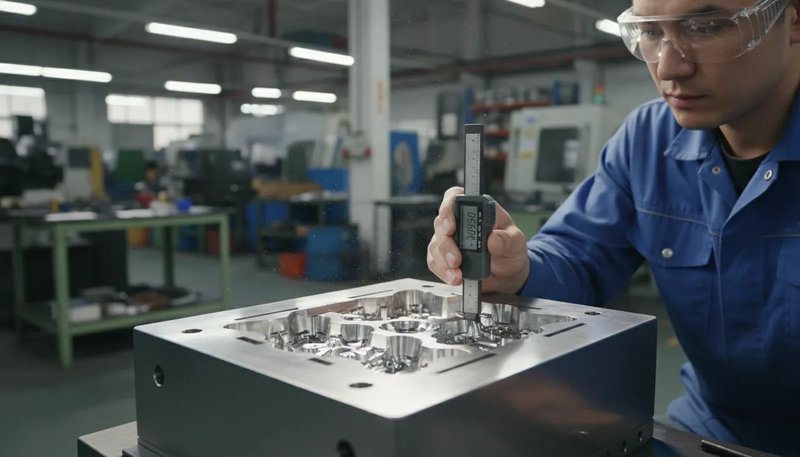

Generally no. Molds for high-temperature materials require hardened tool steels (H13 or S7), high-temperature O-rings, and specialized cooling/heating channels. Standard P20 steel molds may soften or distort at the elevated mold temperatures (150–200°C) required for proper processing.

What drying conditions are required for PEEK?

PEEK must be dried at 150°C for 3–4 hours in a desiccant dryer to achieve moisture content below 0.02%. Inadequate drying causes splay marks, bubbles, and degraded mechanical properties. We use inline moisture analyzers to verify dryness before processing.

Is high temperature injection molding suitable for medical devices?

Yes. PEEK and PPSU are widely used in medical devices because they withstand steam sterilization (134°C), are biocompatible (ISO 10993), and offer radiolucency for imaging compatibility. PEEK is also used in spinal implants and dental frameworks.

What is the minimum order quantity for high temperature molded parts?

Due to the high tooling costs ($15,000–$80,000 for PEEK-rated molds) and expensive materials, minimum economical order quantities typically start at 500–1,000 parts. For lower volumes, CNC machining of PEEK stock shapes may be more cost-effective.

Summary

High temperature injection molding opens the door to materials that deliver metal-like performance at significantly reduced weight and cost at volume. The benefits—heat resistance up to 275°C, exceptional chemical stability, and mechanical strength rivaling aluminum—make it indispensable for aerospace, automotive, medical, and electronics applications. While it requires specialized equipment and expertise, the performance advantages and metal-replacement potential make high temperature injection molding one of the most valuable capabilities in modern plastics manufacturing. In our factory, it’s become one of our fastest-growing service areas as more industries discover that high-performance polymers⁴ can outperform metals in ways they never expected.
