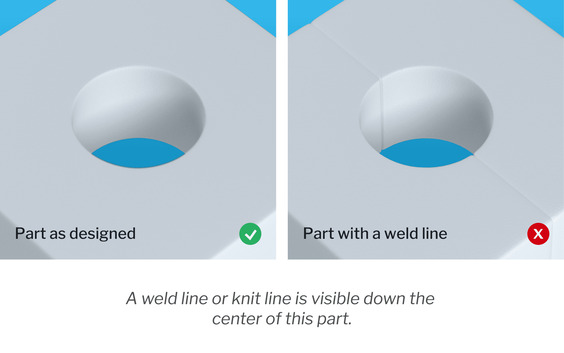

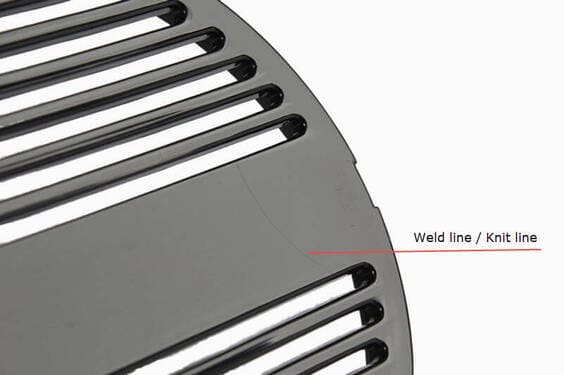

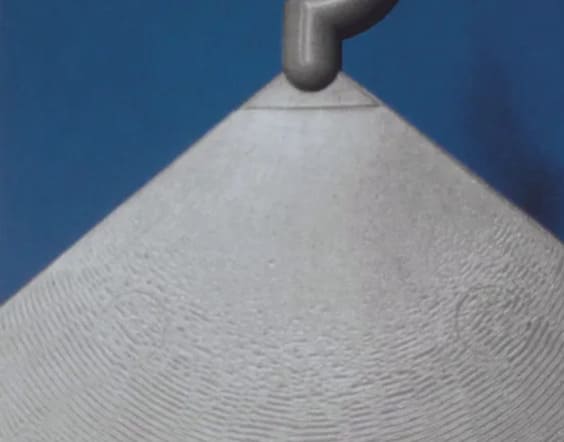

1. What are weld lines in injection molding?

Weld lines in plastic injection molding refer to the visible lines or streaks that appear on the surface of a molded part due to the improper merging of the plastic flow from different gates or injection points.

2. What bad effects can weld lines cause?

These lines not only affect the aesthetic appeal of the part but also weaken its structural integrity, leading to potential failure under load or stress.

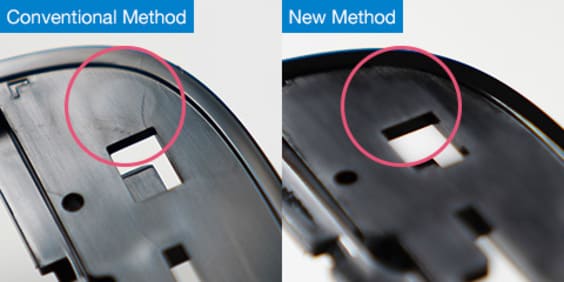

3. How to avoid weld lines in injection molding?

Unsightly weld lines can be an eyesore in injection molding projects, but these surface blemishes don’t have to remain a part of your end product.

By understanding the underlying causes and by implementing corrective steps over the design-build process, you’ll create consistent injection molded parts that are free from imperfections.

a. Inadequate filling of the mold cavity

Poor filling of the injection mold cavity can lead to weld lines. To avoid this, it is important that gate or injection points are strategically placed and plastic flow channels within the injection mold are designed carefully; thus encouraging a uniform distribution throughout.

Furthermore, by increasing gate numbers, reducing joint line depth, thickening runners, and minimizing shortest runner length will assist in preventing any unsuitable outcomes caused by poor fillings.

b. The presence of air pockets

During injection molding, the formation of weld lines can be caused by air pockets or voids.

To prevent this from occurring and achieve a successful joint line, proper venting is critical to allow for the escape of excess trapped air as well as an adherence to precise process control methods.

The exhaust groove should preferably be set at the position of expected joined parts; if unable due to design constraints it may also occupy ejection tip locations on nearby rows.

c. The flow rate or pressure of the plastic material

Weld lines can occur from inconsistencies in the injection process, such as varying viscosity or temperature of plastic material and differing cross-sectional areas for flow channels.

Even slight variances can create visible blemishes on parts when molded, so it is important to take steps toward controlling these factors to ensure a consistent molding experience without weld line imperfections.

For successful injection molding, maintaining the temperature and viscosity of plastic material is essential.

Heating systems must be kept at a specific distance from product surfaces to optimize melt flow rate.

Hot oil mold machines set between 120-140 for optimal results – with graphite molds base and guide sleeve as preconditions to ensure quality output without burning guide post risk.

d. Shrinkage of the plastic material

To ensure a successful end product, the injection mold design must account for plastic material shrinkage during cooling.

Without adequate allowance for this factor, weld lines can form in an unevenly filled cavity – resulting in a compromised final result.

A careful consideration of wall thickness is integral to guaranteeing that your injection molded part turns out consistently desirable every time.

Conclusion

In injection molding, weld lines can be avoided by implementing prudent design and manufacturing measures.

These include strategically placed gates and injection points; adequate venting of air to remove contaminants, consistent flow/pressure of the plastic material, and correct allowance for shrinkage during cooling – all contributing towards a molded part with an aesthetically pleasing appearance as well as structurally sound integrity.
