From Critical Failure to Market Triumph

3 Months of Failed Attempts.

Zero Progress.

A U.S.-based tech innovator had spent three months wrestling with pre-made aluminum mold enclosures that failed every requirement. Deadlines loomed, costs escalated, and their smart home air quality monitor project was spiraling toward cancellation.

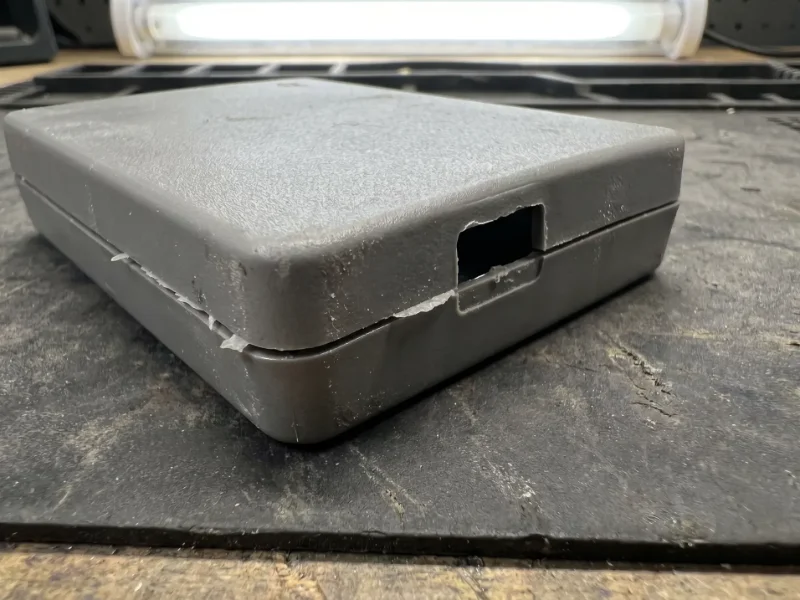

Surface Flash Defects

Aluminum mold flash created visible parting lines and rough surfaces, destroying the premium aesthetic required for a consumer-facing smart device. Costly post-processing couldn't fully resolve the issue.

Heat Dissipation Failure

Inadequate enclosure airflow caused internal sensors to overheat, directly compromising air quality measurement accuracy and threatening the device's core functionality and lifespan.

Misaligned USB Ports

Critical USB ports were misaligned with the PCB, preventing proper assembly and making the device non-functional. A glaring defect that blocked production entirely.

Redundant Design Bloat

Unnecessary features — four round knocks and light tube holes — inflated mold complexity and cost without adding any functional value. The design needed surgical simplification.

ABS → Black Polycarbonate (PC)

We engineered a strategic material shift from ABS to black PC, achieving superior translucency critical for uniform LED visibility while rigorously maintaining UL flame resistance. Our 0.8mm PC/ABS sample testing confirmed PC's unmatched light diffusion properties.

Eliminating Redundancy, Solving Light Bleeding

Our DFM analysis removed four unnecessary round knocks and light tube holes, dramatically reducing mold complexity. We replaced traditional light tubes with 0.5–0.8mm thin PC circles over seven LED holes — an elegant solution that prevents light bleeding while cutting costs.

Optimized Airflow & Precision Alignment

We increased air inlet height to dramatically improve sensor heat dissipation — a seemingly minor adjustment with profound impact on measurement accuracy and device longevity. USB tab positioning was precisely adjusted based on test PCB feedback, guaranteeing perfect assembly.

Professional Finish & Brand Identity

We integrated custom LOGO printing, a 30×65mm sticker, and PANTONE Cool Gray 7C accents with multi-color screen printing options — ensuring the final product reflects the client's brand identity with sophistication.

ABS → Black Polycarbonate (PC)

We engineered a strategic material shift from ABS to black PC, achieving superior translucency critical for uniform LED visibility while rigorously maintaining UL flame resistance. Our 0.8mm PC/ABS sample testing confirmed PC's unmatched light diffusion properties.

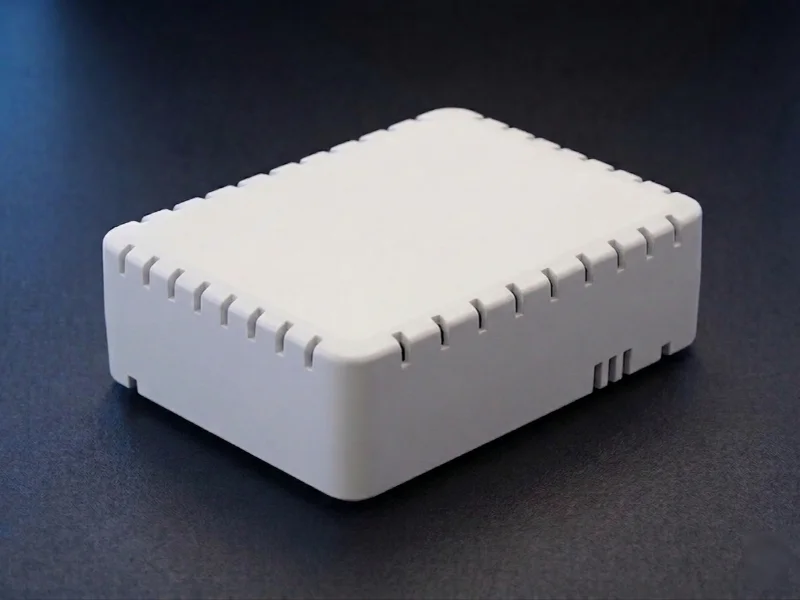

Performance Comparison

Performance Excellence

PC material eliminated light bleeding entirely. Taller air inlets significantly improved sensor efficiency and reliability, ensuring accurate air quality readings.

Client Delight

The client praised the "transformative redesign," noting: "Your suggestions turned our stuck project into a viable product." Ongoing collaboration continues.

3 Common "Cost Killers" in Smart Home Enclosure Design

Based on our extensive experience, here are three pitfalls that silently drain budgets and delay timelines — and how Zetar helps you avoid them.

Over-Engineering Unnecessary Features

Adding complex features that don't enhance user experience or core functionality can significantly inflate mold costs and production complexity.

Our DFM analysis rigorously identifies and eliminates redundant design elements, streamlining your product for cost-effective manufacturing without compromising performance.

In this project, we removed 4 round knocks and light tube holes — features that added zero value but inflated mold costs.

Ignoring Material Science

Choosing materials based solely on initial cost without considering performance, compliance, and manufacturability leads to costly redesigns and product failures.

We guide you through advanced material selection, balancing performance requirements with cost-efficiency and regulatory compliance.

Switching from ABS to PC resolved both the UL flame rating issue and LED light diffusion — two problems solved with one material decision.

Disregarding Assembly & Functionality

Designs that look good on paper but create assembly headaches or hinder component performance lead to production delays and rework.

Our holistic DFM approach integrates assembly considerations and functional performance from the outset, ensuring seamless production.

Precise USB port alignment and optimized air inlet height were achieved through iterative testing with actual PCBs — not just CAD models.
