Everything you need to know about core pull injection molding

Table of Contents

Injection molding is a manufacturing process that produces parts from plastic raw materials. Injection molding is used to make various products, from small, unique items to large quantities of identical parts.

The most common type of injection molding is known as core pulling injection molding, where parts are molded around a core that is later removed from the finished part.

This article will provide an overview of how core withdrawal injection molding works and some of its benefits. Stay tuned for injection molding-related articles that will explore specific aspects of this manufacturing process in more detail.

What is core withdrawal injection molding and what are its benefits over traditional injection molding techniques?

Core extraction injection molding is an injection molding technique that uses a core to create a cavity in a mold.

Core injection molding has several advantages over traditional injection molding techniques, including the ability to create complex shapes, the ability to produce a large number of parts, and the ability to use a variety of materials.

Core injection molding is also more precise than traditional injection molding and can be used to make smaller, more accurate parts.

In addition, core injection molding is faster than traditional injection molding and can be used to produce parts in a shorter time frame.

Core injection molding is a versatile technology that can be used to make a wide variety of parts, making it the best choice for applications where precision and speed are required.

How does the process work and what steps are involved?

Core extraction injection molding is a manufacturing process used to create hollow plastic parts. It is typically used for parts that require a large depth-to-width ratio, such as tubes or containers.

The core-drawing process begins when heated plastic material, usually thermoplastic or thermoset, is injected into a mold cavity. The plastic solidifies into the shape of the cavity. After the plastic part solidifies, the mold opens, and the part is ejected.

The mold cavity is configured so that the plastic material flows around the metal core, forming the inner wall of the finished part.

As the plastic material cools and solidifies, it is bonded to the metal core. The metal core is then withdrawn from the mold cavity, leaving a hollow part.

Core pulling injection molding offers several advantages over traditional injection molding, including higher productivity and lower labor costs.

In addition, it can be used to produce parts with complex geometries that would be difficult to produce with other methods.

Core injection molding is a fundamental manufacturing process with many applications in the medical, automotive, and consumer electronics industries.

The core molding process is as follows

→ Casting a core from a low melting point metal

→ placing it in a mold for injection molding

→ removing the part with the core

→ hot-melting the core

→ cleaning the part

→ finished product

At present, the core extraction injection molding technology has accumulated only partial experience in PA66.

Preliminary experimental research shows that PA6, PBT, PET, PPO, etc. are suitable for extractable core injection molding.

Low melting point alloys such as Sn-Bi and Sn-Pb are often used as core extraction materials. Melting cores are generally heated with oil and induction coils.

Advantages of core pulling injection molding

1. Particularly suitable for the production of composite materials with complex shapes, hollow, and unsuitable for machining.

2. Hollow plastic parts have accurate internal dimensions and smooth surfaces. This cannot be achieved by ordinary methods.

3. Compared with blow molding and gas-assisted injection molding, although additional equipment for casting fusible cores and melting cores is required, the existing injection molding machines can be fully utilized, and the freedom of molding is greater.

With an injection molding machine, you can produce thousands of plastic parts in just one day, and they will all be of similar quality.

Notes on the core injection molding process

1. The core should not be melted when the plastic part is injected.

2. The metal melt used as the core and the medium of the melt will not corrode the plastic.

3. The part will not be deformed at the temperature of the molten core.

How does the core injection molding process work and what kind of equipment is required?

Core extraction injection molding is a specialized type of plastic injection molding used to create hollow plastic objects.

The process begins with a metal mold that has been designed to create the desired shape.

The mold is filled with thermoplastic resin and then a small amount of water is injected into the center of the mold.

This creates a cavity in the center of the resin, which will become the hollow core of the finished object.

The mold is then cooled and the object is ejected from the mold.

Core extraction injection molding requires special equipment that is capable of injecting water into the center of the molten resin without damaging the mold. This type of equipment is usually found only in large-scale production facilities.

Core extraction injection molding is an effective method of creating hollow objects from thermoplastic resins, and it can be used to make a variety of objects from toys to medical devices.

What factors affect the cost of a core injection molding project ?

Core injection molding is a special form of plastic injection molding used to make hollow parts with internal cavities.

Core injection molding projects can be complex and costly, so it is important to consider all factors that affect cost before starting any work.

The size, shape, and complexity of the part will all play a role in the cost of making it. In addition, the number of cavities in the mold and the materials used will also affect the price.

By considering all of these factors, you can ensure that your core injection molding project stays within budget.

What types of materials can be used in core injection molding processes?

Core extraction injection molding is a specialized type of injection molding that can create complex geometries that are not possible with traditional injection molding processes.

Core draw injection molding utilizes an internal mandrel, or core, to form the shape of the desired part. The core is then surrounded by molten plastic, which hardens to form the finished part.

Core pulling injection molding can be used for a wide range of materials, including metals, glass, and composites.

This flexibility makes core injection molding ideal for applications where traditional manufacturing methods are not possible or practical.

Core injection molding is also capable of producing parts with extremely tight tolerances, making it the best choice for precision applications.

Advantages of using the core injection molding process for parts and products

Core injection molding is a type of injection molding that uses a core to create a cavity in a mold.

The advantage of core injection molding is that it can create complex shapes, including features that are not possible with other types of injection molding.

Core injection molding also allows for the creation of thinner walls and tighter tolerances than other types of injection molding.

In addition, core injection molding is less costly than other types of injection molding.

Core injection molding is a versatile and cost-effective manufacturing process that should be considered for any application requiring complex shapes or tight tolerances.

Core injection molding is a type of plastic molding in which plastic is injected into a metal core.

Compared to other types of plastic molding, Core injection molding has many advantages, including:

1. Core injection molding is faster and more efficient than other types of plastic molding.

2. Core injection molding produces more accurate parts with higher quality surface finishes.

3. Core injection molding is less expensive than other types of plastic molding.

4. Core injection molding is an ideal solution for many applications where speed, accuracy, and cost are important factors.

Some common applications for parts and products made through this core injection molding

Core injection molding is a type of injection molding cycle that facilitates the manufacture of parts with complex geometries.

Core pulling involves the use of a moving plate that helps shape the molten plastic as it is injected into the mold.

This type of molding is typically used to make products with complex designs, such as medical devices or electronic components.

Core pulling injection molding can also be used to make thin-walled parts that would be difficult to produce using other methods.

As a result, this type of molding offers a versatile solution for many manufacturing applications.

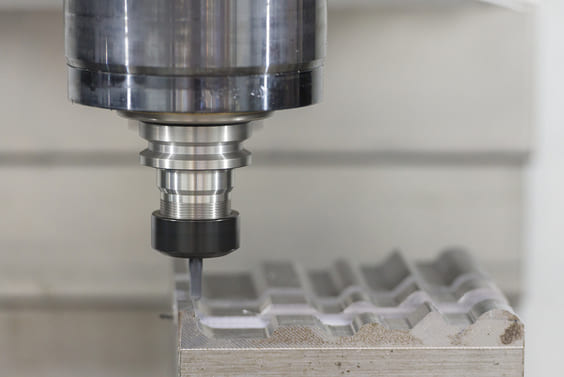

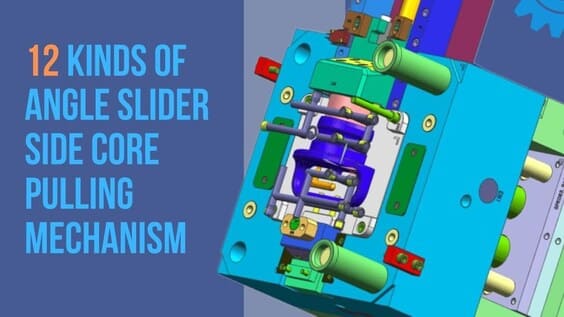

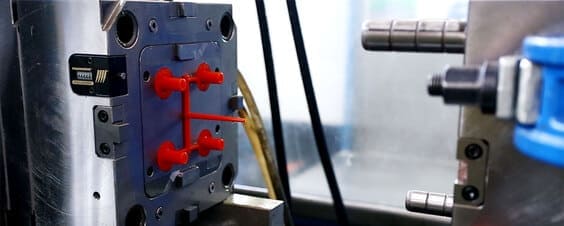

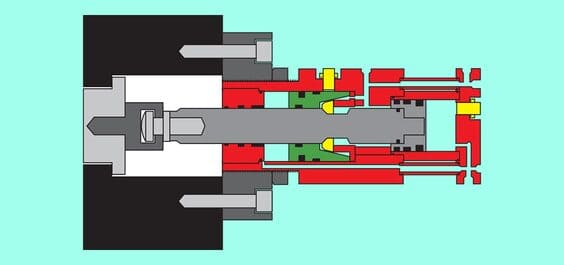

Injection Molded Core Pulling Structures

A fixed-pitch tensioning mechanism such as a plastic hook is generally used in molds for cavity core extraction or secondary demolding.

Because these mechanisms are designed on both sides of the mold, their actions must be synchronized, i.e., the mold is closed while the clasp is attached, and the mold is opened to a certain position while the hook is pulled.

Once the synchronization is lost, it will cause damage to the template of the injection mold by scratching or skewing, and the parts of these mold design structures require high stiffness and wear resistance, and the adjustment is also very difficult.

Core extraction action is relatively small in the case of the spring-assisted ejector method, core extraction action is large, you need to use the dynamic mold backward core sliding.

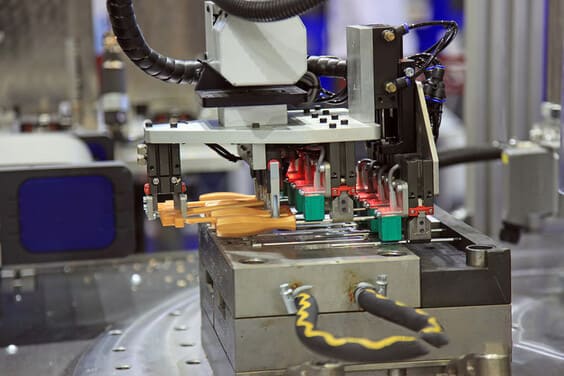

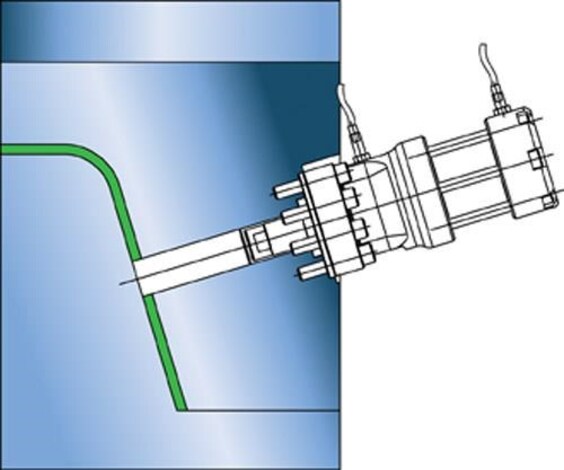

First complete the core extraction action, and then the structure of the mold, in large molds can use hydraulic cylinder core extraction.

Inclined pin slider type core extraction mechanism damage. This mechanism is more often the fault is not in place on the processing and too small with the material, mainly the following two problems.

The advantage of a large inclination angle A of the slanted pin is that it can produce a large core extraction distance in a short injection mold opening stroke.

However, if the angle of inclination A is too large when the extraction force F is a certain value, the bending force P=F/COSA in the process of core extraction will be bigger, and the pin will be easily deformed and the hole will be worn.

At the same time, the slanted pin on the slider to produce upward thrust N = FTGA is also greater, this force makes the slider on the guide groove guide surface injection pressure increase, thus increasing the slider sliding friction resistance.

It is easy to cause the sliding is not smooth, guide groove wear. According to experience, the inclination angle A should not be greater than 2.

Some molds are limited by the area of the template, the length of the guide slot is too small, and the slider in the core action is completed to reveal the outside of the guide slot,

so that the core after the stage and the initial stage of the mold reset are easy to cause the slider tilt, especially in the mold, the slider reset is not smooth, therefore the slider damage, and even bending damage.

According to experience, the length of the slider in the slide groove should not be less than 2/3 of the full length of the guide groove after the completion of the core extraction action.

Conclusion

Core extraction injection molding is a versatile technology that can be used to manufacture a wide variety of parts and is the best choice for applications that require high accuracy and speed.

If you need a reliable, accurate, and fast way to produce parts, core injection molding is the solution you’ve been looking for.

If you have a core injection molding material-related project to do, seek the help of our ZetarMold team, which already has extensive experience in core injection molding processes for injection molds and injection molded product production.
