What are the types of injection moulding?

Injection molding is an incredibly versatile, economical manufacturing process used to produce a broad array of intricate, precision-made parts and products.

It works by injecting molten material (metals or plastics) into customized molds designed to give the desired shape upon cooling.

This method can be tailored for injection rotational molding, plastic blow molding and thermoplastic injection compression moldings – all using different principles that ultimately yield precisely crafted components with exact replicability in both materials being formed as well as surface texture.

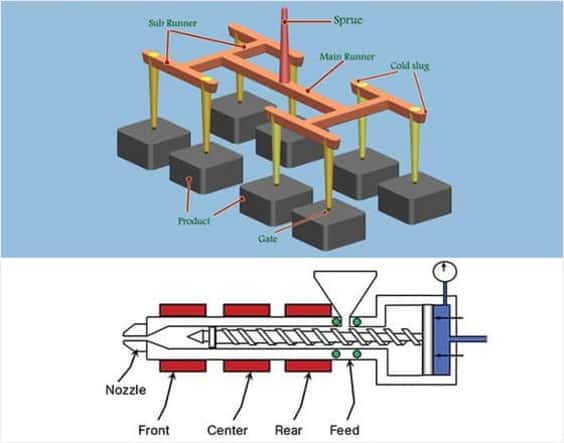

1. Thermoplastic injection molding

Through injection molding, an incredible variety of products is possible.

By heating a thermoplastic material like polyethylene and injecting it into a carefully crafted mold with precision pressure, complex items such as toys, containers, car parts and medical devices can be created in high quality and large quantities.

The process ensures the end product meets exact specifications every time before ejecting from the machine for use beyond its impressive production capabilities!

2. Thermoset injection molding

Thermoset injection molding is the go-to manufacturing process for producing strong, dimensionally stable parts and components: think electrical equipment or high-performance materials.

The thermosetting resin utilized begins as a mix of epoxy and polyurethane that’s injected into injection molds where it hardens upon curing with an added chemical agent.

3. Liquid silicone rubber (LSR) injection molding

LSR injection molding is a specialized process that uses liquid silicone rubber to create highly-functional products with superior flexibility and biocompatibility. As such, it’s ideal for the production of medical devices like catheters and tubing.

The LSR is mixed with an agent then injected into the appropriate mould – whereupon it cures and solidifies in order to produce high quality results every time.

4. Micro-injection molding

Micro-injection molding is an advanced process used to make tiny parts and components with highly accurate, intricate shapes.

Achieving such precision at the micro level requires specialized injection molds and machinery in addition to unique techniques.

This technology has extended into industries like electronics, and medical devices, producing essential elements ranging from ultra-small motors through complex optical components down to minuscule fluidic systems.

5. Multi-component injection molding

Injection molding has a unique application in the production of complex products that require multiple components and colors.

From automotive parts to toys, this type of injection offers an efficient solution for manufacturing multi-layered items with different materials or color combinations seamlessly integrated into one finished product.

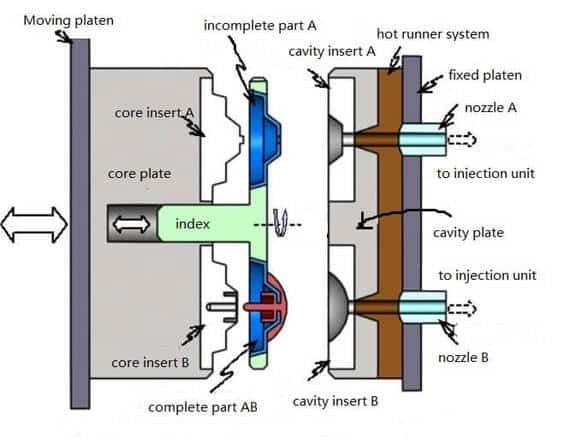

6. Two-shot injection molding

Two-shot injection molding offers myriad benefits to manufacturers, enabling them to create products with multiple colors or materials as well as more customized features.

This cutting edge process allows for textured surfaces, over-molded grips and even combinations of both thermoplastic and thermoset elements – a powerful combination resulting in the production of higher quality consumer goods such as toys and electronic devices.

7. Insert molding

Insert molding offers a unique and effective solution for manufacturers looking to create complex products that incorporate both metal or plastic components.

By injecting specialized materials around pre-molded inserts, the ability to craft items such as handles, hinges – and any other conventionally challenging item– is within reach of most production lines.

Conclusion

Liquid silicone injection molding allows manufacturers to customize the process according to their requirements.

No matter the material selection or shape requirements, precision levels or complexity desired – there’s a rubber moulding solution for any product.

By being aware of all available options, production teams can select an approach that maximizes efficiency in both time and cost savings when producing high-quality items with long shelf lives!
