How do you prevent stress marking in injection Moulding?

Table of Contents

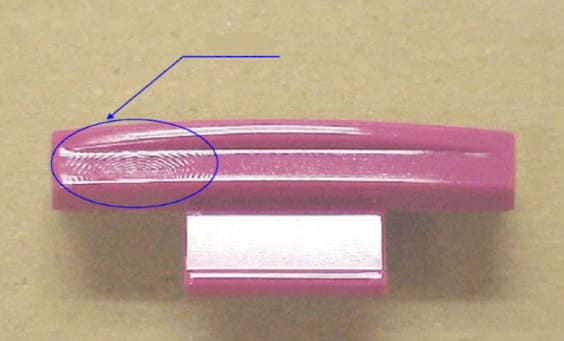

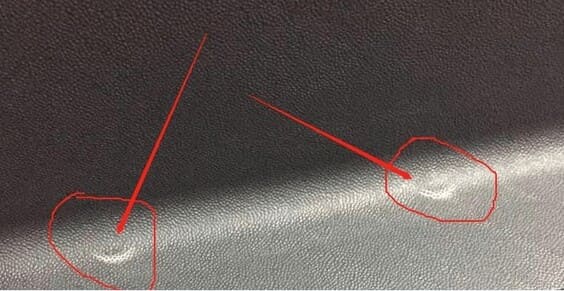

Stress marking is an often encountered flaw during the injection molding process. It manifests as visible discoloration or whitening on the surface of a part where the material has been stressed during molding.

Stress marking is caused by the release of internal stresses within a material, which can be due to various factors such as its properties, design flaws, and processing parameters.

Stress marking is typically considered undesirable, as it can detract from the appearance of a part and reduce its strength and durability. In certain instances, stress marking may also serve as an indication of potential failure points within the position.

Therefore, the prevention of stress marking in injection molding is essential for ensuring the quality and functionality of the final product.

High-quality products can only be achieved by avoiding stress marking

Injection molding is a high-quality process that requires you to avoid stress marking. The appearance and strength of a part can be affected by stress marking.

A sign of possible failure is visible discoloration or whitening due to stress marking. It can also compromise the product’s integrity. Sometimes, stress marking can lead to the complete failure of a part.

Customers concerned about the product’s aesthetic appeal may also be affected by stress marking. Stress marks on the final product can make it appear low-quality, even though that is not true. This can have a negative impact on the reputation of the manufacturer and could lead to lower sales.

It is essential to avoid stress marking in order to achieve high-quality products. Stress marking can It is essential to avoid stress marking to achieve high-quality products.

Stress marking can cause increased scrap rates, additional costs for rework and product recalls if it is not addressed. Manufacturers can decrease the risk of defects by avoiding stress marking. This will save them time and money over the long term.

Stress Markings in Injection Molding

Stress marking can be caused by design errors and material properties. Injection molding may experience stress marking due to a variety of reasons.

Material properties are an important consideration. Certain materials, like acrylic and polycarbonate, are more prone to stress marking than others.

These materials typically exhibit a greater coefficient of thermal expansion, leading to internal stresses that build up during cooling.

Stress marking can also be caused by additives or fillers in a material. Design flaws may also contribute to stress marking.

The shape and thickness of a part can influence how it cools or solidifies, potentially leading to internal stress that causes stress marking.

Stress markings are more prevalent in areas with sharp corners or thin walls, and gating and venting can also disrupt the cooling process and lead to stress marks.

Stress marking can also be affected by processing parameters. For instance, the cooling rate and pressure used during injection molding will have an impact on the material stress levels.

Temperature and pressure both have the potential for creating internal stress that could manifest as stress marking if not kept within acceptable limits. A cooling rate that is too high or too low could cause internal strain, while pressure has the opposite effect on material flow and leads to internal stresses.

Explain the impact of each factor on stress marking

Every factor that influences stress marking in injection molding has a different impact on the final product. Internal stresses can build up in the cooling process due to material properties such as high coefficients of thermal expansion, or the presence of fillers or other additives.

These internal stresses can cause material deformation and visible discoloration, or whitening of the final product. Because of their unique properties, certain materials like acrylic and polycarbonate are more susceptible to stress marking than others.

Stress marking can also be affected by design flaws. Stress marking is more common in parts with narrow walls and sharp corners. This happens because the material cools and solidifies at different rates depending on where it’s located.

Stress marking can result from internal stresses, which can cause the material’s deformation. Stress marking can also be affected by venting or gating, which can affect the flow of the material during injection molding.

Stress marking can also be affected by processing parameters. The material’s stress level can be affected by the cooling rate and the pressure used during injection molding

Stress marking can occur when the cooling rate is too high or too low. The same applies to pressure. Too high or low pressure can affect the flow of material and cause internal stress.

Prevention Strategies

Outline a series of preventative strategies such as optimizing design and adjusting processing parameters. It is especially important to avoid stress marking when injection molding products are manufactured.

Manufacturers have several strategies to reduce stress marking. One effective method is adjusting the molding parameters during injection molding. Another effective means of avoiding stress marking is reducing the cooling rate and pressure settings.

Optimizing the design of a part can help minimize stress marking. Avoid sharp corners or thin walls where possible; instead, opt for rounded edges whenever possible. Furthermore, to guarantee material flows freely through the part without creating internal stress buildup, gating or venting should also be optimized.

Another effective strategy to prevent the spread of this disease is using appropriate materials. Certain materials, like acrylic or polycarbonate, are more vulnerable to stress marking than others.

Manufacturers can reduce stress marking by selecting the appropriate material and taking into account its properties.

Manufacturers should implement rigorous quality assurance measures to quickly detect and rectify any stress marking issues.

Manufacturers can detect stress marks and correct them before shipping their products to customers by carefully monitoring production processes and inspecting finished items. Each strategy will be explained in detail, with examples of how it might work provided.

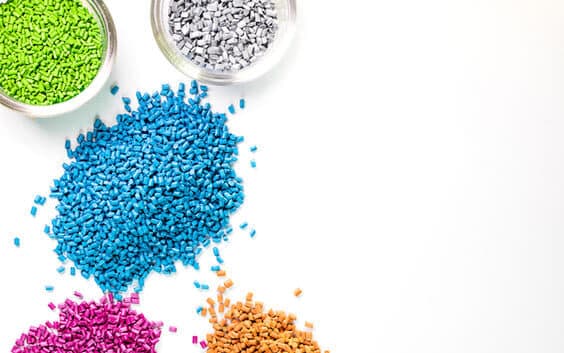

Material Selection

Injection molding stress marks can be avoided through careful material selection. Different materials are more prone to stress marks in different ways, so manufacturers must take into account these properties when selecting the ideal material for their application.

Materials with high coefficients of thermal expansion (such as acrylic or polycarbonate) are more prone to stress marking due to their tendency to contract and expand during cooling. Furthermore, materials like reinforced nylon have high stiffness which could lead to internal stresses that lead to stress marking if not designed with optimal stress minimization in mind.

Materials with lower coefficients of thermal expansion or stiffness (e.g. ABS and polypropylene) are less vulnerable to stress marking. When selecting materials, take into account application needs like chemical resistance, UV stability, and mechanical properties.

Stress marking is also affected by the molecular structure of a material. Semi-crystalline materials like nylon and polycarbonate, with random molecular arrangements, may cause internal stresses; on the other hand, semi-crystalline substances like acrylic and polycarbonate provide better dissipation of internal stresses.

Selecting materials that are less prone to stress marking

Selecting materials that are less susceptible to stress marking is essential in producing high-quality injection molding products. Here are some guidelines to take into account when making your selection:

Coefficient of Thermal Expansion (CTE): Select materials with a low CTE to minimize internal stresses that could cause stress marking. Polypropylene or ABS, for instance, have lower CTEs and thus are less vulnerable to stress marking than high-CTE materials like polycarbonate or acrylic.

Molecular Structure: Materials with more organized molecular structures, such as semi-crystalline materials like nylon, are less prone to stress marking due to their ability to better dissipate internal stresses. On the contrary, amorphous materials like polycarbonate or acrylic have random molecular structures which lead to internal stresses.

Stiffness: Materials with higher stiffness, such as reinforced nylon, can develop internal stresses that lead to stress marking if not designed for the minimal buildup of strains. Opting for materials with lower stiffness such as polypropylene or ABS helps reduce this risk of stress marking.

Chemical Resistance: Consider the chemical environment in which your part will be exposed and select a material with excellent chemical resistance to that environment. Materials not resistant to exposure can degrade and become more vulnerable to stress marking due to improper care.

Mechanical Properties: Select a material with the mechanical properties necessary for your application, such as strength, impact resistance, and wear resistance.

By following these guidelines, manufacturers can select materials that are less susceptible to stress marking and produce high-quality injection molding products that meet application demands.

Design Considerations

Design plays a significant role in preventing stress marking in injection molding. Design flaws can create internal stresses within the part, leading to stress marking. Here are some ways in which design can impact stress marking:

Wall thickness: Uneven wall thickness can cause uneven cooling and create internal stresses, leading to stress marking. Designing the part with uniform wall thickness can help minimize the risk of stress marking.

Gate location: The location of the gate, where the molten plastic enters the cavity, can create internal stresses that cause stress marking. Gate location should be carefully considered and placed in a location that minimizes internal stresses.

Sharp corners and edges: Sharp corners and edges can create stress concentrations, leading to stress marking. Designing the part with rounded corners and edges can help distribute the internal stresses evenly, reducing the risk of stress marking.

Weld lines: Weld lines, where two flows of molten plastic meet and bond, can create internal stresses that cause stress marking. Designing the part with the weld lines in non-critical areas can help minimize the risk of stress marking.

Draft angles: Lack of draft angles can create internal stresses during ejection, leading to stress marking. Designing the part with appropriate draft angles can help facilitate ejection and minimize the risk of stress marking.

By considering these design factors, manufacturers can optimize the design of the part to minimize internal stresses and reduce the risk of stress marking, leading to high-quality injection molding products.

How to design parts that are less prone to stress marking?

When designing parts for injection molding, it is essential to consider the potential for stress marking and design the part accordingly. Here are some guidelines to follow when designing parts that are less prone to stress marking.

Uniform wall thickness: Design the part with uniform wall thickness to ensure even cooling and prevent internal stresses.

Avoid sharp corners and edges: Use rounded corners and edges to distribute the internal stresses evenly and reduce the risk of stress marking.

Optimize gate location: Carefully consider gate location and place it in a location that minimizes internal stresses.

Minimize weld lines: Design the part to minimize the number of weld lines or place them in non-critical areas to reduce the risk of stress marking.

Incorporate appropriate draft angles: Use appropriate draft angles to facilitate ejection and prevent internal stresses during the ejection process.

Material selection: Select materials that are less prone to stress marking, such as materials with higher elongation properties.

Rib design: Consider incorporating rib design to distribute stresses evenly and prevent internal stresses.

Reinforcement: Consider incorporating reinforcement in the design, such as ribs or gussets, to reduce the risk of stress marking.

By following these guidelines, designers can optimize the design of the part to minimize internal stresses and reduce the risk of stress marking, leading to high-quality injection molding products.

Stress Marking Testing

To ensure quality, injection molding products must be tested for stress marking. The polariscope test is one of the most popular tests. It uses polarized lighting to detect areas of stress in the material.

This involves placing the part between two filters that are polarizing and then observing the stress patterns created by the part being exposed to polarized sunlight. These stress patterns can be used to analyze any issues in the part design and processing parameters that could contribute to stress marking.

The burst test involves pressurizing the part to fail. This test is useful in identifying areas that are susceptible to stress marking. It may also require modifications to design parameters.

Analyzing the injection molding process parameters is important in order to identify potential problems. Stress marking can be caused by factors such as injection pressure, mold temperature, cooling time, and injection speed. Potential issues can be identified by analyzing these parameters and making the necessary adjustments before the final product is manufactured.

How to deal with issues found during testing?

It is crucial to immediately address stress marking issues discovered during testing to ensure quality final products. Optimizing processing parameters such as mold temperature, cooling time, injection speed and cooling time is one strategy. It is possible to reduce stress and prevent stress marks from occurring by making the appropriate adjustments.

Modifying the part design is another option. You can modify the part’s shape or thickness to reduce stress concentrations. Or, you could add fillets or radii to decrease stress concentrations. The design can also be improved by adding ribs and stiffeners. This will help to distribute stress evenly across the part, which reduces the possibility of stress marking.

It is important to choose the right material in order to prevent stress marking. Materials with a lower modulus, like polypropylene or polycarbonate, are more susceptible to stress marking. Materials with high impact strength and elongation of break can prevent stress cracking and decrease the chance of stress marking.

Sometimes, additional testing and simulations may be required to determine the root cause of stress marks and to develop effective solutions. Designers and manufacturers can take a systematic approach when addressing stress marking issues. This will ensure that the products they produce meet high-quality standards and are free of defects.

Conclusion

Stress marking must be avoided in order to produce high-quality injection molded products. Not only does stress marking affect the aesthetic of a finished product, but it can also compromise its structural integrity and performance. This is especially crucial for parts that will be exposed to extreme stresses or pressure such as aerospace or automotive components.

Stress marking can have an adverse effect on the production process. Parts that have stress markings may need to be reworked or scrapped, leading to higher costs and longer lead times. Sometimes the marks may not be visible right away, leading to hidden defects that are only discovered after assembly or installation has taken place.

Designers and manufacturers can ensure their products are free from defects and meet high-quality standards by taking steps to prevent stress marking. Doing so will lead to increased customer satisfaction, higher sales figures, as well as a better reputation on the market. Injection molding success relies on eliminating stress marks from products.
