How to reduce cycle times in injection molding

Table of Contents

Introduction

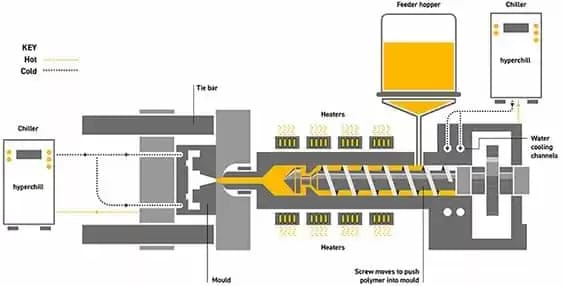

injection moulding is a widely used manufacturing process in which molten plastic material is injected into a mold cavity under high pressure. The plastic then solidifies into the desired shape, creating a plastic component or product. Cycle time refers to the time it takes to complete one injection molding cycle, including the injection stage, cooling stage, and ejection stage.

Cycle time is a critical factor in the injection molding process as it impacts the production efficiency and the cost of manufacturing. Longer cycle times increase energy and labor costs and reduce the number of products that can be manufactured in a given time frame. Therefore, it is essential to reduce cycle times to improve production efficiency and profitability.

In this article, we will discuss various factors that affect cycle time in injection molding, methods for determining cycle time, and strategies for reducing cycle times. We will also explore the benefits of conformal cooling for improved injection molding cycle time.

II. Factors affecting cycle time in injection molding

Injection molding process conditions

Cycle time in injection molding depends on a number of factors. One major factor is the process conditions, which include:

1.Cooling Time: Cooling time refers to the duration of time it takes for molten plastic to solidify and reach its desired hardness before being expelled from the mold. This time can vary depending on factors such as channel design, fluid temperature, and plastic wall thickness.

2.Injection Time: Injection time refers to the duration of time it takes for plastic material to be injected into a mold. Its duration is determined by factors such as mold size, material viscosity, and the capabilities of your injection molding machines.

3.Material Temperature: The material’s temperature is an important factor that impacts cycle time. To achieve proper viscosity and flow rates during injection, the material must be heated to a specific temperature which can be affected by both the machine’s settings as well as ambient conditions.

4.Flow Characteristics: The flow characteristics of plastic materials can have an effect on cycle time. Different plastics have differing flow rates, which affect filling and packing stages. Higher fill pressure rates reduce this wait time significantly.

Injection molding requires optimizing process conditions to reduce cycle time. By decreasing cooling time, injection time, and material temperature, manufacturers can achieve shorter injection molding cycle times and improved production efficiency.

Operation conditions

Operation conditions refer to the environment in which an injection molding process takes place. Temperature, humidity and air quality can all influence cycle time. Therefore, it is essential that these conditions be optimal in order to reduce turnaround times and prevent mold damage.

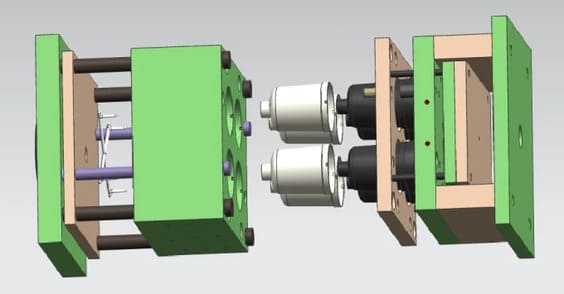

Mold design and tooling

Mold design and tooling have a significant effect on cycle time. A well-designed mold with adequate cooling channels can significantly reduce cooling times while increasing efficiency throughout the molding process. Furthermore, using a nozzle force reducer inside of the mold reduces excess movement, further increasing efficiency throughout production.

Material selection and processing

Material selection and processing can significantly influence cycle time. Different materials have different melt temperatures and flow characteristics that could significantly lengthen or shorten the process. Optimizing material selection and processing will enhance filling time as well as reduce cooling times, ultimately decreasing overall cycle duration.

Optimizing all factors of injection molding production, from mold design and tooling to material selection and processing, can optimize efficiency and reduce cycle times. By minimizing both time and material requirements for each cycle, manufacturers can boost their cost-efficiency as well as speed up production.

III.Strategies for reducing cycle times

Optimizing Cooling Time

Cooling time is a crucial factor in the production cycle. By optimizing cooling channels’ design and the temperature of their cooling fluid, manufacturers can reduce cooling times and shorten production cycles.

Minimizing Filling Time

Optimizing injection pressure and speed can reduce filling time, thus increasing production efficiency.

Appropriate Pause Time

Setting an appropriate pause time during injection molding can help reduce cycle time. It should be set at the minimum required for materials to fill the mold completely without causing any excessive movement.

Time Optimization in the Injection Stage

Optimizing the injection stage can be done by adjusting its speed, pressure and duration. Doing so helps reduce cycle time and boost production efficiency.

Reducing Excess Movements

Excess movements during the molding process can tack on extra time to the cycle time and decrease production efficiency. Manufacturers can reduce these errors by optimizing injection mold design and tooling as well as decreasing nozzle force in order to reduce mold-reducing motions.

These strategies can significantly reduce cycle time in injection molding, improving production efficiency and cutting energy and labor costs. By minimizing the time and material input into each cycle, manufacturers can boost both their cost- and time-efficiency of the production process.

IV. Conformal cooling for improved cycle times

Conformal cooling is an injection molding technique used to reduce cycle times and boost production efficiency. Unlike conventional cooling channel, which are straight and uniform, conformal cooling channels follow the contours of a mold surface for optimal plastic material cooling process.

Conforming cooling offers many advantages to plastic materials. By providing uniform cooling to plastic material, conformal cooling reduces cooling time and, consequently, cycle time. This can result in higher production efficiency, reduced energy and labor costs, as well as improved product quality.

Implementing conformal cooling in mold design necessitates advanced manufacturing technologies, such as 3D printing and computer-aided design (CAD). The mold must be precisely modeled, with its cooling channels’ geometry optimized for efficient and uniform cooling of plastic material.

Implementing conformal cooling in mold design can present its own set of challenges, but the rewards are immense. Manufacturers who adopt conformal cooling can drastically reduce cycle time for injection molding operations, boost production efficiency and boost profitability by optimizing materials used per cycle. By minimizing costs and time required per cycle, manufacturers can boost profits while giving themselves a competitive edge.

V. Conclusion

Finally, decreasing cycle times in injection molding is essential for improving production efficiency, saving energy and labor costs, and increasing profitability. By optimizing the injection molding process conditions, mold design/tooling, material selection/processing, and operation conditions manufacturers can reduce cycle time while increasing both cost- and time-efficiency of their operations.

Some effective strategies for cutting cycle times involve optimizing cooling time, minimizing filling time, setting appropriate pause times during injection stages and eliminating extra movements. Furthermore, applying conformal cooling in mold design can significantly reduce cycle times and boost production efficiency.

Reduced cycle times in injection molding are essential for manufacturers to remain competitive in a rapidly transforming market. By shortening each cycle’s duration and material requirements, companies can increase production efficiency and profitability while cutting energy and labor expenses.

Finally, we recommend manufacturers implement strategies for cutting cycle times and implementing conformal cooling in order to improve cost- and time-efficiency, enhance production efficiency, and ultimately increase profitability.
