What Are the Benefits of Hot-Runner Injection Molding?

Table of Contents

Introduction

A. Brief overview of plastic injection molding

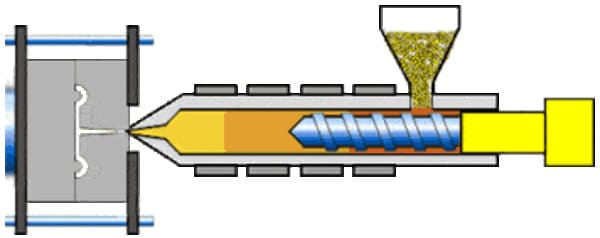

The plastic injection molding process is a widely-used manufacturing process for producing a diverse range of plastic components across various industries. It involves melting plastic granules, injecting the molten material into a mold, cooling it to solidify the desired shape, and then ejecting the finished part. This versatile process allows for the creation of intricate and complex plastic parts with high precision and repeatability.

B. Importance of hot-runner and cold-runner systems

In the world of plastic injection molding, the choice between hot-runner and cold-runner systems plays a crucial role in determining the efficiency, cost, and quality of the final product. Both systems serve as a means to transport the molten plastic from the injection molding machine nozzle to the mold cavities. However, they differ in their approach and characteristics, resulting in distinct advantages and drawbacks. The decision to use a hot-runner or cold-runner system depends on factors such as production volume, material type, part complexity, and budget constraints.

II. Hot-Runner Injection Molding

A. Define and explain hot-runner systems

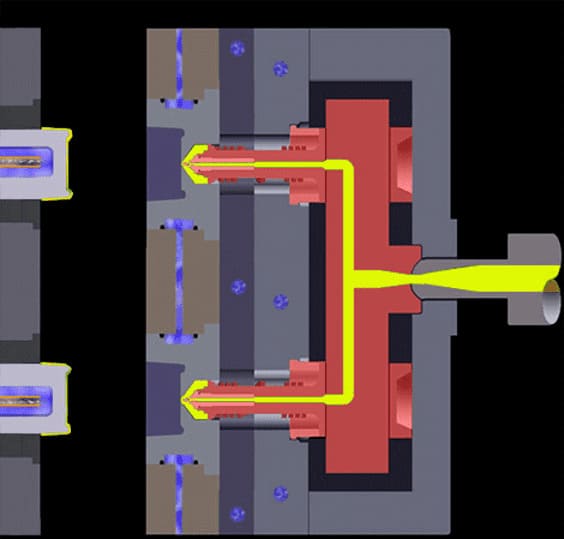

Hot-runner systems are cutting-edge injection molding technologies designed to keep plastic material in a molten state throughout the entire molding process. This is achieved by heating the runner channels that transport the plastic from the molding machine nozzle directly into mold cavities. In comparison to traditional cold-runner systems, hot-runner systems offer increased efficiency, reduced waste generation, and better part quality.

B. Components of a hot-runner system

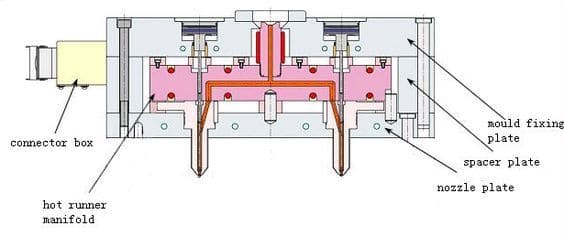

Hot Runner Manifold: The hot-runner manifold is the hub of a hot-runner system. It acts as an intermediary, channeling plastic from the molding machine nozzle evenly into individual mold cavities through hot nozzles. Heated for optimal flow control, this manifold maintains plastic in its molten state until it leaves your control valves.

Hot Nozzles: Hot nozzles are heated channels connecting a hot runner manifold to mold cavities, responsible for delivering molten plastic at an even temperature. Hot nozzles may come equipped with various gates such as hot tip gating or valve gating depending on the application and part requirements.

Temperature Controllers: Temperature controllers are essential components of a hot-runner system, monitoring and adjusting the temperature of both the manifold and hot nozzles. By maintaining consistent temperatures throughout the process, temperature controllers guarantee optimal flow and prevent plastic material from solidifying prematurely in runner channels. cold runner mold .

C. advantages of hot runner

HOT RUNNER IS A COMPONENT THAT PROVIDES COMPLIANT SUPPORT FOR DOMESTIC COMPUTING EQUIPMENT FOR COMPUTER CONTROLS ENVELOPES EN PIECES EN CACHE EN DIAGERRANT EN DOMICILE ET ISOLATIQUE.

Reduced Cycle Time: Hot-runner system drastically reduce cycle times by eliminating the need for cooling and solidifying runner channels, leading to faster production rates and greater overall productivity.

Minimal Material Waste: Hot-runner systems minimize material waste by keeping plastic in a molten state within their hot-runner molds channels. This eliminates the need for additional regrind or disposal of solidified runners and sprues, leading to a more sustainable production process.

Improved Part Quality: Hot-runner systems offer superior part quality due to the consistent temperature maintained throughout the process. This results in smooth plastic flow, improved dimensional stability, fewer cosmetic flaws, and minimal warping or shrinkage.

Versatility and Multi-cavity Capability: Hot-runners systems can handle a wide variety of plastic materials, including high-performance engineering thermoplastics. Furthermore, they can be customized for multi-cavity molds or family molds, making them suitable for producing parts with various shapes.

Reduced Labor and Maintenance Costs: Hot-runner manufacturers are designed for maximum efficiency, meaning less hands-on labor is needed to keep the system running smoothly. Furthermore, since there are fewer moving parts and no need to manually trim runners or sprues, there’s less waste generated which means lower wear-and-tear on equipment, extending its lifespan.

III. Cold-Runner Injection Molding

A. Definition and Functioning of Cold-Runner Systems

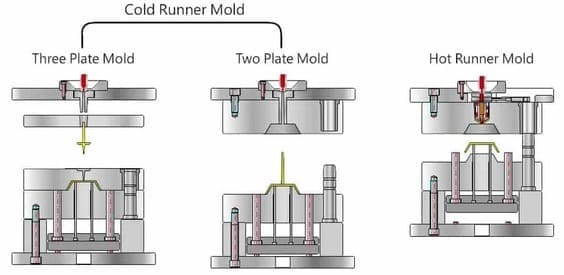

Cold-runner systems are classic injection molding processes that transport molten plastic from the molding machine nozzle to mold cavities through unheated cold runner mold channels. As it cools and solidifies in these channels, solid runners and sprues form that must be removed and discarded or recycled after molding.

B. Components of a Cold-Runner System

1. Cold Runner Plate: The cold runner plate contains the channels that direct molten plastic from the molding machine nozzle into mold cavities. This plate is unheated, allowing the plastic to cool and solidify as it passes through its channels.

2. Mold Cavities: Cold runner molds cavities are the hollow spaces within a mold that determine the shape and size of the final part. Molten plastic fills these cavities before solidifying to form the desired result.

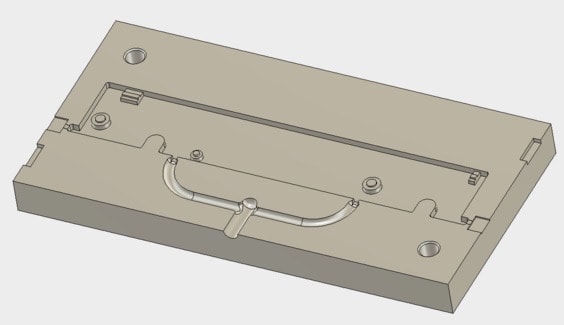

3. Sprues and runners: Sprues and runners are the channels through which molten plastic flows from an injection molding machine nozzle into mold cavities. In cold-runner systems, these channels remain unheated so that plastic can cool and solidify before it is ejected from the mold.

C. Comparing Cold Runner Systems

1. Lower Initial Cost: Cold-runner systems typically come at a lower cost than their hot-runner counterparts, making them an appealing option for manufacturers with tight budgets or small production volumes.

2. Simplicity and Ease of Use: Cold-runner systems are relatively straightforward and user-friendly, with fewer components and temperature controls to manage. This simplicity makes them ideal for less complex parts or short production runs.

3. Material Restrictions: Cold-runner systems may not be ideal for certain materials, such as those with narrow processing windows or high-performance engineering thermoplastics. The cooling and solidification of plastic in runner channels can result in material degradation or inconsistent part quality.

4. Increased Waste and Longer Cycle Times: Cold-runner systems generate solidified runners and sprues that must be removed and either discarded or recycled, leading to increased disposal fees and material costs. Furthermore, the cooling and solidification of plastic in runner channels contribute to longer cycle times than hot-runner systems.

IV. Assessing Hot-Runner and Cold-Runner Systems Comparatively

A major hot-runner advantage: improved efficiency and material savings

Hot-runner systems offer greater efficiency and material savings compared to cold-runner systems since they maintain a consistent temperature throughout the molding process. This guarantees an even flow of plastic through the mold, leading to reduced cycle times and minimal material waste.

B. Major Cold-Runner Advantage: Lower upfront cost and ease of implementation

Cold-runner systems tend to have lower initial costs and are simpler to operate than hot-runner systems, making them an appealing option for manufacturers with budget constraints or those producing simpler parts in smaller volumes.

C. When selecting between hot and cold-runner systems, factors to consider include:

1.Production Volume

Hot-runner systems are typically preferred for high production volumes due to their improved efficiency and shorter cycle times. Cold-runner systems may be more cost-effective for smaller runs or prototyping projects.

2.Material Type

Hot-runner systems can handle a wider variety of materials, including high-performance engineering thermoplastics. Cold-runner systems may not be ideal for certain materials with narrow processing windows or those susceptible to degradation during cooling.

3.Part Complexity and Quality Standards

Parts with intricate details or those with stringent quality specifications often benefit from the consistent temperature control provided by hot-runner systems, which helps minimize defects.

4.Budget Constraints

Cold-runner systems offer a lower initial cost, making them an appealing option for manufacturers with tight budgets. However, it is essential to take into account long-term material and maintenance expenses when making a final decision.

V. Concluding Statement

A. The Importance of Selecting the Appropriate Runner System for Specific Applications

Selecting the ideal runner system is essential for optimizing efficiency, part quality, and cost-effectiveness in injection molding. Manufacturers must carefully take into account factors like production volume, material type, part complexity, and budget constraints when choosing between hot-runner and cold-runner systems.

B. The growing adoption of hot-runner technology

As the manufacturing industry evolves, hot-runner mold technology is becoming an increasingly attractive option for manufacturers across various sectors due to its numerous benefits such as reduced cycle times, minimal material waste, improved part quality, and versatility.

C. Prospects for the Injection Molding Industry

The injection molding industry is constantly developing, driven by advances in technology and materials. As hot-runner systems continue to gain popularity, manufacturers can expect further improvements in efficiency, sustainability, and part quality that will shape the future of plastic injection molding.
