Injection molding is a part of the plastic working industry. But the cost of making injection molds can be huge. There are many factors that affect the price of injection molds. In this long blog post, we explain and analyze the factors that affect the price of injection molds. This information can be very useful for injection mold manufacturers, engineers, and executives who buy these tools.

Injection molding is a big deal in modern manufacturing. It can make a ton of parts really fast, with great precision and repeatability. Here’s how it works: you force a liquid or semi-fluid at high pressure into a chamber or mold, and it hardens into the shape you want. The cost to run an injection mold is pretty low, but the cost to tool up for injection molding is usually pretty high. Knowing what drives the cost of an injection mold is critical to controlling costs and making the best decision.

What Variables Affect the Cost of Injection Molds?

Material Selection

Material selection is a big factor in how much an injection mold costs. Different materials can cost a lot more or a lot less, and they can do different things and be used in different ways.

Material Types

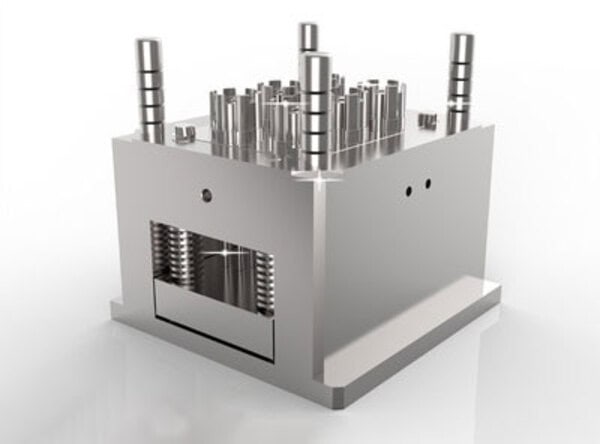

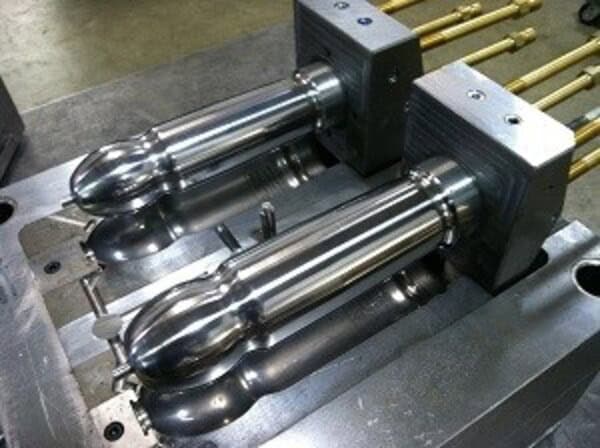

1. Steel: Steel is the best material to use for making molds because it is hard and lasts a long time. Steel molds are good for making a lot of parts because they can be used many times without getting worn out or bent. Some types of steel that are used for making molds are pre-hardened steel, hardened steel (like P20 steel), and high-hardness steel (like 420 steel). It is important to choose the right kind of steel to use because it can make the cost of making the mold better.

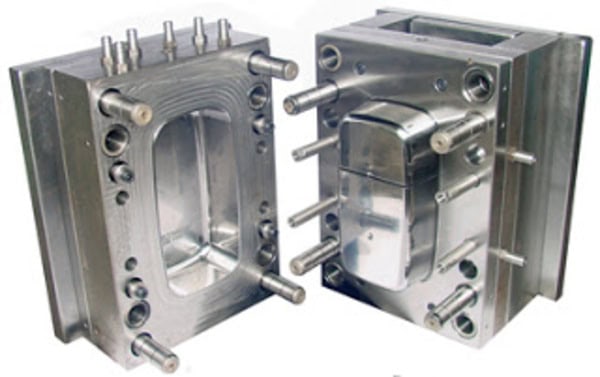

2. Aluminum: Aluminum is typically used for prototype molds and small to medium scale productions. Aluminum molds, like light metal molds, are lightweight, easy to machine, and easy to modify, so they are used in casting processes where frequent modifications are needed. Aluminum molds are not as durable as steel molds and may need to be replaced sooner, especially when higher production volumes are involved.

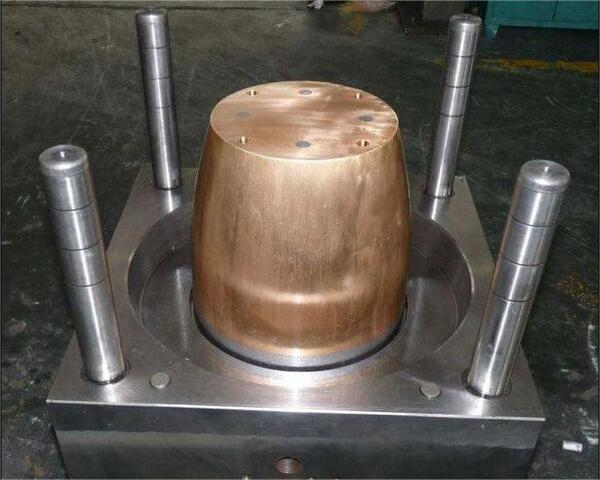

3. Beryllium Copper Alloys: Beryllium copper alloys are also good because they give you high thermal conductivity and minimal cooling and cycle time. This material is normally used in constructions that need to cool faster in the molds and have high production efficiency. While beryllium copper may require a bigger investment up front, its ability to make you more efficient and save you money over time makes it a good option in some uses.

Material Properties

The physical and mechanical properties of each material dictate certain requirements for the design of molds and parts, manufacturing methods and performance. For instance, steel’s hardness and tensile strength make it perfect for dealing with high pressures and temperatures during molding, while aluminum is lighter and a better thermal conductor, making it perfect for quick prototyping and small-series production.

Cost Impact

Steel molds are usually more expensive because they are a little stronger and can be used for a longer time with high production runs. The lower cost and ease of machining aluminum makes it more attractive for initial investments, especially in low-volume and rapid development situations. Some alloys of beryllium copper have good thermal conductivity, so their use can reduce production times in some cases and thus provide long-term savings.

Complexity of Mold Design

The more detailed the injection mold design, the more it costs to make. The more complicated the design, the more time and special tools and machines you need, which makes it more expensive.

Part Geometry

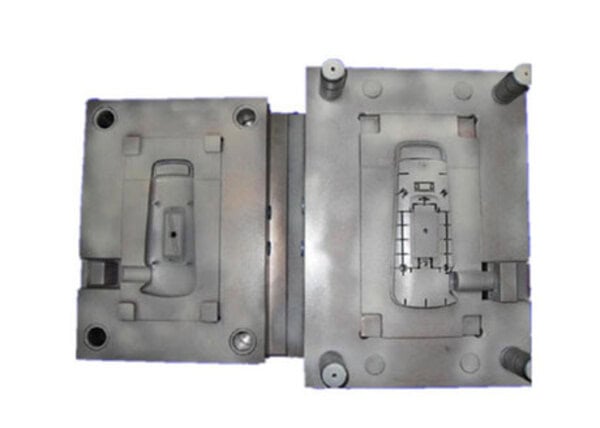

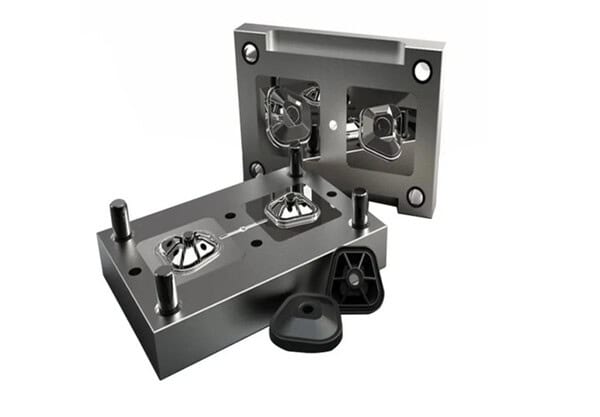

Part geometry is one of the first things to consider when designing a mold. It determines how complex the mold will be. Simple geometries don’t cost much to design or make. Complex geometries take longer to design and make. Parts with intricate shapes and/or contours and/or with blind holes and so forth require very high precision in machining. This is done with more sophisticated and expensive machines. This makes the injection mold manufacturing process more expensive.

Number of Cavities

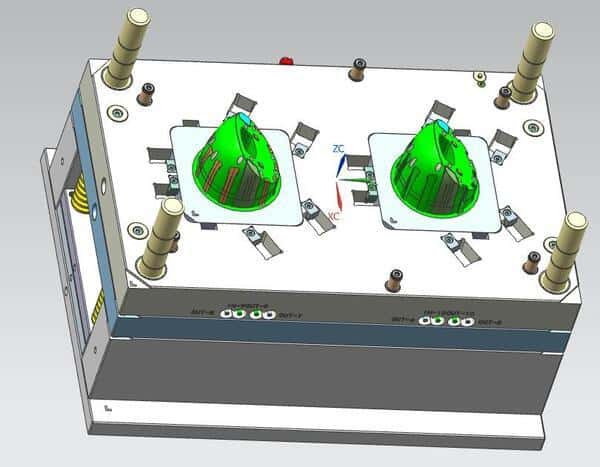

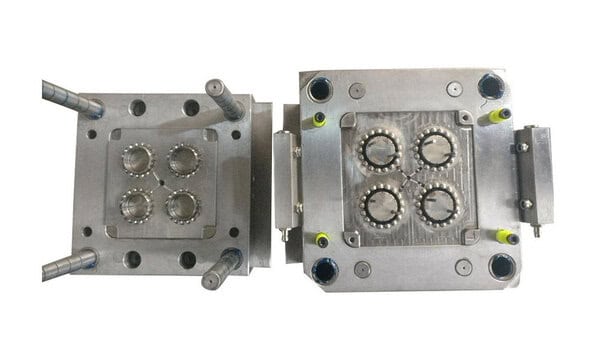

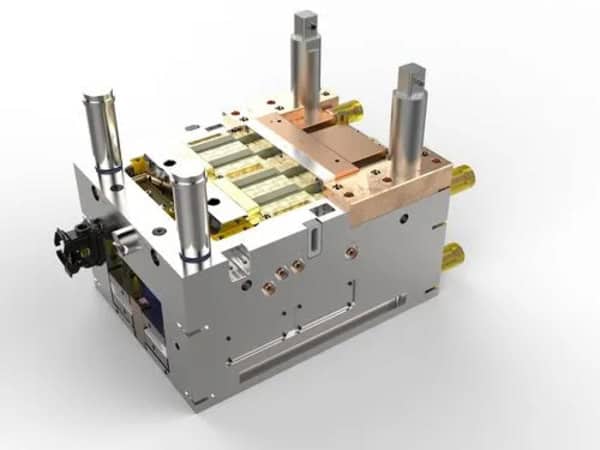

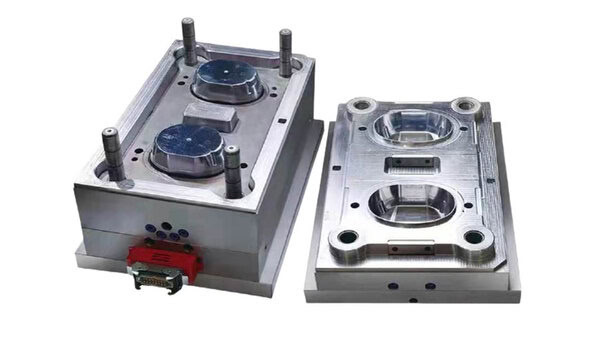

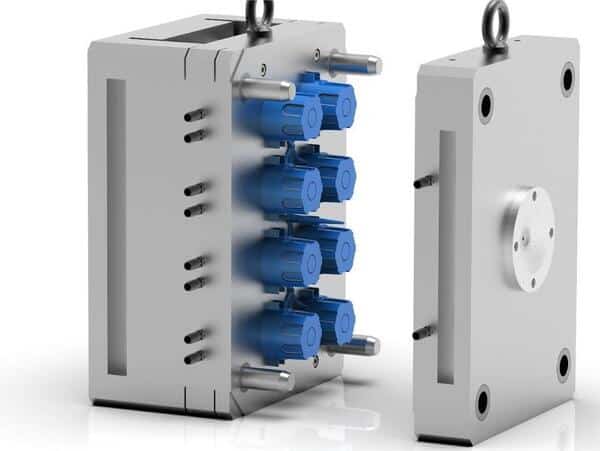

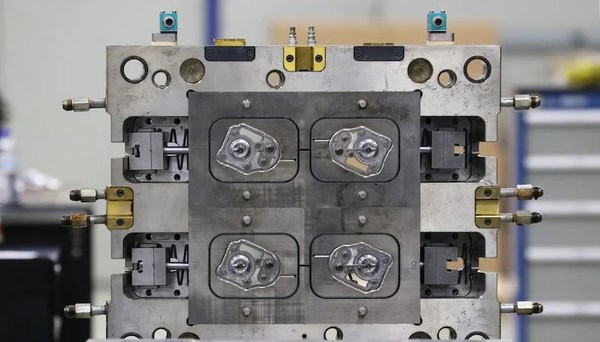

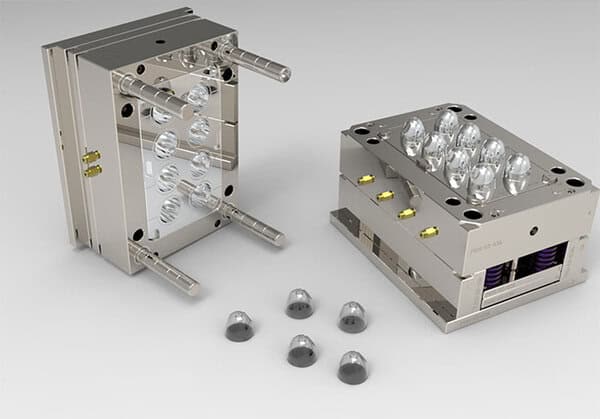

Molds can be single-cavity or multi-cavity to make multiple parts in one go. Multi-cavity molds help you make more parts faster, but they’re also more expensive and harder to make. Designing and making multi-cavity molds is a complicated process that requires a lot of engineering skill and high-precision production methods to make sure all the cavities make the same parts.

Mold Features

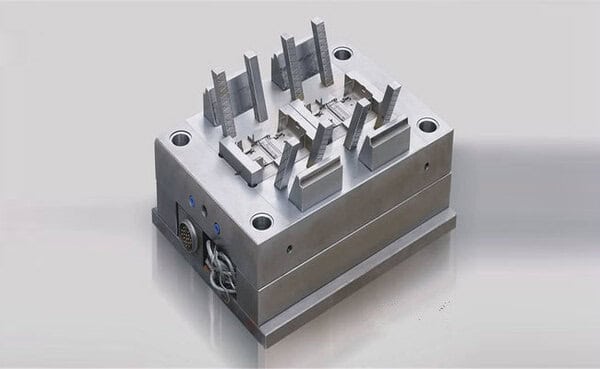

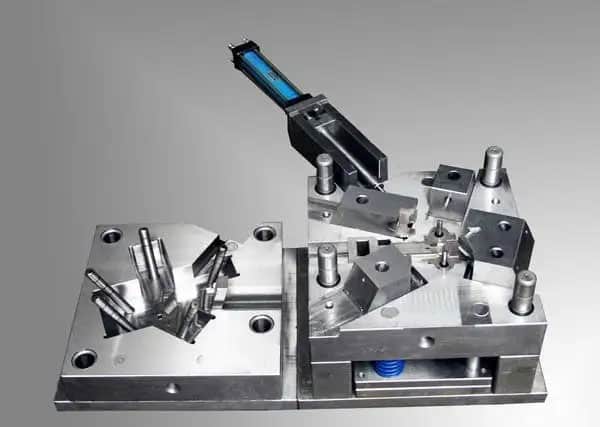

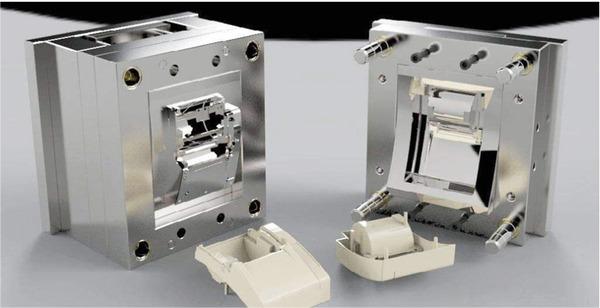

There are also other features added to the mold design, for example undercuts, threads, side actions which enhance complexity of the mold. Such features are usually used in products that demand complex machining and have more moving parts like slides, cams, or similar devices to produce the desired shape and size of a particular component or assembly. They also contribute to the overall design and manufacturing complexity, increase maintenance/operational costs of the resulting products and/or systems.

Mold Size and Precision

The size of the mold and the precision required are two other important costs. Bigger molds and higher precision requirements can be very expensive.

Tolerances

The final part’s exactness depends on the mold’s tolerances. Lower tolerance means more accuracy, but it’s more expensive because the machining processes have to be more precise and detailed. This is because high-precision molds require more high-precision machines and tools, take more time, and have more process steps to make sure that all the details on the product meet the designed specifications.

Surface Finish

The surface finish requirements of molded parts affect how the mold should be treated. Higher surface finish quality requires additional finishing operations, which can increase costs. Surface finish is important in some applications because it affects how the mold looks and how well the part releases and performs.

Production Volume

The cost and type of mold depend largely on the volume of production. Low and high production demands are also considered as two different scenarios involving different kinds of demands toward the involved requirements of the molds.

High-Volume vs. Low-Volume Production

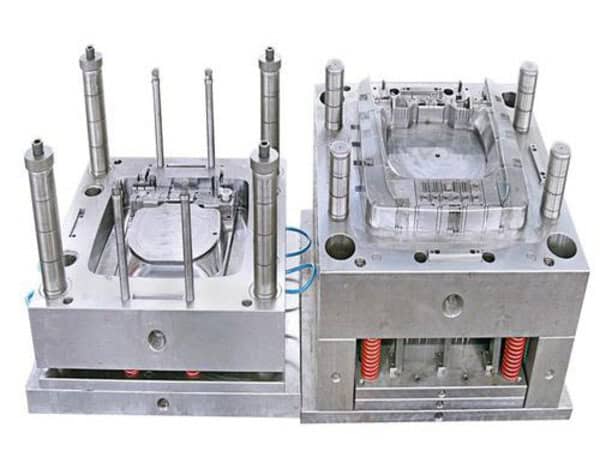

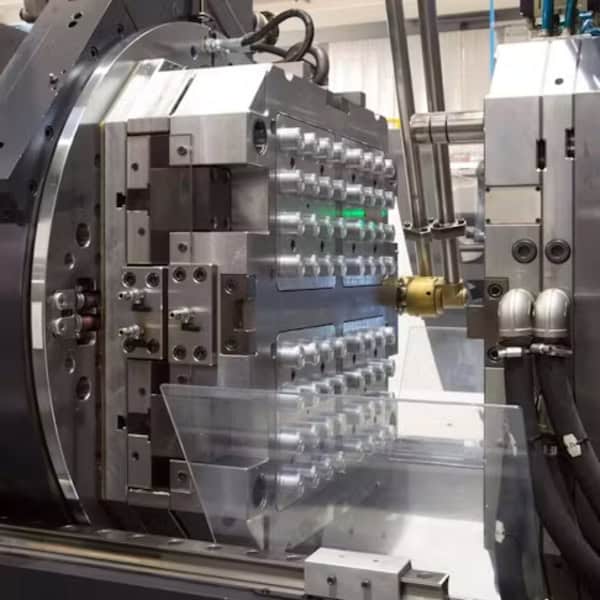

When you’re making a lot of something, you need a mold that can take a beating. You want a mold that can run for a long time without a lot of maintenance or replacement. These molds are usually made out of high-strength steel. They cost more up front, but they’re cheaper in the long run if you’re making a lot of the same part.

If you’re doing low-volume production, you might want to go with lower-cost molds and materials like aluminum or other quick-forming materials. These molds take less time to make, cost less up front, and are great for rapid prototyping and first articles. They’re often used on short-run production and are good for fast prototyping design iterations. But they don’t last as long, so you might have to replace them or maintain them more often.

Cost Impact

High-Volume Molds are built to last for a significant number of cycles and incorporate design features to improve efficiency such as faster cycles, requiring less maintenance. The initial price may be high but the production cost is lowered over time. Low-volume molds focus on initial mold cost and not necessarily long-term use and wear of a mold. Low-volume molds are most suited to short-run projects or for prototype development.

Mold Base and Components

We learned that the choice of mold base and components has a big impact on mold costs. Using standard mold bases and high-quality components not only makes the molds perform better and last longer, but it also costs more up front.

Standard vs. Custom Mold Bases

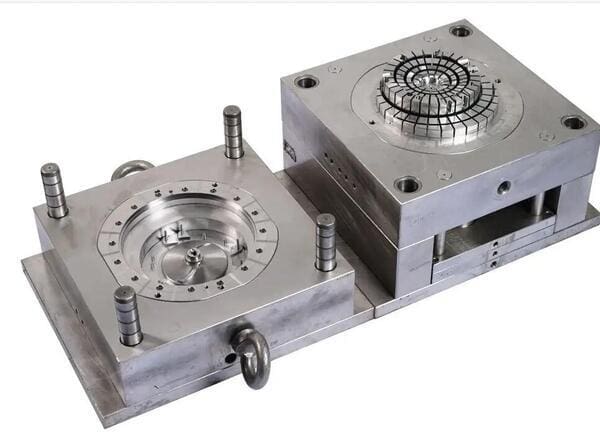

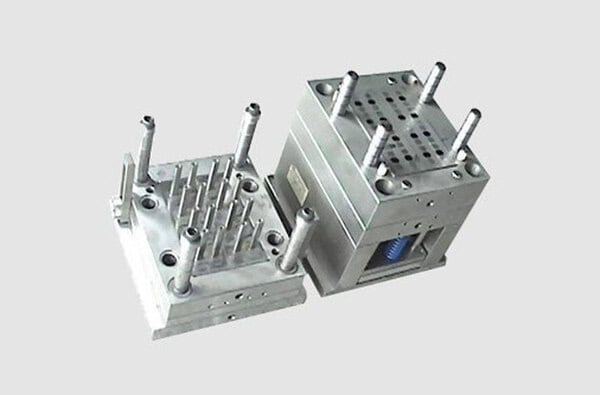

Standard mold bases are usually pre-made and come in various sizes. They are cheaper than custom-made mold bases, which are made specifically for a particular project. Using standard mold bases has the advantages of being cheaper and quicker to get, while custom mold bases have more design options and can be more appropriate.

Component Quality

The type and quality of mold components such as ejector pins, cooling channels, and guide rails have a direct impact on the performance of the mold and the useful life of the mold. Incorporating highly durable and high-quality components may increase the initial cost, but it will save you more money in maintenance and replacement costs. Selecting good materials can improve the overall performance of the mold and increase the efficiency of production by eliminating costly quality control checks, reducing downtime, and increasing the life of the mold.

Tooling and Machining

The price of a mold depends on the technology you choose to make the mold. There are different ways to make a mold, and each way has different ways to make the tooling and to machine it.

CNC Machining

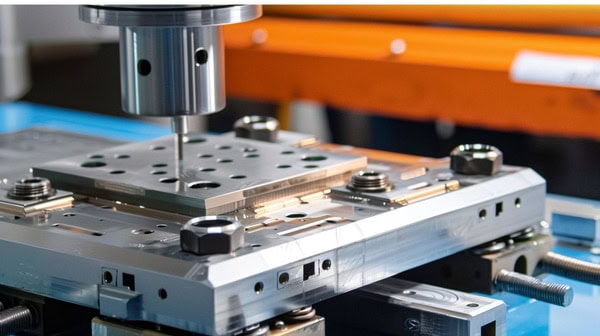

Mold manufacturing uses CNC technology because it’s accurate and repeatable. Costs depend on the intensity and the longer run factors of CNC machining. CNC machines and machining programs that use high-precision cutters are time consuming and more skill intensive and therefore more expensive in manufacturing costs.

EDM (Electrical Discharge Machining)

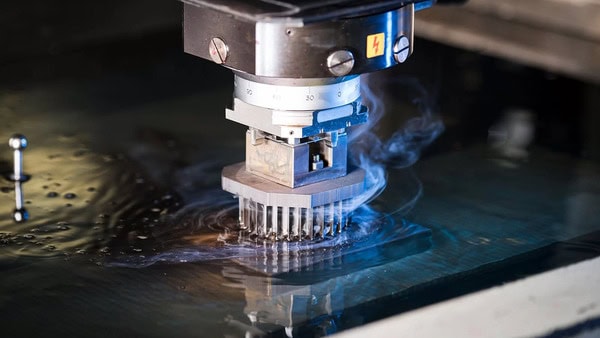

EDM is used to create intricate and complex parts that are difficult to make with traditional machining methods. However, EDM is slow and expensive. EDM requires special tools and techniques that take extra skill and equipment, which drives up the cost of making the part. But without EDM, you couldn’t make some of the complex parts you need.

Additive Manufacturing

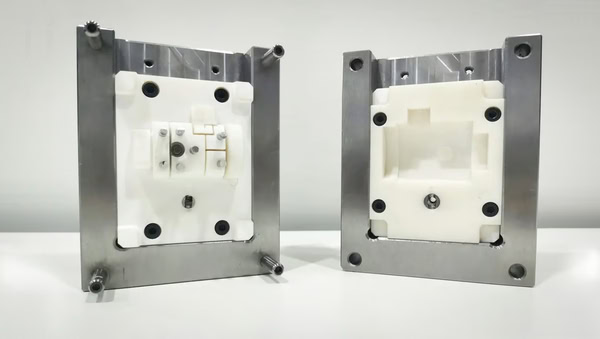

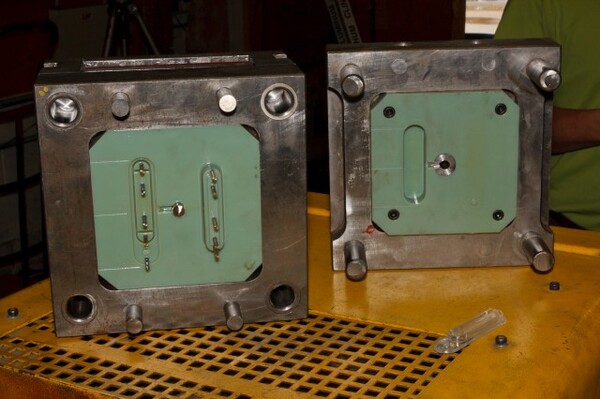

3D Printing: The rise of additive manufacturing for prototypes and molds. It should be noted that this technology is still developing and can be beneficial by helping to save costs in certain applications. AM facilitates the quick development of complex geometries and architectures, as well as fast manufacturing, which will save machining time and costs, but it might be less cost-effective for mass production.

Expertise of Mold Makers

The mold maker’s skills and knowledge are a big deal when it comes to how much the mold costs and how good it is. Picking the right mold maker will make sure you get a good mold that works right.

Experience and Reputation

The cost of molding depends on a lot of things. It depends on how good the mold maker is and how well known they are. The better the mold maker, the more expensive they are, but they give you a warranty on the mold. They guarantee that the mold will work and that it will work for a long time. If you pick a good mold maker, you won’t have to pay for any mistakes they make or for any extra time they take to design and make the mold.

Location

Where you get your molds made will affect how much you pay for them. Molds made in countries with lower labor costs will be cheaper, but they can also cause big problems with quality and delivery times. So, you have to find a good balance between cost and the risks of quality and logistics when you’re picking a supplier.

Delivery Time and Requirements

Shipping lead time and specifications also affect the overall cost of tooling for molds. Expedited or special delivery may incur extra charges.

Rush Orders

Some jobs are needed more urgently than others and need to be delivered in a shorter time, hence they attract additional charges to the normal production hours and schedule. Some customers may require a rush order that would require changing the production schedule, which can lead to higher costs for manufacturers and even affect the quality of the product or time of delivery.

Standard Delivery Time

Standard delivery times prevent any additional cost increase due to inefficiency in scheduling, saving cost across all. Reasonable delivery times also allow manufacturers time to properly test the molds and confirm that the mold performance can be relied upon.

Maintenance and Durability

When you think about cost, you also need to think about how long the product will last. Good quality molds that last a long time mean you don’t have to spend as much money on maintenance and replacing them. That’s good value for your money.

Mold Lifespan

Another very important factor is the average lifespan of a mold. Molds with higher durability can go through many cycles without much damage, and they tend to bring more value in the long run even though they may be expensive at the beginning. Selecting materials and parts that can last for a long time will also help increase the units’ working life and save costs on mold maintenance and replacement.

Maintenance Costs

So, it is a good idea to maintain your molds. How often and how much you have to do depends on the design of the mold and what it’s made of, which affects how much the mold costs. A good maintenance plan can reduce downtime and production interruptions, enhancing production efficiency and product quality.

Technological Advancements

Technology is also a big deal when it comes to making molds more efficient and cost-effective. The big trends in inejction mold making right now are automation and fancy software tools to help manage the manufacturing process.

Automation

Using automation in mold manufacturing, such as robot machining and automated quality control, improves accuracy and productivity while reducing labor costs and errors. Automated equipment can operate 24/7 and produce higher-quality parts, increasing production rates, but it is expensive upfront. Automating processes can save money in the long run and improve overall production efficiency.

Software and Simulation Tools

CAD/CAM tools are great for designing and testing molds before you make them. They make mold design and testing easier because they help you find and fix mistakes before you make the mold. Modern computer programs for making 3D models and for testing molds make it easier to find and fix mistakes by showing you what is wrong and by letting you test your design on the computer. These tools cost money to buy, but they save you money by helping you make better molds.

Environmental and Regulatory Considerations

Another thing that can affect the costs of mold remediation is environmental and regulatory factors. It may lead to more costs and is typically time-consuming, but it can stimulate sustainable development and bring long-term economic and social benefits.

Compliance Costs

Being compliant with environmental and other regulations costs more money. This means using materials that are good for the environment, doing things to manage waste, and making sure workers are safe and healthy. Compliance costs are things like following rules from the government and from other countries, following rules about the environment, and following rules about worker safety. Even though these things cost money, they help keep pollution down and make the company look good.

Sustainable Practices

Some sustainable practices may have some costs in the short run, including the costs of using recycled materials and reducing energy use, but these costs can be offset in the long term by cost savings and improvement of corporate image. Sustainable manufacturing for mold can minimize or prevents waste and energy use, environmental emissions, and could even lead to government promotion (subsidies or tax credits).

Conclusion

There are many factors that affect the overall cost of injection molds. These include material, part type, design complexity, production volumes, and technology. These factors help the manufacturer make a decision about whether to invest in the initial cost of the mold versus the long-term effectiveness and efficiency.

With the information in this article, you can overcome the challenges and confusion of estimating the cost of molds, control your budgets, and improve your overall manufacturing process. When it comes to costs, you need to pick your materials and designs carefully, use innovative technology and labor-saving equipment, and pay attention to the longevity of your molds.

In today’s fast-changing world of manufacturing, keeping up with new technologies and ways of manufacturing, as well as following environmental and legal considerations, will definitely help you stay in the game. There are many things that affect injection mold costs and to be able to do successful low-cost molding you have to have complete control over these things.
