Two-color injection molding, also known as two-color molding, is an advanced injection molding method that allows the use of the same injection molding machine to inject two different materials or colors into the same mold at the same time to produce complex and versatile plastic parts. The process is completed in one cycle without the need to dismantle and re-replace or reinstall the mold, providing more powerful and complex design and production capabilities.

Basic Principles of Two Color Injection Molding

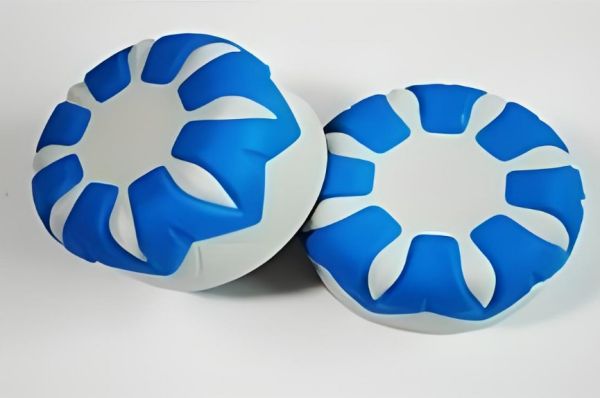

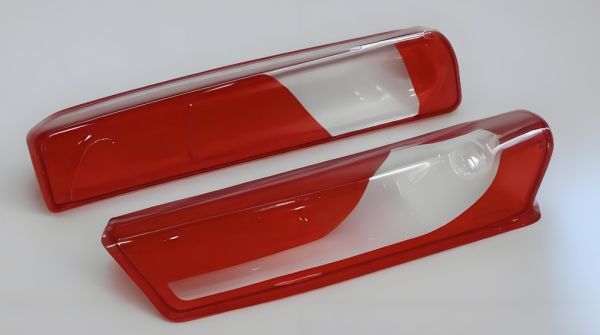

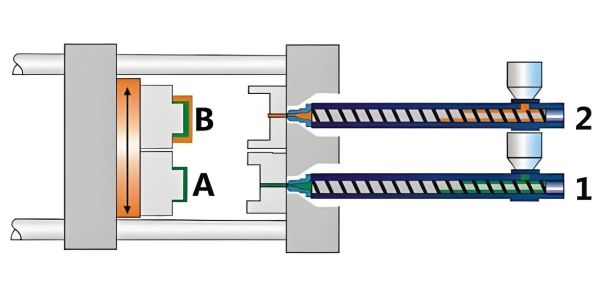

The basic principle of two-color injection molding (also called double injection molding) is to use a two-color injection molding machine and mold to inject one plastic material first and then another plastic material. The first shot is the injection of the first material. The mold then rotates or moves to the second shot, injecting the second material. These materials can be different colors of the same type of plastic, or completely different types of plastics, so that complex, multi-color and multi-material parts can be manufactured.

Process Flow of Two Color Injection Molding

Mold Design

Mold design determines the entire two-color molding process. Two-color molds usually consist of two parts, each of which receives one injection. It is crucial to achieve absolutely correct bonding between the two injection materials, and the mold must contain a reasonable runner system. Designers must consider characteristics such as material bonding, shrinkage, and cooling rate to meet production standards and maintain the beauty of the product.

Injection Molding Machine Setup

Two-color injection molding machines usually include two injection units, one for each injection. The settings and adjustments of the injection molding machine should be optimized according to the characteristics of the material and the design of the part. The machine operator must well regulate the temperature, pressure, and injection speed at each stage of the injection to ensure stability and consistency at each injection stage.

First Shot Injection

During the first shot, the first material is pressed into mold cavity to form the first part of the component. High attention should be paid to the flowability and fillability of the material to avoid defects. Controlling mold temperature, injection pressure, and speed is critical to achieve uniform distribution and smooth surface.

Mold Rotation or Shifting

After the first shot, the mold is rotated or moved to bring the molded first part to the location for the second shot. This step must be done and controlled very carefully to ensure accurate alignment. The mold’s rotation or movement mechanism must be carefully planned to facilitate proper positioning of the final product and a proper bonding process.

Second Shot Injection

In the second shot, the second material is injected into another part of the mold, combining with the molded part in the first part to form the final component. Special attention should be paid to the compatibility and bonding strength between the two substances. The material selection for the second shot is critical; it must adhere firmly to the first material and not separate or break during the cooling and solidification process.

Cooling and Ejection

After the injection process, the final part cools and solidifies in the mold before being ejected. The ejection process needs to be handled carefully to avoid damaging the appearance of the final product. Cooling time and ejection force must be strictly controlled because ejecting the part before the correct cooling time is reached can cause deformation or damage to the part, while ejecting too late can affect production efficiency.

Advantages of Two Color Injection Molding

Enhanced Design Flexibility

Two-color molding can provide products with additional surface decoration, such as texture and color, and the ability to mold multiple materials and colors in one part greatly increases design possibilities. Plastic products with complex patterns, colors, and structures with multiple applications can be developed. Designers can create unique aesthetic effects and functions, such as combining soft and hard materials in a single product, increasing the consumer’s sense of touch and the product’s wear resistance.

Reduced Assembly Steps

By completing the combination of multiple materials in one molding process, the subsequent assembly steps and time are reduced, and productivity will be improved. It also reduces the occurrence of errors and unqualified products during the assembly process. In applications involving components that require good assembly, two-color molding is cost-effective because it saves time and money while also improving the quality of assembled parts.

Improved Product Quality

During the two-color molding process, there is good adhesion between the two injections, which improves the quality and durability of the final product. It is best suited for high-strength and high-precision goods. Products with more structures and details can be manufactured through two-color molding to meet the high-end market.

Cost Reduction

Although the two-color molding equipment and molds are expensive at the beginning of the project, the reduced assembly steps and increased productivity can significantly reduce long-term production costs. It can also reduce material waste and production losses. The economic benefits of two-color molding are more obvious in large-scale production.

Applications of Two Color Injection Molding

Automotive Industry

Two-color molding is widely used in the automotive industry, especially for parts such as interior trims, buttons, and dashboards. For example, the soft and hard parts of the steering wheel are related to beautification and usability, providing better comfort and functionality for the user. Two-color molding is also used to manufacture headlights, car badges, and decorative parts, thereby enhancing the appearance and functionality of the vehicle.

Electronics

Two-color molding technology is applied to electronic products and is suitable for the production of components such as mobile phone cases, keyboards, and mice in a variety of colors and materials, thereby improving the look and feel of electronic devices. For example, the anti-slip strips and shock-proof edges of mobile phone cases are produced through two-color molding. It is also used in the manufacture of electronic mobile phones and speakers to improve product versatility and user satisfaction.

Home Appliances

In some home appliances, such as remote controls, coffee machines, and kitchen appliances, the application of two-color injection molding enables the details of the design and multifunctional integration, making them both beautiful and practical. For example, the buttons and housings of remote controls are made of two different colors and materials through two-color molding to create a contrasting appearance. Two-color molding is also used to manufacture hair dryers and electric toothbrushes to improve usability and safety.

Medical Devices

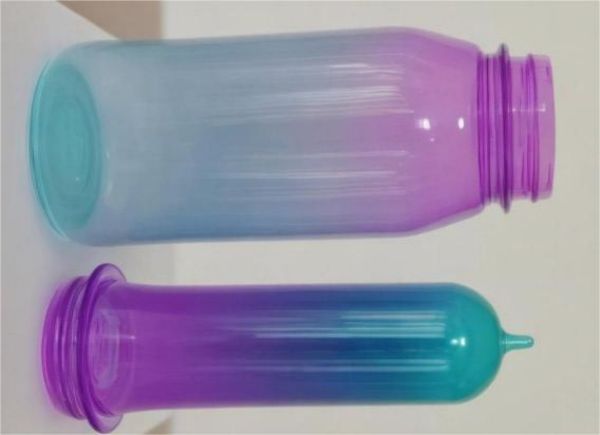

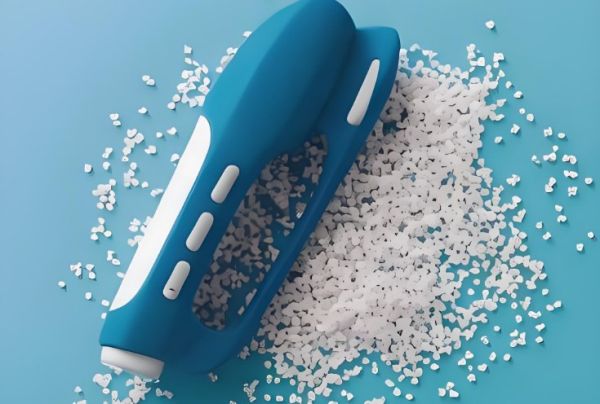

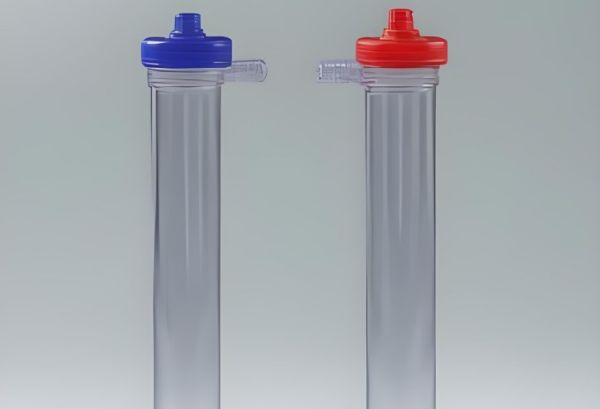

Syringes and surgical tools involve two-color molding, which provides a high-precision and high-quality method to meet medical standards. For example, the completely transparent overall body of the syringe, color-coded area markings are produced with the help of two-color molding. Two-color molding also plays an important role in the manufacture of medical handles and support systems, which enhance functionality and safety for medical professionals.

Toy Manufacturing

In toy manufacturing, two-color molding is used to create products with different colors and materials, such as plastic building blocks and puzzles. Two-color molding allows the creation of complex patterns and shapes, which enhances the fun and improves the safety of toys.

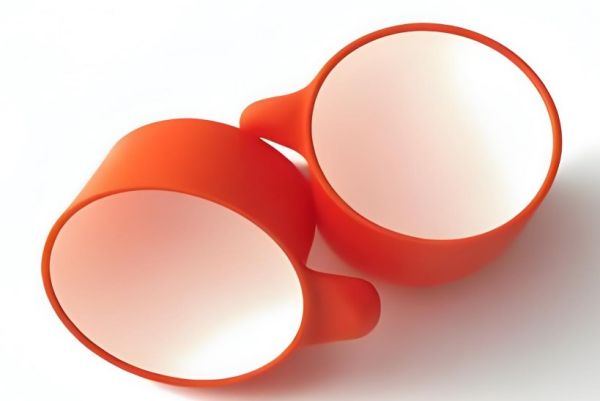

Consumer Goods

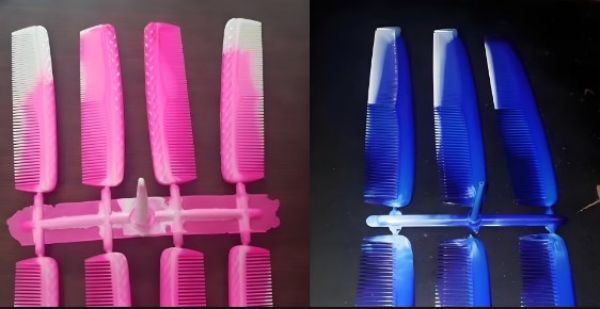

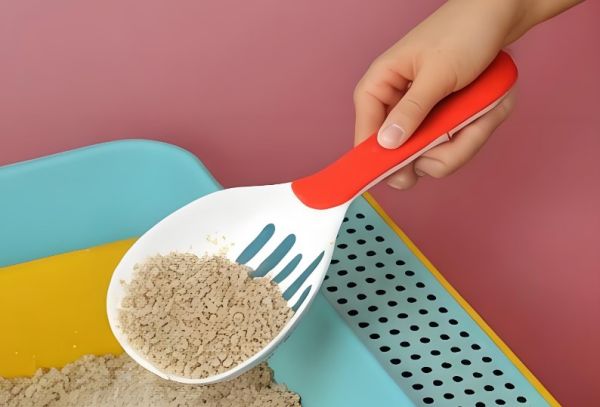

In consumer products such as toothbrushes, razors, and stationery, two-color molding can combine multiple colors and multiple materials to create the aesthetics and functionality of the product. For example, the handle and brush head of a toothbrush are two-color molded to provide comfort and durability.

Challenges of Two Color Injection Molding

Complex Mold Design

Two color injection mold making is far more complicated than single-shot mold making processes because flowability, cooling time, and precision of bonding areas of two materials need to be considered. Mold design should be precise so as to enhance the standard of the final product as well as increase the rate of production. Designers must go through many experiences and knowledge to make sure that the mold is rational from the designer’s perspective and proper for manufacturing.

High Adjustment Requirements for Injection Molding Machines

Two-color injection molding machines (parallel turntable injection machine) are different from ordinary injection molding machines or traditional injection molding machines and require more initial setup and precise control of the temperature, pressure and injection speed of the two injection units. The operator needs to have a high level of skill and experience to ensure the stability and consistency of the manufacturing process. Adjustment and calibration work can be particularly demanding for complex structures and high-precision products.

Material Selection and Pairing

Selecting the right materials and pairing combinations is critical in the two-color molding process. Different materials have different physical and chemical properties, therefore, each material should be selected and tested to ensure strong adhesion and optimal performance. Factors such as bonding characteristics, shrinkage, and mechanical properties must be considered.

Process Control

Strict control of the molding process is very crucial in two-shot molding. All the four elements, that is, temperature, pressure, speed, and time have a first-order effect on the quality and performance of the end product. Therefore, all parameters that define the process and their control should be monitored and adjusted to guarantee product uniformity and stability.

Future Trends in Two Color Injection Molding

Application of New Materials

With the development of materials science, new high-performance materials continue to emerge, providing more choices and applications for two-color molding. The use of environmentally friendly and other functional materials will promote the expansion of two-color molding into new areas. The development of advanced materials will improve the functionality and added value of products, thereby meeting the needs of the high-quality and high-performance market.

Integration with Smart Manufacturing Technologies

With the advancement of Industry 4.0 and intelligent manufacturing technology, two-color molding will gradually merge with these technologies to realize the automation, informatization and intelligence of the production process. At the same time, big data and artificial intelligence will improve its production, reduce costs and provide precise quality control. The integration of intelligent manufacturing technology will promote the innovation and upgrading of two-color molding and enhance competitiveness.

Customized Production

Due to the increasing demand of consumers for personalized products, the application of two-color injection molding in personalized production is becoming more and more extensive. Two-color injection molding process can effectively respond to market demand and realize small batch and multi-variety production for customers. Therefore, customized production increases the value of products and enhances the competitiveness of products in the market.

Environmental and Sustainable Development

Environmental conservation and sustainable manufacturing are essential strategies in future production. This kind of molding will pay more attention to the environmental protection characteristic of the materials and the Using an low carbon way to make production, so realize the green manufacturing and the sustainable development by means of technological progress and process optimization.

Practical Examples of Two Color Injection Molding

Automotive Instrument Panels

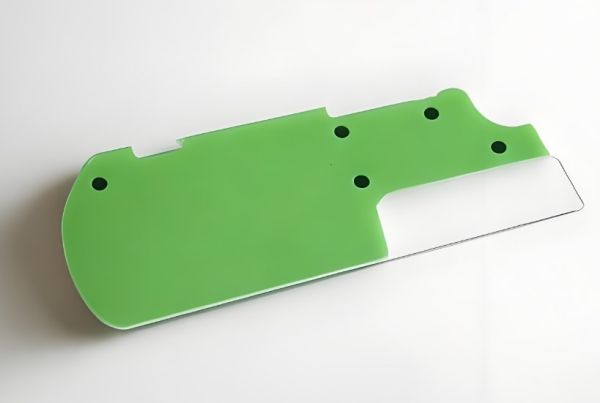

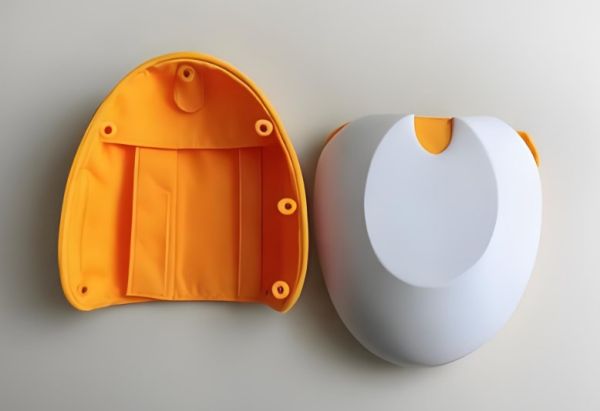

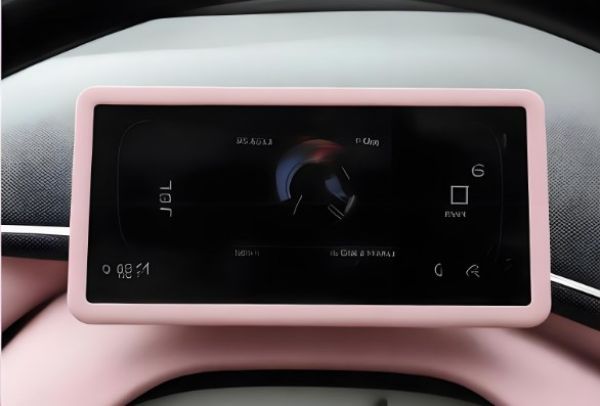

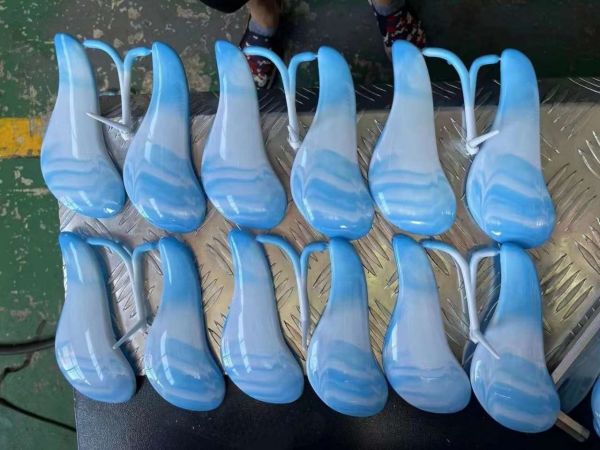

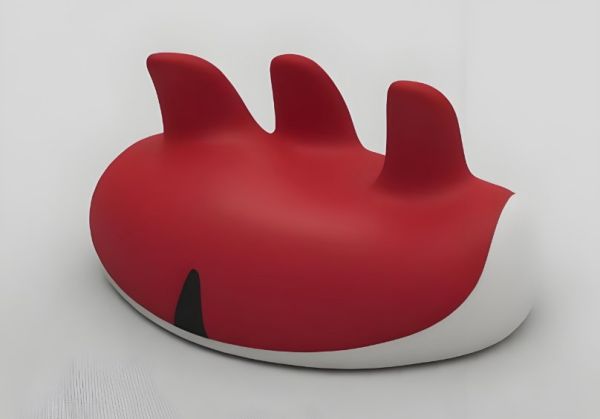

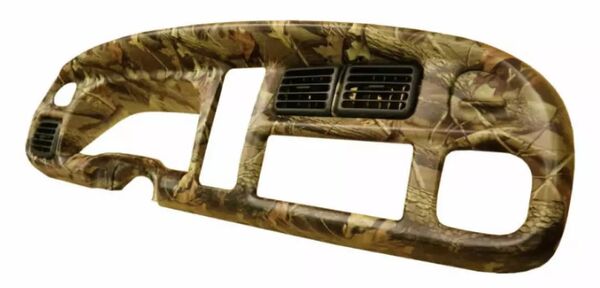

Two-color injection molding technology can be used to produce dashboards in two colors and materials to enhance the appearance and functionality of the car interior. The first injection uses hard plastic to provide structural support and durability, and the second injection uses soft materials to provide a comfortable touch and non-slip function. It not only aesthetically improves the appearance of this application, but also provides functions to improve product usability.

Smartphone Cases

A specific smartphone case produced by an electronic product manufacturer using two-color injection molding has anti-shock and anti-slip properties. The first shot uses transparent plastic, and the second shot uses colored soft materials. Two-color injection molding not only makes the phone case beautiful in appearance, but also fully functional, which is popular among consumers.

Medical Handles

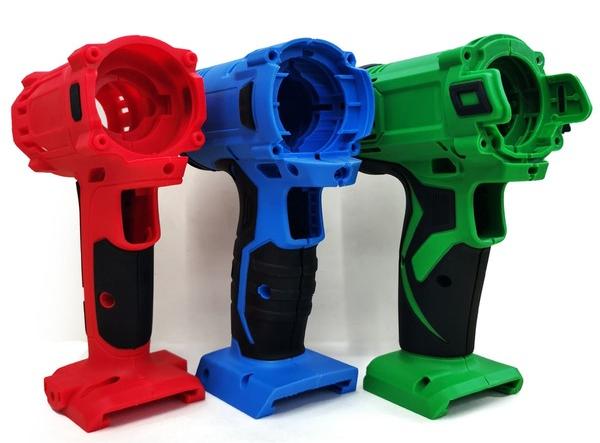

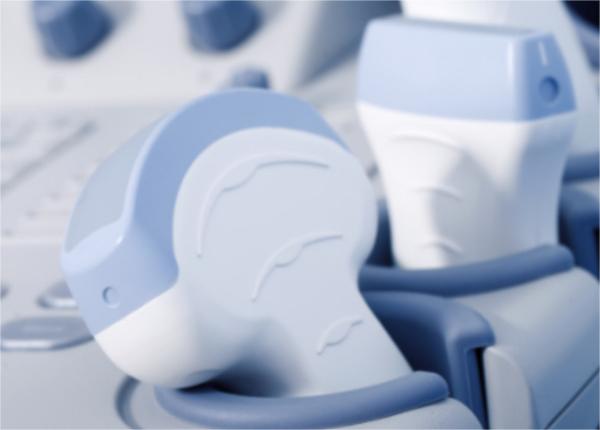

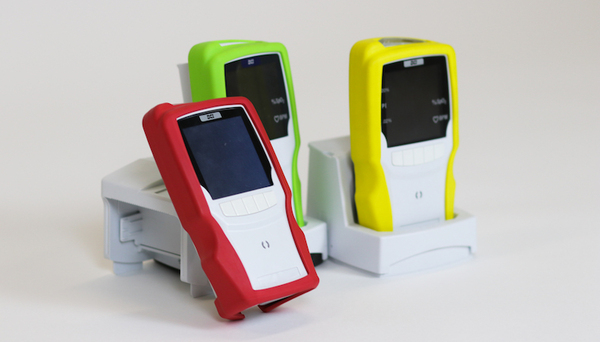

A company in the medical device industry uses two-color molding technology to produce a medical handle with anti-slip function. The first shot of the shell is hard plastic to support the structure and be strong and durable, and the second shot uses soft materials to provide a comfortable touch and anti-slip function. Two-color molding can create the medical quality required by the product and improve the comfort and safety of medical staff.

Children’s Toy Blocks

A toy manufacturer uses two-color molding technology to produce children’s toy building blocks in a variety of colors and materials. The first molding uses hard plastic to support the structure and increase durability, and the second injection molding uses colored materials to increase visual appeal and decorativeness. Two-color molding makes the toy not only beautiful in appearance, but also practical and safe, and is deeply loved by children.

Conclusion

Two-shot injection molding, as one type of the advanced injection molding technologies, brings many advantages to the design of the product, the increasing of the efficiency of the molding process, and the improving of the quality of the product. It is commonly applied in automobile, electronics, home appliances, medical device, toys, and consumer products industries.

With the discovery and application of new plastic materials on the production line, the development of smart manufacturing technologies and sustainable manufacturing methods, two-color molding will be more prominently used in different industries, helping to improve manufacturing solutions. Mastering the production technology involving two-color molding enables manufacturers to produce more efficient and higher-quality products to meet the needs of the market and customers.
