Introduction

Injection molding is a widely-used manufacturing process that involves injecting hot plastic material into a mold, where it cools and solidifies to form the desired part or component. Its efficiency, cost-effectiveness, and ability to produce complex parts in large volumes make injection molding popular; however, certain factors such as mold design, processing parameters, and material selection can lead to defects in the final product. Preventing these injection molding defects is essential for maintaining product quality, functionality, and aesthetics. In this article, we’ll cover common injection molding issues along with strategies on how to avoid them.

Common defects in injection molding and Their Causes

Sink Marks

Sink marks are depressions or dimples on the surface of a molded part, which occur when the outer surface of the plastic cools and solidifies before the inner material has a chance to fully cool. This can result in the inner material contracting as it cools, causing the outer molded component surface to sink inwards and create a visible defect.

The primary causes of sink marks include:

• Non-uniform wall thickness: If a part has areas with varying wall thickness, the thicker sections will take longer to cool and solidify, resulting in sink marks.
• Insufficient cooling time: When a part is ejected from the mold before it has had enough time to cool and solidify, the residual heat can cause the plastic to contract, leading to sinking marks.
• Inadequate cooling system: An improperly designed cooling system can result in uneven cooling, causing some areas of the part to cool more slowly and form sink marks.
• Incorrect material selection: Some plastic materials are more prone to shrinkage than others, increasing the likelihood of sink marks.

To prevent sink marks, manufacturers should optimize mold design to ensure uniform wall thickness, allow for sufficient cooling time, use an efficient cooling system, and select materials with low shrinkage rates.

Warping

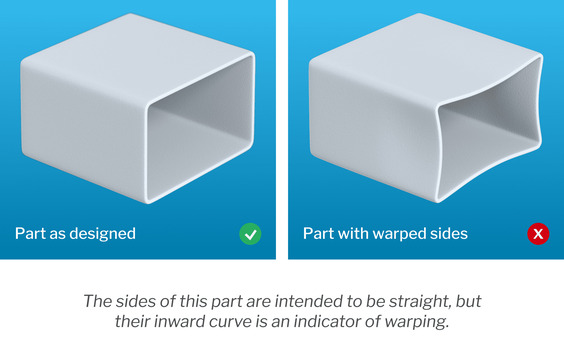

Warping is the distortion of a molded part’s shape, occurring when different areas of the part cool and solidify at different rates. As the material cools, it shrinks, and when this shrinkage is uneven, it can cause the part to twist, bend, or otherwise deform.

The primary causes of warping include:

• Non-uniform wall thickness: Parts with varying wall thickness cool at different rates, causing uneven shrinkage and leading to warping.
• Inadequate cooling system: An improperly designed cooling system can result in uneven cooling across the part, causing some areas to shrink more than others and lead to warping.
• Incorrect processing parameters: Inappropriate settings for injection speed, pressure, and temperature can cause uneven material flow and cooling, resulting in warping.
• Material selection: Some materials are more prone to warping than others due to their inherent properties, such as high shrinkage rates or poor thermal stability.

To prevent warping, manufacturers should optimize mold design to ensure uniform wall thickness, use an efficient cooling system, adjust processing parameters as needed, and select materials with low shrinkage rates and adequate thermal stability.

Short Shots

Short shots are incomplete injection molded parts, where the molten plastic fails to fill the entire mold cavity. This results in a partially formed part that does not meet the desired specifications, rendering it unusable.

The primary causes of short shots include:

• Insufficient injection pressure: If the injection pressure is too low, the molten plastic may not have enough force to fill the entire mold cavity, resulting in a short shot.
• Poor mold design: A mold with complex or narrow channels may impede the flow of molten plastic, preventing it from filling the entire cavity and causing short shots.
• Inadequate material flow: If the molten plastic’s viscosity is too high, it may not flow smoothly through the mold, leading to incomplete filling and short shots.
• Premature cooling: If the molten plastic cools too quickly before it has a chance to fill the entire mold cavity, it can solidify prematurely, resulting in a short shot.

To prevent short shots, manufacturers should ensure that the injection pressure is set correctly, optimize mold design to facilitate smooth material flow, use materials with appropriate viscosity, and maintain proper temperature control to avoid premature cooling.

Flash

Flash, also known as burrs, is an excess plastic material that leaks out of the mold cavity during the injection process and attaches to the finished part. This typically appears as thin layers or unwanted protrusions on the part’s surface, negatively affecting its appearance and, in some cases, its functionality.

The primary causes of flash include:

• Excessive injection pressure: When the injection pressure is too high, the molten plastic can be forced out of the mold cavity and create a flash.
• Improper clamping force: If the clamping force is insufficient, the mold may not close tightly enough, allowing molten plastic to leak out and form a flash.
• Worn or damaged mold tooling: Over time, molds can wear down or become damaged, resulting in gaps or misalignments that allow the plastic to escape and create a flash.
• Incorrect mold design: If the mold design does not include proper venting or runner systems, the molten plastic may be forced out of the cavity and form a flash.

To prevent flash, manufacturers should ensure that the injection pressure is set correctly, use adequate clamping force, regularly inspect and maintain mold tooling, and optimize mold design to include proper venting and runner systems.

Burn Marks

Burn marks are dark, brown, or black discolorations on the surface of an injection molded part, caused by the degradation of the plastic material. They can negatively impact the appearance and, in some cases, the functionality of the part.

The primary causes of burn marks include:

• Trapped air: When the air becomes trapped inside the mold cavity, it can combust due to the high temperature of the molten plastic, causing burn marks on the part’s surface.
• Excessive injection speed: If the injection speed is too high, the molten plastic may overheat as it flows through the mold, leading to the formation of burn marks.
• Insufficient venting: Poor venting can cause air pockets to become trapped in the mold cavity, leading to burning marks when the trapped air combusts.
• Degradation of the plastic material: If the material is overheated, improperly mixed, or contaminated with impurities, it can degrade and create burn marks on the part’s surface.

To prevent burn marks, manufacturers should optimize injection speed, ensure proper venting in the mold design, avoid overheating the plastic material, and maintain strict quality control over the material selection and preparation process.

Voids

Voids are empty spaces or air pockets within an injection molded part, typically caused by trapped air or insufficient material filling the mold cavity. Voids can compromise the structural integrity of a part, making it weaker and more susceptible to breakage.

The primary causes of voids include:

• Trapped air: Air can become trapped inside the mold cavity during the injection process, resulting in voids as the molten plastic cools and solidifies around the trapped air.
• Non-uniform wall thickness: Parts with varying wall thickness can cause the plastic material to cool and solidify unevenly, creating voids in the thicker sections.
• Inadequate packing pressure: If the packing pressure is insufficient, the molten plastic may not fully compact in the mold cavity, leaving empty spaces and resulting in voids.
• Material shrinkage: Some plastic materials are more prone to shrinkage than others, which can cause voids to form as the material cools and contracts.

To prevent voids, manufacturers should optimize mold design to ensure uniform wall thickness, allow for proper venting to release trapped air, use adequate packing p 1ressure, and select materials with low shrinkage rates.

Flow Marks

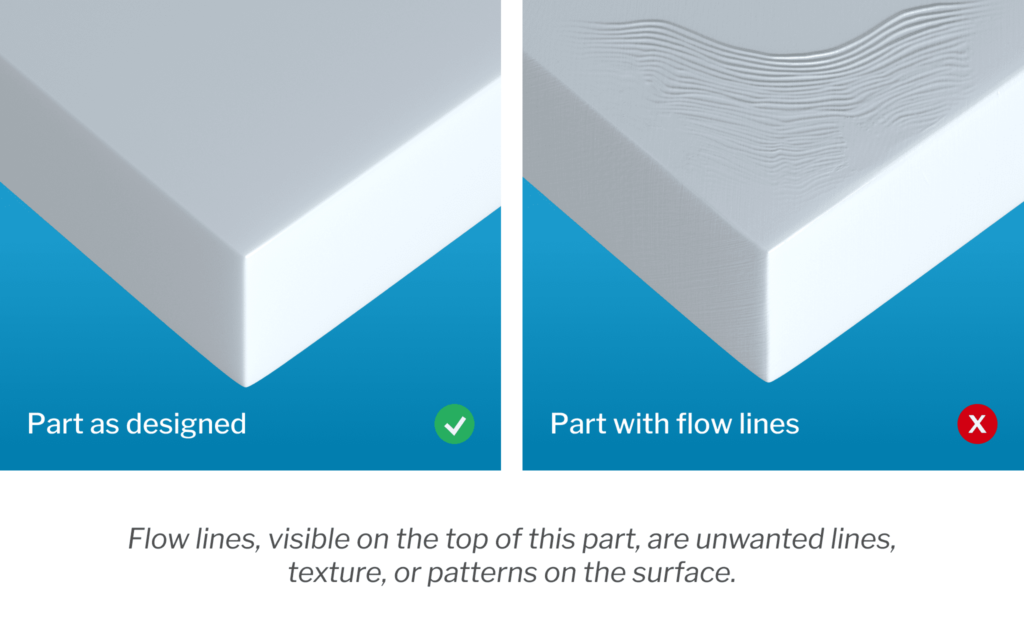

Flow marks, also known as flow lines or weld lines, are visible lines or patterns on the surface of an injection molded part. They occur when two or more fronts of molten plastic meet and solidify in the mold, leaving visible marks on the part’s surface. Flow marks can affect the appearance of the part, and in some cases, can compromise its mechanical properties.

The primary causes of flow marks include:

• Inadequate injection speed: A slow injection speed can cause the molten plastic to cool prematurely, resulting in flow marks when the cooled fronts meet.
• Non-uniform wall thickness: Parts with varying wall thickness can cause the molten plastic to flow unevenly, leading to flow marks when the different flow fronts meet.
• Improper gate location: If the gate is positioned incorrectly, the molten plastic may not flow smoothly through the mold, resulting in flow marks.
• Material viscosity: Some materials have a higher viscosity, making it more challenging for the molten plastic to flow evenly and resulting in flow marks.

To prevent flow marks, manufacturers should optimize injection speed, ensure uniform wall thickness in mold design, carefully select gate locations, and choose materials with appropriate viscosity for the part’s geometry.

Strategies to Prevent Injection Molding Defects

Optimize Mold Design

Mold design plays a critical role in the success of the injection molding process, directly impacting the quality and functionality of the final part. By optimizing injection mold design, manufacturers can prevent many common injection molding defects. Key aspects to consider when optimizing mold design include:

• Uniform wall thickness: Designing parts with consistent wall thickness helps ensure even cooling and material flow, reducing the risk of defects such as warping, sink marks, and voids.
• Proper gate location and type: Selecting the appropriate gate location and type can improve material flow and minimize the formation of flow marks or weld lines.
• Adequate venting: Incorporating proper venting into the mold design allows trapped air to escape during the injection process, preventing burn marks and voids.
• Efficient cooling system: Designing an effective cooling system helps maintain uniform temperature distribution throughout the mold, reducing the risk of defects caused by uneven cooling, such as warping and sink marks.

By focusing on these critical aspects of mold design, manufacturers can significantly reduce the occurrence of common injection molding defects and improve the overall quality of their products.

Ensure Uniform Wall Thickness

Maintaining a uniform wall thickness in injection molded parts is essential for minimizing defects and improving part quality. Uneven wall thickness can lead to a variety of issues, including warping, sink marks, voids, and flow marks. To ensure uniform wall thickness in your injection molded parts, consider the following strategies:

• Optimize part design: When designing the part, make sure that the wall thickness is consistent throughout the entire geometry. Avoid abrupt transitions between thick and thin sections, and use smooth, gradual transitions when varying wall thickness is necessary.
• Use simulation software: Utilize injection molding simulation software, such as Moldflow or SolidWorks Plastics, to analyze and identify potential issues with wall thickness and other aspects of part design.
• Modify mold design: If the simulation software identifies areas with uneven wall thickness, adjust the mold design accordingly to ensure more uniform material flow and cooling.
• Monitor material flow: Keep an eye on the material flow during the injection molding process and make necessary adjustments to the processing parameters (injection speed, pressure, etc.) to maintain uniform wall thickness.

By ensuring uniform wall thickness in your injection molded parts, you can significantly reduce the risk of common injection molding defects and improve the overall quality of your products.

Properly Manage Injection Speed, Pressure, and Temperature

Managing injection speed, pressure, and temperature is crucial for producing high-quality injection molded parts and preventing defects. Inappropriate processing parameters can lead to issues such as short shots, warping, burn marks, and flow marks. To properly manage these parameters, consider the following strategies:

• Understand material properties: Different materials have unique processing requirements. Study the material’s data sheet and guidelines to understand the recommended injection speed, pressure, and temperature for optimal processing.
• Optimize injection speed: Adjust the injection speed to ensure smooth and even material flow. A slow injection speed can cause premature cooling and flow marks, while an excessively fast speed can cause burn marks and material degradation.
• Set appropriate injection pressure: Set the injection pressure according to the material and part geometry, ensuring that it is sufficient to fill the mold cavity without causing flashes or short shots.
• Control material temperature: Maintain the recommended temperature for the material to prevent issues such as degradation, excessive viscosity, or premature cooling. Monitor and adjust the barrel and nozzle temperatures as needed.
• Monitor mold temperature: Ensure that the mold temperature is within the recommended range for the material, as it affects material flow, cooling, and part quality. Use temperature control units (TCUs) to maintain consistent mold temperatures.

By properly managing injection speed, pressure, and temperature, manufacturers can optimize the injection molding process, minimize defects, and produce high-quality parts.

Maintain and Inspect Equipment and Molds

Regular maintenance and inspection of injection molding equipment and molds are essential for preventing defects and ensuring the consistent production of high-quality parts. Proper maintenance helps identify potential issues before they cause defects or part rejection. To maintain and inspect equipment and molds, consider the following strategies:

• Establish a preventive maintenance schedule: Implement a regular preventive maintenance schedule for your injection molding machines, molds, and auxiliary equipment. This includes tasks such as cleaning, lubrication, and calibration to keep the equipment in optimal working condition.
• Inspect mold tooling: Regularly examine mold tooling for signs of wear, damage, or misalignment. Replace or repair worn or damaged components to prevent defects caused by poor mold conditions, such as flash or short shots.
• Check mold vents and runners: Ensure that mold vents and runners are clean and free of obstructions. Blocked vents can cause trapped air and lead to burn marks or voids, while obstructed runners can impede material flow and result in short shots or flow marks.
• Monitor clamping force: Inspect the clamping force to ensure it is adequate to keep the mold tightly closed during the injection process. Insufficient clamping force can lead to flash or parting line defects.
• Evaluate temperature control units (TCUs): Regularly check the performance of TCUs to maintain consistent mold temperatures, as fluctuations can cause defects like warping, sink marks, or premature cooling.

By diligently maintaining and inspecting equipment and molds, manufacturers can proactively address potential issues, minimize injection molding defects, and ensure the production of high-quality parts.

Select Appropriate Materials

Choosing the right material for your injection molded part is crucial for preventing defects and ensuring optimal part performance. Material selection can impact the processing parameters, mold design, and part quality. To select appropriate materials, consider the following guidelines:

• Understand part requirements: Assess the requirements of the part, such as mechanical properties, chemical resistance, and temperature resistance, to determine the most suitable material for your application.
• Review material data sheets: Study the material data sheets provided by the material supplier to understand the material’s properties, processing recommendations, and potential issues. These data sheets can guide you in selecting the most suitable material for your part.
• Consider material shrinkage: Some materials have higher shrinkage rates, which can lead to defects like voids, warping, or sink marks. Choose materials with low shrinkage rates when designing parts with tight tolerances or complex geometries.
• Evaluate material viscosity: Materials with high viscosity can be challenging to process, potentially leading to defects such as flow marks or short shots. Select materials with appropriate viscosity for the part’s geometry and processing requirements.
• Perform material trials: Conduct trials using the selected material to identify any potential processing issues or defects. Adjust the processing parameters, mold design, or material selection as needed based on the trial results.

By carefully selecting appropriate materials for your injection molded parts, you can minimize defects, optimize processing conditions, and ensure the production of high-quality products.

Conclusion

In conclusion, injection molding is a complex manufacturing process that requires meticulous attention to detail and parameters to produce high-quality parts. By understanding common injection molding defects and their causes, manufacturers can take proactive measures for prevention. Some of the key strategies include optimizing mold design, guaranteeing uniform wall thickness, managing injection speed, pressure, and temperature settings, maintaining equipment and molds as well as selecting appropriate materials.

Implementing these best practices can dramatically enhance the quality of injection molded parts, reduce rejection rates and save time and resources. Manufacturers must prioritize these strategies to maintain their competitive edge in the industry and consistently provide high-quality products to customers. If a part has areas with varying wall thickness, the thicker sections will take longer to cool and solidify, resulting in sink marks.
