Introduction

The longevity and efficiency of injection molds hinge on meticulous maintenance. Just as a well-oiled machine performs optimally, well-maintained injection molds ensure uninterrupted production, minimal downtime, and a reduction in costly repairs. Neglecting mold maintenance can lead to a cascade of issues — from poor product quality to extended production delays. Regular and effective maintenance of these molds is not just a good practice; it’s a critical investment in the seamless continuity of the production process.

In essence, the maintenance of injection molds is as crucial as their operation. This blog delves into the essentials of maintaining injection molds, highlighting best practices that not only extend the life of these vital tools but also ensure they consistently produce high-quality plastic parts. Understanding and implementing these practices is key to sustaining productivity, reducing overall costs, and maintaining the high standards expected in today’s competitive manufacturing landscapes.

II. Understanding Injection Mold Maintenance

A. The Importance of Maintenance

The injection molding process is a cornerstone of manufacturing efficiency and productivity. However, its success is deeply intertwined with the health of the injection molds used. Regular and thorough maintenance of these molds is critical for several reasons:

Preventing Downtime: In a high-volume production environment, any halt in the production process can lead to significant financial losses. Well-maintained injection molds minimize the risk of unexpected breakdowns and failures, ensuring a smooth and continuous production flow. By preventing downtime, regular maintenance not only saves time but also protects the manufacturer from the high costs associated with halted production.

Extending the Life of the Mold: Injection molds are substantial investments. Each mold is designed to produce hundreds of thousands, if not millions, of parts. However, without proper care, the lifespan of these molds can drastically reduce. Regular maintenance ensures that every component of the mold functions optimally, thus extending the mold’s life and maximizing the return on investment.

B. Key Components of Injection Molds

Understanding the anatomy of an injection mold is crucial for effective maintenance. Each component plays a specific role, and knowledge of these parts aids in identifying and addressing maintenance needs:

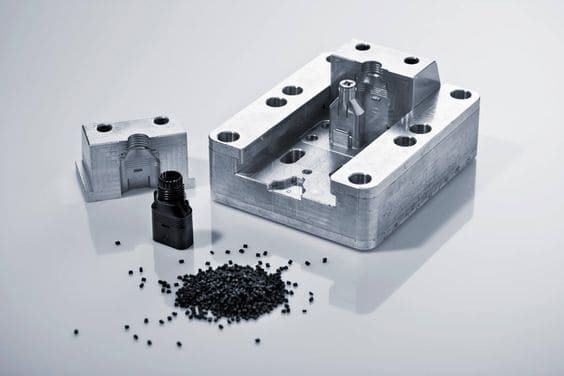

Mold Cavities and Surfaces: These are the spaces where the plastic is injected and shaped. The integrity of mold cavities directly affects the quality of the plastic parts. The surfaces of these cavities must be kept clean and free of residues to ensure flawless product output.

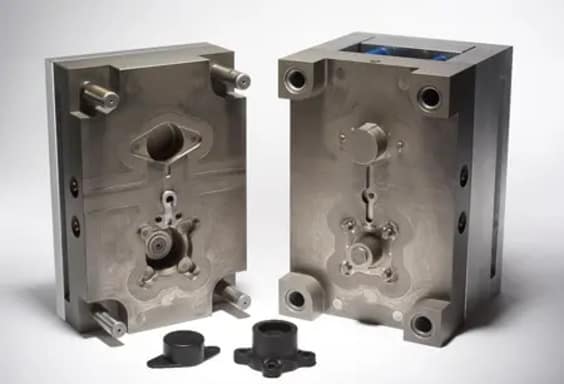

Mold Core: The core of the mold is the counterpart to the cavity. It often forms the internal surface of the final product. Like the mold cavity, the core must be maintained to ensure precise product dimensions and quality.

Mold Material: Injection molds are made from various materials, each with unique properties and maintenance requirements. Common materials include steel and aluminum, which are chosen for their durability and heat resistance. Understanding the properties of these materials is vital for applying the correct maintenance techniques.

In summary, proper maintenance of plastic injection mold is not merely a routine task; it is a strategic approach to safeguard the efficiency and longevity of the manufacturing process. Knowledge of the key components of these molds is essential in implementing an effective maintenance plan.

Injection mold maintenance tips

In order to determine the damage status of the mold and repair measures, processing companies should measure the dimensions of the final molded plastic parts and test the performance of the mold when the mold and injection molding machine are operating normally. Through this information, the damage to the cavity, core, cooling system and parting surface can be found, and the existence status of the mold can be determined.

Important parts of tracking and testing molds

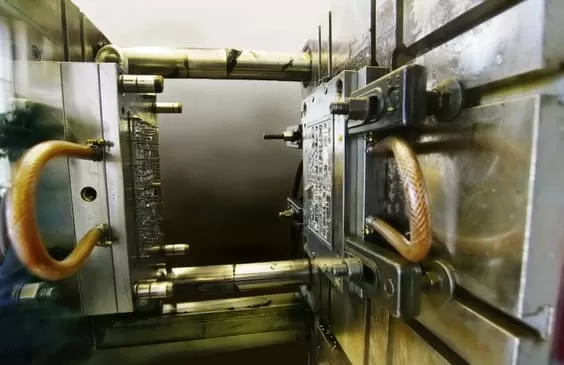

At the same time, it is necessary to focus on tracking and testing several important parts of the mold. The function of the ejection guide is to ensure the opening and closing movement of the mold and the ejection of plastic parts. If any parts are stuck due to damage, it will cause production to be suspended. Therefore, the surface of the ejector pin and guide pin should be checked regularly for deformation or damage, and the mold ejector pin and guide pin should be kept lubricated frequently. Once problems are found, they should be replaced in time.

After completing a production cycle, ensure that they are always in the best working condition, pay special attention to the elastic strength protection of the bearing parts with gears and racks and the spring mold, and apply professional anti-rust coating on the movement, working surface and guide parts of the mold Oil.

Cooling channel cleaning

As the production time of the cooling channel continues to extend, rust, sediment, scale and algae are easy to deposit, making the cooling channel narrower compressed air and the cross-section smaller, which increases the production cost of the company and greatly reduces the relationship between the coolant and the mold. The heat exchange rate between them, so attention should be paid to the cleaning of the cooling channels.

Maintenance of heating and control systems

Maintenance of heating and control systems is helpful to prevent production failures for hot runner molds. Therefore, after each production cycle, an ohmmeter should be used to measure the heating probes, belt heaters, thermocouples and rod heaters on the mold, such as If there is any damage, it should be replaced in time, records should be kept, and compared with the mold history, so that problems can be discovered in time and countermeasures can be taken.

Mold surface maintenance

What directly affects the surface quality of the product is the surface maintenance of the mold. The focus is on corrosion prevention. Therefore, it is particularly important to choose appropriate, high-quality, and professional anti-rust oil. After completing the production task, the mold should adopt different methods according to the injection molding. Carefully remove the remaining injection molding. When removing the remaining injection molding and other deposits in the mold surfaces, you can use copper wire, copper rods and professional mold cleaning agents, and then air dry.

Handling and Storage Techniques:

Proper handling and storage of plastic injection molds are essential to prevent wear and damage. This includes careful transportation of molds within the facility, using appropriate lifting and moving equipment to avoid drops or impacts. Storage is equally important; molds should be stored in a clean, dry environment, ideally in a way that avoids any unnecessary stress or strain on their components. Regularly cleaning and covering molds when not in use also helps protect them from environmental factors.

Impact of Improper Maintenance:

The consequences of neglecting injection mold repair and maintenance can be far-reaching. Poorly maintained molds often result in low-quality plastic parts, increased rejection rates, and even damage to the injection molding machine itself. This not only affects the production efficiency but also significantly elevates operational costs. Regular malfunctions and downtime for repairs can lead to lost production opportunities and can tarnish a company’s reputation for reliability and quality.

Importance of a Detailed Maintenance Plan:

A comprehensive maintenance plan serves as a roadmap for routine checks and interventions. It should outline specific tasks, frequencies, responsible personnel, and record-keeping procedures. This plan should be a living document, regularly reviewed and updated based on the performance and issues encountered with the molds.

Conclusion

Cultivating the vitality of injection molds mirrors the nurturing of a production’s core essence. When these molds receive meticulous upkeep, they operate with optimal efficiency, forging superior plastic components, and curtailing the risk of manufacturing halts and procrastinations. This upkeep transcends simple cleansing and mendings; it involves an all-encompassing strategy of delicate handling, periodic scrutinies, and adherence to an intricate maintenance blueprint. By ensuring every segment of the mold, from the hollows and exteriors to the nucleus and thermal regulation conduits, is treated with due regard, fabricators can sidestep the hazards of diminished quality and escalated production expenditures.

Furthermore, the linkage between mold life preservation and manufacturing efficacy is emphatically significant. A mold maintained with diligence is a custodian of uninterrupted, top-tier production. It not only prolongs the mold’s lifespan but also protects the investment and esteem of the manufacturing firm. Conversely, molds that suffer from neglect can evolve into persistent sources of complications, precipitating inferior products, augmented waste, and increased operational fees.

In sum, the preservation of injection molds stands as a pivotal, uncompromisable facet of the manufacturing tapestry. It necessitates vigilance, expertise, and a forward-thinking stance. By placing the well-being of their molds at the forefront, manufacturers can guarantee the seamless, effective, and economical operation of their production lines, thus sustaining a competitive stance in the ever-evolving arena of production.
