Introduction

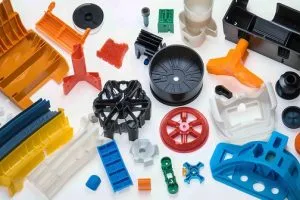

plastic Injection molding is a widely used manufacturing process to fabricate plastic parts and components. It involves injecting hot plastic into an injection mold cavity, then waiting for it to cool and solidify into the desired shape. The quality of the plastic injection mold plays an integral role in its success; high-quality molds ensure consistent production with minimal defects, inefficiencies, or waste products.

Improving the quality of injection molds is critical for achieving optimal production results. In this article, we’ll give an overview of factors that influence injection mold quality and suggest actions manufacturers can take to enhance their products’ aesthetics and increase efficiency during production processes. By adhering to these guidelines, manufacturers can enhance their products’ aesthetics while increasing efficiency throughout their operations.

II. Factors Affecting Injection Mold Quality

A. Mold Design

1.Conduct regular inspections

The design of an injection mold plays a significant role in determining the quality of the final product. A well-crafted mold will guarantee that molten plastic is injected evenly and with consistent pressure into its cavity, producing parts with excellent surface finish, dimensional accuracy, and structural integrity. How to Improve the Quality of Your Injection Molds

When designing a mold for plastic parts, the designer must take into account all relevant characteristics such as mold structure, size, and wall thickness. Furthermore, the gating system – which controls the flow of molten plastic into the cavity – must be designed carefully to guarantee correct filling and minimize the risk of short shots or small depressions.

Other essential considerations in mold design involve selecting appropriate mold materials and proper assembly of components. Mold materials must be chosen based on properties like wear resistance, corrosion resistance, and thermal conductivity to guarantee long life and consistent performance from the mold. Likewise, carefully assembled parts must be assembled to prevent leaks, warping or other defects which could negatively affect part quality.

B. Mold Material

Selecting the appropriate mold material is another critical element in injection mold quality. It must be able to withstand high temperatures and pressures involved in injection molding without deforming, cracking, or wearing out prematurely.

Common materials used for injection molds include steel, aluminum, and copper alloys. Steel is the most popular due to its strength, wear resistance, and heat resistance; however it’s expensive and time-consuming to manufacture due to its inherent flaws. Aluminum molds offer a cheaper alternative with lower strength and durability compared to steel molds while copper alloys have lower costs but tend to only be utilized in specialized applications due to their hefty price tag.

When selecting a mold material for an injection molding process, the type of plastic should be taken into consideration. Corrosive materials like PVC and nylon may lead to mold degradation over time if not handled properly; in such cases, molds made from corrosion-resistant materials like stainless steel may be needed to guarantee long mold life and consistent part quality.

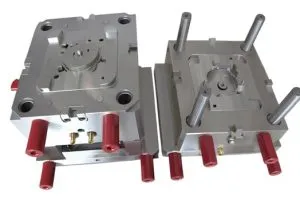

C. Mold Assembly

Proper assembly of injection molds is another essential factor in producing high-quality plastic parts. To avoid leaks, warping, or other defects that could negatively impact part quality, the mold must be assembled correctly.

It is essential to ensure all mold components are precisely aligned and securely fastened together during the assembly process. Any misalignment or lose pieces could result in uneven pressure distribution, leading to warping or other defects on the finished product.

For effective mold assembly, it is necessary to lubricate moving parts and install cooling channels and other necessary components. Proper lubrication helps reduce wear on moving parts while cooling channels ensure consistent mold temperature while minimizing cycle times.

Additionally, regular maintenance and cleaning of the mold should be conducted to avoid the buildup of debris or residue that could hinder its performance and affect part quality.

D. Process Parameters

Injection molding process parameters play an integral role in determining product quality. Adequate process variables guarantee that plastic melts evenly and with consistent pressure into the mold cavity, producing parts with excellent surface finish, dimensional accuracy, and structural integrity.

Some of the key process parameters that influence injection mold quality include injection speed, pressure, temperature, and cooling time. It is essential to set these levels correctly so that molten plastic fills the cavity evenly and completely. Temperature also needs to be monitored closely to guarantee the proper viscosity of plastic throughout its journey through the mold.

Cooling time is another critical process parameter that affects part quality. To guarantee complete solidification before it leaves the mold, cooling times must be set appropriately; if they’re too short, warp or shrinkage may occur; conversely, if they’re too long, cycle times may be extended and production efficiency decreased.

E. Quality Control

Quality control is a vital aspect in guaranteeing the accuracy and consistency of injection molded parts. Accurate quality assurance procedures help guarantee that finished parts meet the required specifications without any defects or other flaws.

Quality assurance measures in injection molding typically involve visual inspections, dimensional measurements, and material testing. Visual checks are used to detect defects such as burn marks, short shots, or surface finish imperfections while dimensional measurements guarantee the parts meet required tolerances.

Material testing is another essential aspect of quality control in injection molding. Properties such as strength, durability, and heat resistance must be tested to guarantee the parts will perform as intended in their intended applications.

Establish and adhere to rigorous quality assurance checks and tests to guarantee that injection molded parts meet required standards. Any flaws or issues identified during this phase should be addressed promptly to prevent further issues from arising.

III. Enhancing Injection Mold Quality Mold Maintenance

A.Mold Maintenance

1.Conduct regular inspections

Maintaining injection molds properly is essential for ensuring their quality and extending their mold service life. One key aspect of mold upkeep involves conducting regular checks to detect any issues that could adversely impact performance or part quality.

Mold operators should inspect for signs of wear or damage, such as cracks, corrosion, and deformation on the mold surface. They also look for residue or buildup that could affect part quality such as burnt plastic or rust. Furthermore, they need to check the gating system and cooling channels for blockages or other issues that could negatively impact mold performance.

Regular inspections can help identify potential issues before they cause part defects or mold damage. Inspections should be conducted at regular intervals, and any issues identified should be addressed promptly through the repair or replacement of damaged components.

2.Cleaning and Lubrication

Cleaning and lubrication are key steps in maintaining high-quality injection molds. They should be done regularly to eliminate any debris or residue that could adversely impact mold performance or part quality. Depending on the type of residue present on the surface, specialized cleaners or solvents may be used depending on what needs to be removed.

After cleaning, it is essential to properly lubricate the mold for smooth operation and prevention of wear or damage to its components. Not only does this extend the service life of the mold, but it also improves part quality by guaranteeing that plastic flows evenly through it when opening and closing.

Lubrication should be performed using specialized mold release agents or lubricants designed specifically for injection molding applications. These products should be applied according to manufacturer recommendations to guarantee proper lubrication and avoid any issues such as contamination or buildup.

3.Repair and Replacement of Damaged Parts

Repairing and replacing damaged parts is another essential aspect of mold maintenance that can help improve injection mold quality. Over time, components in a mold may deteriorate or become damaged, leading to issues such as part defects or mold failure.

When damage or wear is detected during inspections, mold operators must determine whether the component can be repaired or needs replacing. In some cases, minor repairs may be possible with specialized tools and techniques; in others, however, a complete replacement may be necessary.

Replacement components should be made from high-quality materials and designed to meet the same specifications as the original components. Furthermore, replacements should be installed precisely for proper alignment and prevention of leaks or other issues which could adversely impact mold performance or part quality.

Regular repair and replacement of mold components can help avoid more serious issues from occurring and extend its service life. Companies should establish proper repair/replacement procedures and guarantee their mold operators have sufficient training to identify and address any issues which could affect mold performance or part quality.

B. Surface Finishing

1.Polishing and Texturing

Surface finishing is another critical step in improving injection mold quality. Polishing the mold surface helps ensure a smooth, consistent surface finish on finished parts, which in turn leads to better part quality overall.

Polishing is the process of using specialized tools and abrasives to remove any imperfections or rough spots on the mold surface. This guarantees the parts have a uniform, smooth finish which can improve their visual appeal as well as functionality. Polishing is especially crucial for high-end or cosmetic parts that demand superior finish quality.

Texturing is the process of creating a pattern or texture on the mold surface that will be transferred to the finished part. Texturing can be used for improving part grip or giving the part an eye-catching appearance. Texturing can be accomplished using various techniques like etching, sandblasting, and laser engraving.

Polishing and texturing should only be performed by trained professionals using specialized tools and techniques. Before any polishing or texturing is carried out on the mold surface, it must be cleaned thoroughly to avoid contamination or other issues that could negatively affect part quality.

In conclusion, proper surface finishing is critical for improving injection mold quality and guaranteeing that finished parts meet the required specifications. Manufacturers should establish proper polishing and texturing procedures and train their mold operators on how to follow them consistently for optimal mold performance and part quality.

2.Accurate Alignment of Mold Halves

Accurate alignment of mold halves is another essential factor in producing high-quality injection molded parts. Aligning them correctly ensures that molten plastic flows evenly through the mold, producing consistent dimensions and surface finish on finished items.

During injection molding, mold halves are typically held together by clamping force. If not aligned correctly, this clamping force could be uneven, leading to uneven plastic flow and ultimately defective finished parts.

Aligning mold halves correctly requires both careful assembly and adjustment of components, as well as using specialized alignment tools and techniques. Mold operators should guarantee all pieces are assembled correctly and the halves are tightened evenly for accurate alignment.

Additionally, mold operators should regularly verify the alignment of their mold halves during production to guarantee it stays within required tolerances. Any alignment issues should be addressed promptly to avoid part defects or mold damage.

C. Temperature and Cooling Process

1.Temperature Control Is Key

Temperature control is paramount in producing high-quality injection molded parts. Achieving accurate control over melt and mold temperatures helps guarantee that plastic flows evenly through the mold, leading to consistent dimensions and surface finish for finished parts.

During the injection molding process, it is essential to regulate the temperature of molten plastic for it to maintain proper viscosity and flow evenly through the mold. Furthermore, this temperature control helps guarantee that parts come out without distortion or other defects after solidifying in their respective molds.

Temperature control in molds can be achieved through careful selection of materials, design of cooling channels, and use of specialized temperature control systems. Mold operators should regularly monitor the temperature of both molten plastic and mold during production and make necessary adjustments as needed to guarantee it remains within the required tolerances.

Mold operators must pay special attention to temperature control as well as the cooling process used after injection of the part into the mold. Proper cooling is key for avoiding warping or shrinkage of the finished part and for shortening cycle time during injection molding.

2.Optimizing cooling time and rate

Optimizing cooling time and rate are other critical factors in producing high-quality injection molded parts. Adequate cooling can prevent warping or shrinkage of the finished part, as well as shorten the cycle time of the injection molding process.

The cooling time needed for a part will vary based on several factors, such as its thickness, the material used, and the complexity of the mold design. Mold operators must strive to optimize each part’s cooling time so that it solidifies completely before being released from its mold.

In addition to optimizing cooling time, mold operators should also pay close attention to the cooling rate during injection molding. A precise rate of cooling must be maintained so that plastic solidifies evenly without distortion, as an improper rate could lead to defects such as warping, shrinkage, or sink marks on the final part.

Proper cooling can be achieved through proper mold design, the use of specialized cooling channels, and attentive control over the cooling process. Mold operators should regularly monitor this step during production to make adjustments as necessary so that each part experiences optimal cooling time and rate.

IV. Conclusion

Improving the quality of injection molds is critical for producing high-quality final products and optimizing production processes. We’ve examined various factors that may contribute to mold quality, such as design, material selection, assembly techniques, process parameters, and quality control checks.

We have also addressed the steps manufacturers can take to enhance injection mold quality, such as regular maintenance and cleaning, surface finishing techniques, temperature and cooling process optimization, and proper gating system design.

Furthermore, we have stressed the significance of quality consciousness in injection molding and its benefits for final product quality and production efficiency. By emphasizing quality consciousness and employing best practices in mold design, production, and maintenance – manufacturers can achieve significant cost savings, improved product quality, and increased productivity.

In conclusion, by understanding the factors that affect plastic injection mold quality and applying best practices for the design, production, and maintenance of injection molds, manufacturers can maximize mold performance and extend their service life. With high-quality injection molds, they will be able to produce superior products efficiently and cost-effectively while meeting the demands of an increasingly competitive market.
