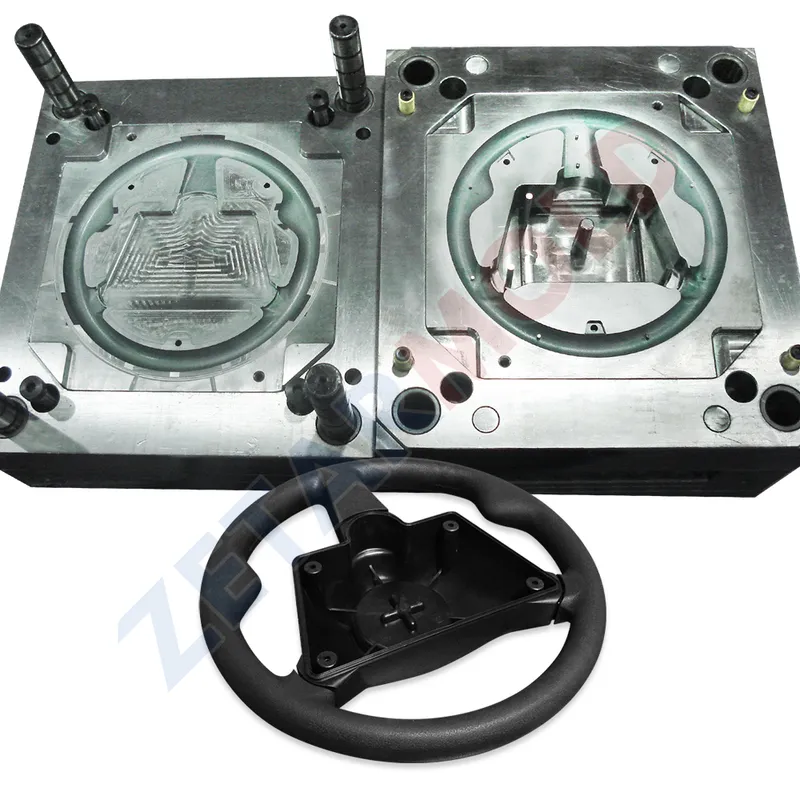

What is High-Volume Injection Mold Steel?
High-Volume Injection Mold Steel refers to specialized steel grades designed for manufacturing molds that withstand prolonged production cycles (typically over 100,000 cycles) in high-volume injection molding processes. These steels prioritize durability, wear resistance, and thermal stability to maintain precision under repetitive use.
1. Key Characteristics of High-Volume Mold Steels:
① High Wear Resistance: Withstand abrasive forces from repeated molding cycles (e.g., S7 steel offers excellent wear resistance for molds exceeding 500,000 cycles).
② Thermal Stability: Maintain dimensional accuracy under high-temperature conditions (e.g., H13 tool steel retains hardness and resists thermal fatigue).
③ Hardness & Toughness Balance: Pre-hardened steels like P20 are versatile for moderate production, while S7 provides superior toughness for large molds.
④ Corrosion Resistance: Grades like 420 stainless steel are used for molds exposed to moisture (e.g., medical or food industries), though they sacrifice hardness.
2. Common High-Volume Steel Grades:
| Material | Key Properties | Typical Applications |
|---|---|---|
| S136 (Stavax) | Corrosion-resistant, mirror finish | Medical devices, optical lenses |
| NAK80 | High polishability, pre-hardened | Automotive trims, consumer electronics |
| H13 (8407) | Thermal fatigue resistance | High-temperature engineering plastics |
| 718H | Balanced cost/performance | General-purpose high-volume parts |
| Cr12MoV | Extreme wear resistance | Abrasive-filled materials (e.g., GF-PA) |
3. Application Scenarios:
① Automotive Oarts: High-strength S7 for long-run components.
② Electronics Housings: H13 for heat-resistant molds.
③ Medical Devices: 420 stainless for corrosion resistance.
4. Selection Factors:
① Production Volume: Opt for S7/H13 for >100k cycles; P20 for <100k cycles.
② Material Complexity: Higher-grade steels (e.g., S7) suit intricate geometries.
③ Cost: Premium grades like H13 justify costs for extended mold lifespan.

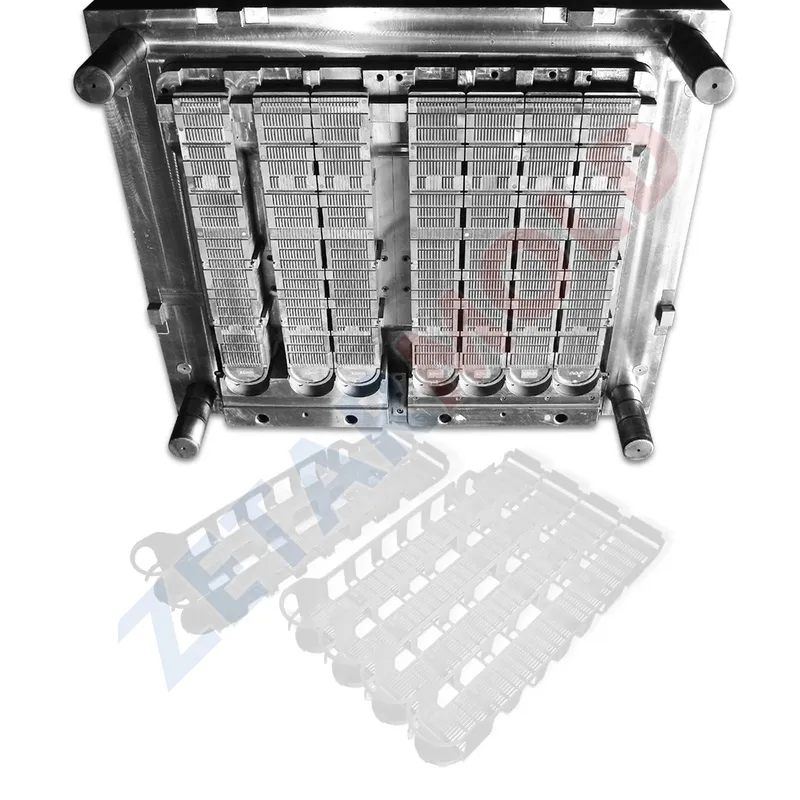

High-Volume vs. Low-Volume Injection Mold Steel: Key Differences
The fundamental differences between high-volume and low-volume injection mold steel can be summarized through material properties, cost considerations, and application-specific requirements. Below is a structured comparison based on industry practices and material characteristics:
1. Material Hardness & Wear Resistance:
① High-Volume Molds: Require steels with high hardness (HRC 45-55+) and exceptional wear resistance to withstand millions of cycles. Examples:
• 718H (pre-hardened steel, HRC 33-37).
• S136/S136H (HRC 30-35, corrosion-resistant for medical/optical applications).
• NAK80 (high-polish steel for high-precision parts).
② Low-Volume Molds: Prioritize machinability over extreme durability. Common choices:
• P20 Steel (pre-hardened, HRC 28-32).
• DF2 Oil-Hardening Steel (lower cost, suitable for <100k cycles).
2. Corrosion Resistance:
① High-Volume Molds: Use chromium-rich steels (e.g., S136H, M316) for corrosion resistance when molding PVC, POM, or medical-grade plastics that release acidic byproducts.
② Low-Volume Molds: Often opt for standard steels (e.g., PX88) without advanced corrosion resistance to reduce costs.
3. Thermal Stability & Heat Treatment:
① High-Volume Molds: Require steels with high thermal conductivity and resistance to softening at elevated temperatures (e.g., 8407 for hot-runner systems). Pre-hardened steels (e.g., 718H) minimize post-machining distortion.
② Low-Volume Molds: Use non-heat-treated or softer steels (e.g., MM30/MM40 beryllium copper) for simpler cooling channel machining.
4. Application-Specific Requirements:
① High-Volume: Automotive/electronics molds use NAK80 or LD Steel for high rigidity and fatigue resistance. Transparent parts require high-polish steels (e.g., M316).
② Low-Volume: Prototypes or small batches use aluminum alloys or soft steels for faster machining.

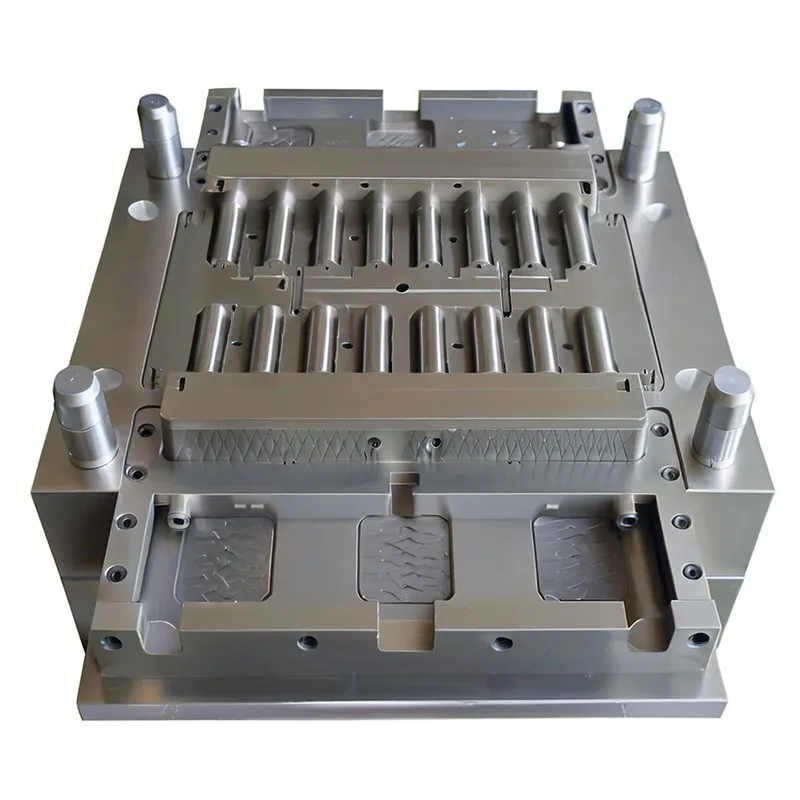

How to Choose the Right Mold Steel for High-Volume Production?
To select suitable mold steel materials for high-volume injection molding, consider the following key factors and material recommendations based on industry practices and material properties:
1. Wear Resistance & Hardness:
High-volume production demands materials with excellent wear resistance to withstand prolonged friction from plastic flow.
• Target hardness: HRC 50–62 (post-heat treatment). Examples:
• Cr12MoV (HRC 58–62): High wear resistance for abrasive plastics (e.g., glass-filled polymers).
• H13 (8407): Combines toughness and moderate wear resistance, suitable for high-temperature molding cycles.
2. Corrosion Resistance:
Critical for materials releasing acidic gases (e.g., PVC, POM).
• S136 (Stavax): Stainless steel with superior corrosion resistance and mirror polishability for medical/optical parts.
• 420 Modified: Lower-cost alternative for mildly corrosive environments.
3. Thermal Stability:
Avoid deformation under cyclic thermal stress.
• NAK80: Pre-hardened (HRC 38–41) with excellent thermal stability and polishability for high-gloss automotive/consumer parts.
• 718H: Pre-hardened (HRC 36–38), cost-effective for moderate thermal loads.
4. Machinability & Maintenance:
Complex geometries require easy-to-machine steels.
• P20: Soft pre-hardened steel (HRC 28–32) for prototyping and low-to-mid volume production.
• NAK80: Contains copper/aluminum for improved machinability.
5. Cost Efficiency:
Balance performance with budget.
• 718H and P20 offer lower upfront costs.
• S136 and NAK80 justify higher costs with extended lifespan in demanding applications.

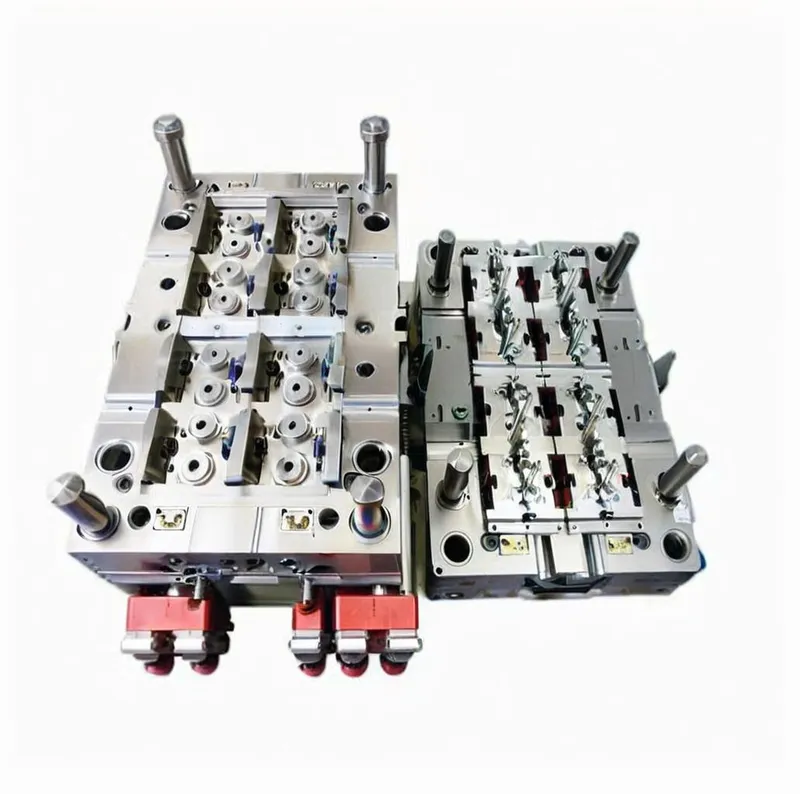

Industries That Rely on High-Volume Injection Mold Steel
High-performance injection mold steel solutions are widely used in the following industries due to their high wear resistance, high-temperature resistance, long lifespan, and fast molding capabilities:
1. Automotive Manufacturing:
① Application Scenarios: Production of high-strength plastic parts like dashboards, bumpers, interior components, and battery module enclosures for electric vehicles.
② Demand Characteristics: Requires precise, high-frequency production with molds that offer strong corrosion resistance and excellent dimensional stability.
2. Consumer Electronics:
① Application Scenarios: Manufacturing plastic parts such as phone and computer casings, connectors, chargers, and various smart home devices.
② Demand Characteristics: Requires rapid product iteration with molds that ensure quick changes, smooth surfaces, and support intricate, thin-walled designs.
3. Medical Equipment:
① Application Scenarios: Production of medical plastic parts like syringes, infusion connectors, reagent boxes, and device enclosures.
② Demand Characteristics: Requires medical-grade material compatibility with molds that ensure cleanliness, chemical resistance, and high safety standards.
4. Daily Consumer Goods:
① Application Scenarios: Beverage bottle caps, food containers, cosmetic bottles, disposable tableware, etc.
② Demand Characteristics: Molds must adapt to high-speed production (such as hundreds of cycles per minute) and maintain surface cleanliness over time to support transparent/colored plastics’ visual effects.
5. Industrial Equipment:
① Application Scenarios: Pipe fittings, insulation components, solar panel brackets, cable sheaths, etc.
② Demand Characteristics: Molds must withstand high-temperature and high-pressure processing environments of engineering plastics (such as PA66, PPS) and ensure long-term durability of the components.

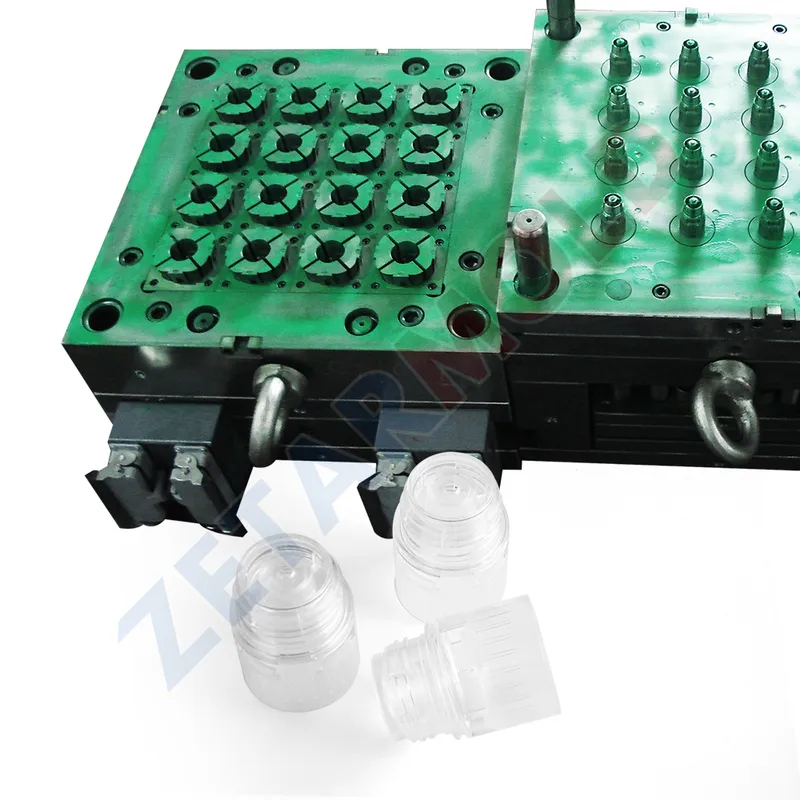

Why Does High-Volume Mold Steel Take Longer? How to Reduce Lead Time?
High-volume mold steel production often faces extended lead times due to its complex manufacturing processes and supply chain dynamics. Below is a structured analysis of the reasons and optimization strategies, integrating insights from industry practices:
1. Complex Production Processes:
① Mold steel requires multi-stage precision machining (e.g., forging, heat treatment, surface polishing) and strict quality control. For instance, M2 high-speed steel demands precise temperature control during quenching (1,190–1,230°C) and repeated tempering to ensure hardness and wear resistance.
② Large-scale production amplifies equipment scheduling conflicts, especially for specialized processes like vacuum smelting or EDM machining.
2. Material and Tooling Constraints:
① High-performance alloys (e.g., H13, 3Cr2W8V) require specific raw material sourcing and strict chemical composition control. Imported materials or rare alloys often face supply bottlenecks.
② Tool wear in high-volume production necessitates frequent replacements, increasing downtime. For example, EDM electrodes and cutting tools degrade faster under high loads.
3. Supply Chain Fragmentation:
① Inconsistent coordination between suppliers (e.g., raw material delays), manufacturers, and logistics providers disrupt timelines. Seasonal factors (e.g., wind tower production peaks) exacerbate delays.
② Quality disputes (e.g., material defects or dimensional errors) often require rework, extending lead times.
How to Assess the Performance of High-Volume Mold Steel?
To validate the actual performance of high-volume injection mold steel, a systematic approach combining laboratory testing and production simulation should be implemented. Here’s a structured validation framework based on industry practices and technical specifications from the search results:
1. Mechanical & Physical Property Testing:
① Tensile/Compression/Bending Tests: Verify yield strength (≥1,500 MPa) and elastic modulus using universal testing machines to simulate mold stress conditions.
② Hardness Grading: Conduct Rockwell (HRC), Vickers (HV), and Brinell (HB) tests to ensure hardness aligns with standards (e.g., HRC 50+ for anti-wear requirements).
③ Impact Toughness: Evaluate fracture resistance under sudden load changes using Charpy/Izod tests, critical for high-cycle molds.
2. Microstructural Analysis:
① Metallographic Examination: Use microscopy to assess grain uniformity, carbide distribution, and defects like porosity.
② Heat Treatment Validation: Confirm quenching/tempering effectiveness by checking phase transitions (e.g., martensite formation in H13 steel).
3. Corrosion & Wear Resistance:
① Salt Spray Testing: Simulate corrosive environments (e.g., PVC processing) to validate anti-rust performance of high-chromium steels like M316.
② Polishing Capability: Test surface finish to ≥10,000# mirror level, crucial for optical-grade plastic parts.
4. Thermal Stability Verification:
① Thermal Cycling Tests: Expose samples to 160–300°C cycles (matching injection temperatures) to check dimensional stability.
② Heat Deflection Measurement: Ensure deformation <0.1% under sustained thermal load.
5. Production Simulation:
① Mold Trial with Process Monitoring:
• Track wear patterns after 50k–100k shots using pre-calibrated test cavities.
• Monitor ejection force consistency (±5% tolerance).
② Material Flow Analysis: Use pressure sensors to validate steel’s flow resistance during high-speed injection.
6. Long-Term Performance Tracking:
① Batch Consistency Checks: Compare key metrics (e.g., hardness variance ≤3 HRC) across multiple production batches.
② Field Failure Analysis: Document root causes of cracks/pitting in retired molds to refine validation protocols.

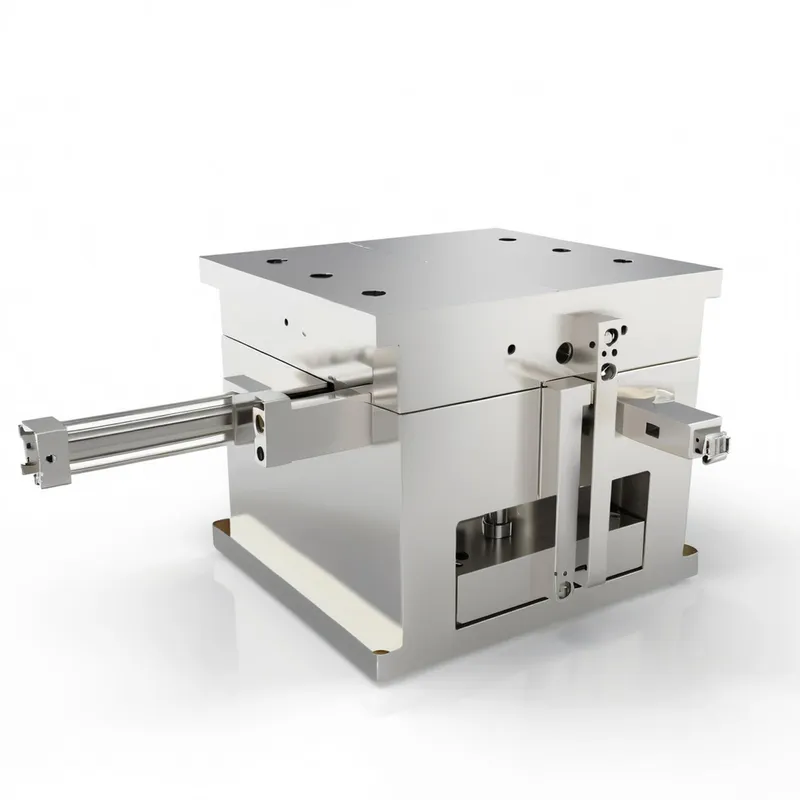

What are the Requirements for Standardized Mold Making for Injection Molds?
Standardized mold making in injection molds is vital for ensuring consistency, efficiency, and cost-effectiveness in production processes across various industries. Standardized mold making requires precise engineering, material quality selection, adherence

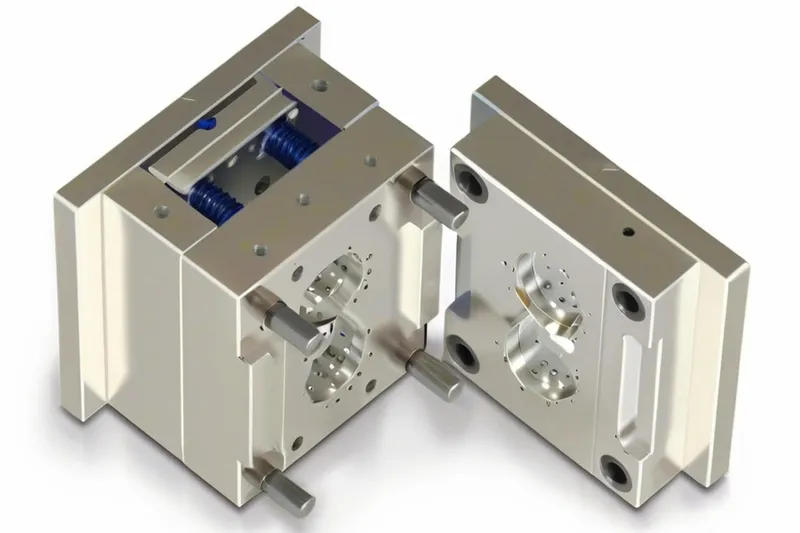

How to Judge the Quality of Injection Mold?
Evaluating injection mold quality is crucial for ensuring precision, durability, and cost-effectiveness in manufacturing processes. Assess the quality of injection molds by examining material choice, dimensional accuracy, surface finish, and

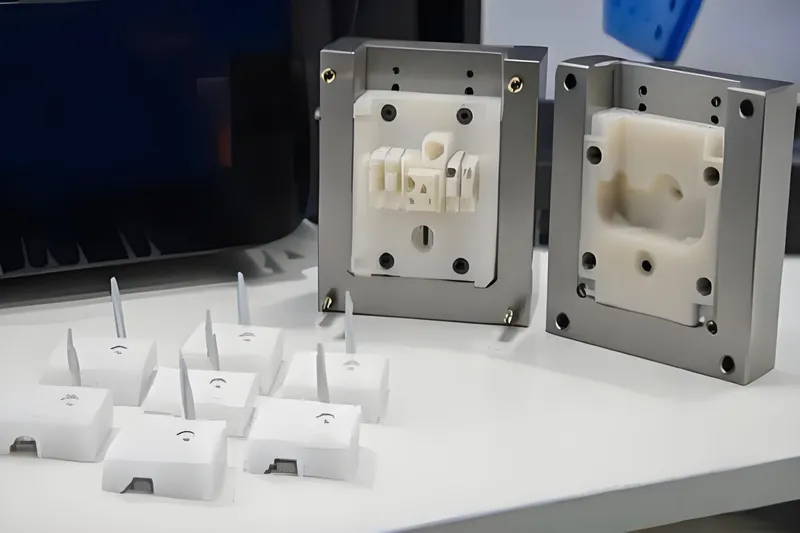

What are Some Ways to Improve the Productivity of Injection Molds?
Enhancing the productivity of injection molds is key to optimizing manufacturing processes and reducing costs. Several strategies can be employed to achieve higher efficiency. Improving mold productivity involves optimizing cycle
