What is High-Temperature Injection Mold Steel?

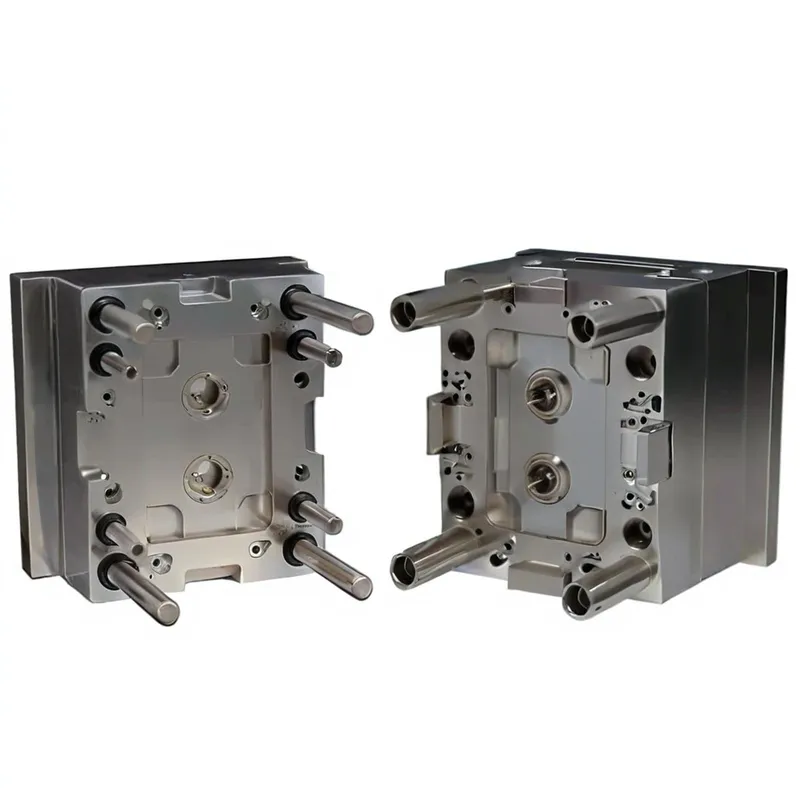

Injection molding is a cornerstone of modern manufacturing, enabling the production of precise plastic parts by injecting molten material into a mold, where it cools and solidifies. However, when working with high-performance plastics—such as those with melting points exceeding 300°C—standard mold materials often fail under the intense thermal stress. High-temperature resistance injection mold steel solutions are specially engineered to withstand these conditions, maintaining their shape, strength, and durability even at elevated temperatures. These steels are vital for industries like automotive, aerospace, and medical manufacturing, where precision and reliability are non-negotiable.
High-temperature injection mold steels are critical for producing parts from engineering plastics that require extreme heat during molding. These steels resist deformation, cracking, and wear, ensuring consistent part quality over thousands or even millions of cycles. Their ability to handle thermal cycling—repeated heating and cooling—without losing hardness or toughness makes them indispensable. For example, a mold used for automotive components must endure high temperatures while maintaining tight tolerances, directly affecting production efficiency and cost.
Which Steels are Commonly Used for High-Temperature Injection Molds?

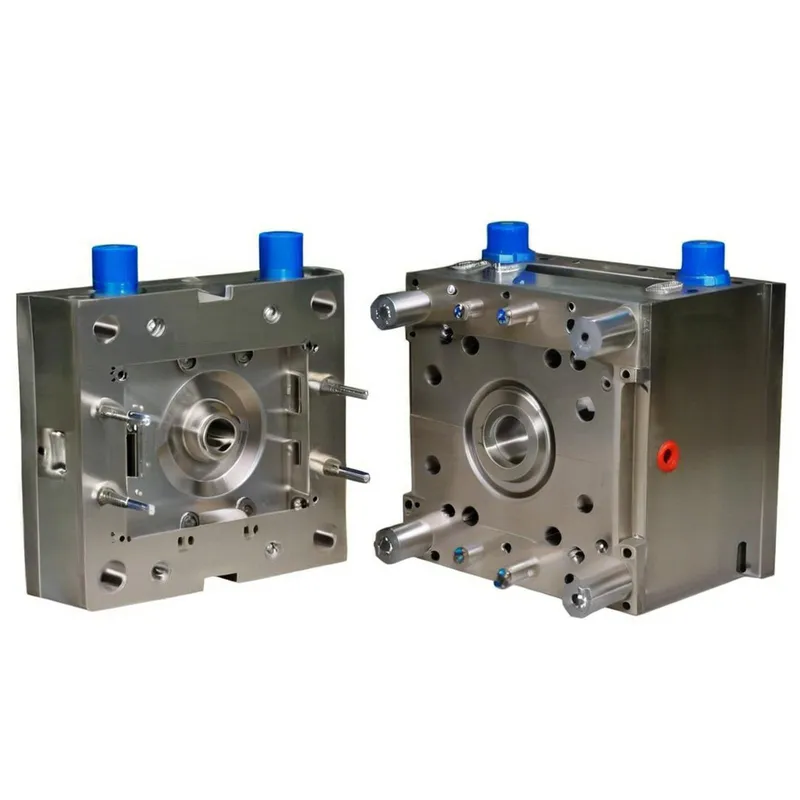

High-temperature injection mold steels come in various types, each tailored to handle the demanding conditions of molding processes involving elevated temperatures. These steels are selected based on their ability to resist heat, wear, and fatigue, ensuring the mold performs reliably over time. Common options include H13, H11, S-7, 420 stainless steel, and 4140, each offering distinct advantages depending on the application.
High-temperature injection mold steels, such as H13, H11, S-7, 420 stainless steel, and 4140, are designed to endure extreme heat—typically between 150°C and 200°C—while maintaining hardness, wear resistance, and structural integrity. These properties ensure the mold’s durability and the precision of the molded parts, making them essential for high-performance applications.
1. H13 Steel: A popular choice due to its excellent wear resistance and ability to retain strength at high temperatures. It’s widely used for automotive and electronic molds.
2. H11 Steel: Known for good heat resistance, making it suitable for molding tougher plastics that require higher processing temperatures.
3. S-7 Pre-Hardened Tool Steel: Offers resistance to softening under heat and excels in high-volume production requiring tight tolerances.
4. 420 Stainless Steel: Combines corrosion resistance with wear resistance, ideal for molds in food or medical applications where hygiene is critical.
5. 4140 Steel: A robust alloy with high wear resistance, perfect for heavy-duty molds in industrial settings.
What are the Key Properties of These Steels?
To choose the right steel, a deeper understanding of each type’s properties and applications is essential. H13 steel stands out for its balanced properties, including wear resistance, toughness, and thermal conductivity (19.9–48.3 W/m.K), making it a top choice for high-temperature injection molds. H11 offers similar heat resistance for hard plastics, while S-7 ensures stability in high-volume runs. For corrosive environments, 420 stainless steel excels, and 4140 is preferred for heavy-duty, high-volume applications.
Detailed Properties of High-Temperature Injection Mold Steels：
| Steel Type | Hardness (HRC) | Thermal Conductivity (W/m.K) | Key Properties | Typical Applications |
|---|---|---|---|---|
| H13 Steel | 46-54 | 19.9–48.3 | High wear resistance, toughness, heat strength | Automotive parts, electronics, deep cavity molds |
| H11 Steel | 46-54 | 19.9–48.3 | Good heat resistance, durability | Hard plastic molds, high-temperature applications |
| S-7 Steel | 56 | Not specified | Heat stability, wear resistance | Tight tolerances, high-volume abrasive material molds |
| 420 Stainless | Up to 55 | Not specified | Corrosion resistance, wear resistance | Food, medical molds, corrosive environments |
| 4140 Steel | Not specified | Not specified | High strength, wear resistance | Heavy-duty molds, industrial high-volume production |
1. H13 Steel: Its resistance to thermal fatigue and cracking makes it ideal for complex molds with deep cavities or thin walls. It’s a go-to for precision parts.
2. H11 Steel: Slightly less versatile than H13 but excels with plastics requiring higher molding temperatures, offering reliable performance under stress.
3. S-7 Pre-Hardened Tool Steel: Pre-hardened to resist softening, it’s perfect for molds needing consistent performance with abrasive or high-impact plastics.
4. 420 Stainless Steel: When hardened, it provides unmatched corrosion resistance, crucial for molds exposed to moisture or acidic plastics.
5. 4140 Steel: A chromium-molybdenum alloy that shines in applications demanding durability, such as molds for large industrial components.
What Should You Consider When Selecting Steel for Your Mold?

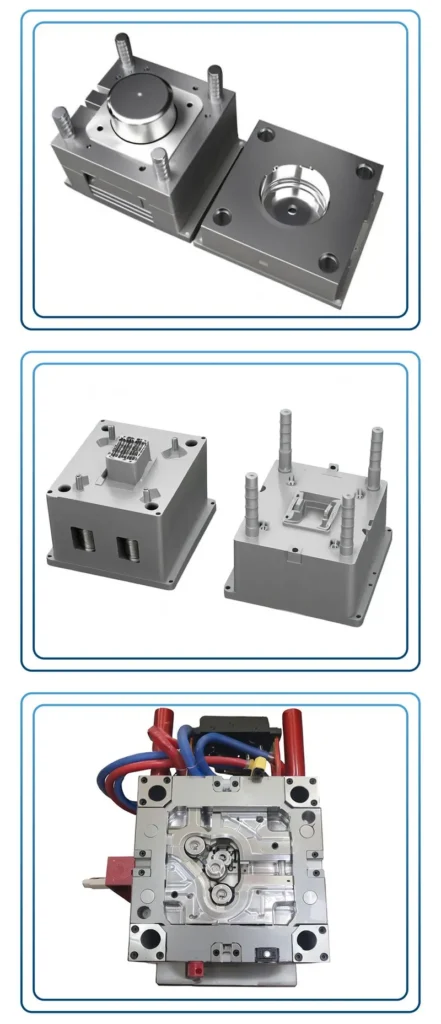

Selecting the right steel for a high-temperature injection mold requires balancing multiple factors to match the project’s demands. These considerations ensure the mold performs efficiently while staying within budget and meeting durability requirements.
Key selection factors for high-temperature injection mold steel include wear resistance, heat resistance, corrosion resistance, thermal conductivity, machinability, and cost. H13 steel is often chosen for its versatility and affordability, while 420 stainless steel is favored for corrosion resistance in food and medical applications.
Key Factors to Evaluate:
1. Wear Resistance: Critical for molds processing abrasive plastics (e.g., glass-filled polymers). H13 and S-7 excel here, extending mold life.
2. Heat Resistance: The steel must retain its properties at operating temperatures (150°C–200°C). H13 and H11 are reliable options for most high-heat scenarios.
3. Corrosion Resistance: Necessary for molds exposed to corrosive plastics or humid conditions. 420 stainless steel is the best choice for these environments.
4. Thermal Conductivity: Higher values (e.g., H13’s 19.9–48.3 W/m.K) improve cooling rates, reducing cycle times and boosting productivity.
5. Machinability: Impacts fabrication costs and complexity. Softer steels like 420 stainless (below 30 HRC) are easier to machine, while hardened steels require more effort.
6. Cost: Budget constraints often dictate the final choice. H13 offers a cost-effective balance, while 4140 is pricier but more durable.
What Specialty Materials are Available for High-Temperature Molds?

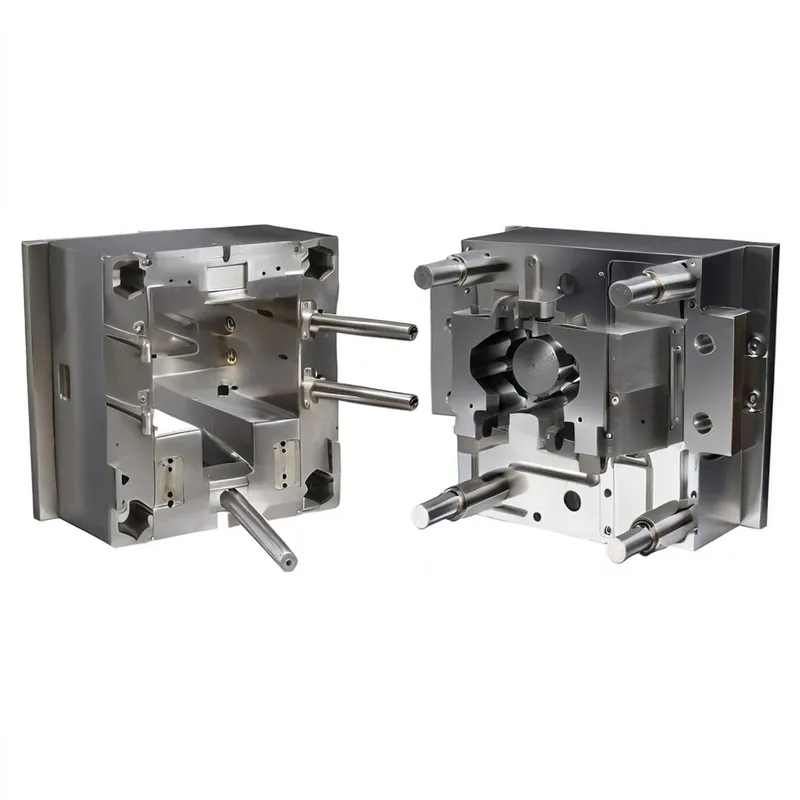

Specialty materials like MoldMAX® (a copper alloy) and aluminum offer high thermal conductivity, potentially cutting production costs by up to 25% through faster cooling cycles. These materials suit projects needing quick turnaround, despite their higher initial investment.
Specialty Material Highlights:
1. MoldMAX®: A copper-based alloy with superior thermal conductivity, it speeds up cooling, making it ideal for high-volume runs where time savings matter.
2. Aluminum: Lightweight and affordable, aluminum molds excel in prototyping or low-volume production due to fast cooling, though they lack steel’s longevity.
3. Tungsten Carbide: Incredibly hard and wear-resistant, it’s used for precision molds in aerospace or electronics, where durability outweighs cost concerns.
These materials shine in niche applications. For instance, MoldMAX® can reduce cycle times in a high-output electronics mold, offsetting its upfront cost with long-term savings. Aluminum is a budget-friendly choice for testing new designs, while tungsten carbide suits ultra-precise, high-wear environments. Exploring these options can unlock unexpected advantages for your project.
How to Choose the Right Steel for Your Injection Molding Project?

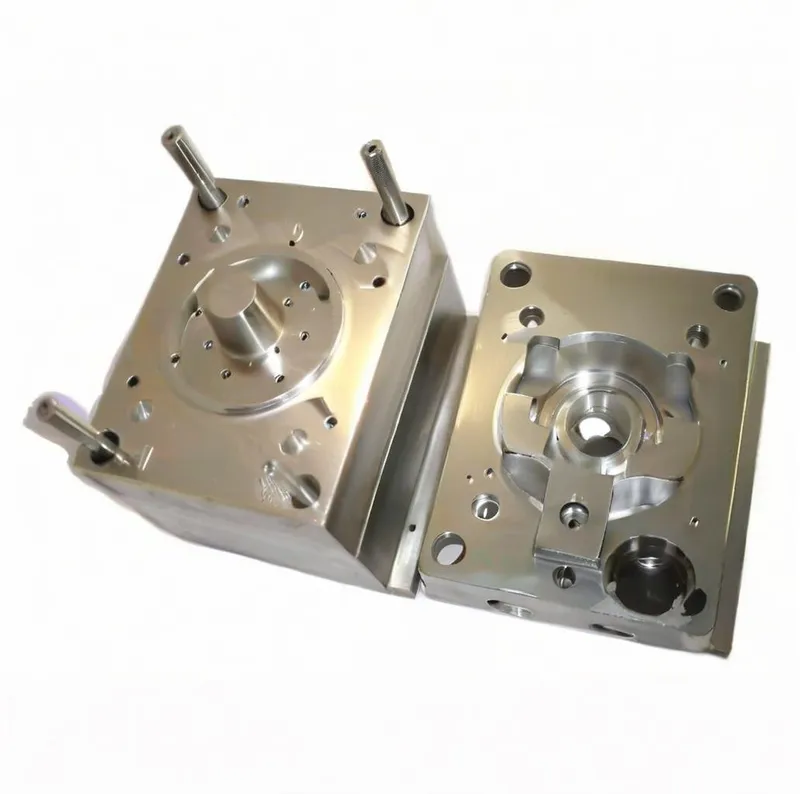

Choosing the right steel involves aligning material properties with your project’s unique needs. The best high-temperature injection mold steel depends on the plastic type, operating temperature, production volume, and budget. H13 steel suits high-volume automotive parts for its durability and cost-effectiveness, while 420 stainless steel is perfect for food-grade molds due to its corrosion resistance.
Selection Guidelines:
2. Operating Temperature: For 150°C–200°C, H13 or H11 work well; higher temperatures may need specialty materials like MoldMAX®.
3. Production Volume: High-volume runs favor durable H13 or 4140; low-volume or prototyping can use aluminum.
4. Surface Finish: S-7 polishes to a high luster for glossy parts; H13 is versatile for varied finishes.
5. Budget: H13 balances cost and performance; 4140 offers premium durability at a higher price.
Practical Applications:
1. Automotive: H13 molds produce dashboards and engine components, leveraging its wear resistance and thermal conductivity.
2. Medical: 420 stainless steel molds syringes and containers, resisting corrosion from sterilization processes.
3. Prototyping: Aluminum molds quickly shape test parts, saving time and money in early design stages.
4. Industrial: 4140 steel molds heavy-duty gears, enduring high stress and volume.
