Which principle is used in injection moulding

Table of Contents

Introduction

Injection molding (commonly referred to as injection molding) is a combined injection and molding method with several advantages, such as fast production speeds, efficient operation that can be automated, various designs and colors available, shapes that range from simple to complex and sizes that range from large to small; product dimensions remain accurate throughout production as replacement products can easily be formed into complex shapes; dimensions remain accurate, parts easily interchanged for easy replacement purposes and accurate product dimensions can easily form complex shapes; in short injection molding is well suited for mass production with complex-shaped products as well as other molding processing industries.

At certain temperatures, fully molten plastic material is mixed using a screw and then injected into mold cavities at high pressure before cooling and solidifying to form the final product. This method is highly suitable for mass producing components with complex shapes. As one of many production process techniques available to manufacturers today.

II. The Basic Principle of Injection Molding

At its core, injection molding involves heating and melting plastic particles using an injection machine, before injecting this viscous liquid through an adapter into a mold cavity. After some cooling time passes, solidified material solidifies to form desired product(s).

At its heart, injection molding relies on thermoplasticity and flowability of plastics to fill mold cavities quickly with liquid material that solidifies during cooling to form desired shapes. Temperature, pressure and cooling times must all be controlled during this process to guarantee final product quality is met.

The injection molding process usually includes the following 7 stages:

(1) Closing the mold:

In order to start injection molding, you first need to move the molds to the injection molding machine and align them correctly and close them. During this process, the mold is powered by a hydraulic system.

(2) Mold clamping stage:

Execute the mold clamping procedure in the injection molding machine and ensure that the mold is completely closed mold cavity and locked. Once the mold is locked, other production steps can continue.

(3) Plastic injection stage:

In this step, the injection molding machine feeds the plastic raw material into the injection molding cavity. After the plastic melts, it enters the mold through the nozzle and fills the mold cavity until a part or product of the desired shape is formed.

(4) Pressure maintenance stage:

After the parts fully fill the mold cavity, the injection moulding machine applies a certain injection pressure between the barrel and the mold to ensure the appearance and performance quality of the parts.

(5) Plastic cooling stage:

After sufficient pressure holding, the injection moulding machine continues to apply pressure within a certain period of time (cooling time), and the surface temperature of the part is quickly reduced to below its initial hardening point in the mold through the cooling system. , to achieve cooling and solidification of plastics.

(6) Mold opening stage:

After the injection molding machine completes all steps of manufacturing the product, the mold can be opened through the hydraulic system and the parts can be pushed out of the mold.

(7) Part shrinkage stage:

When the parts are taken out of the mold, they will come into contact with air and start to cool. At this time, the size of the part may be slightly reduced due to the influence of plastic shrinkage, so the size of the part needs to be appropriately adjusted according to the design requirements.

III. Key Principles and Factors in Injection Molding

At its heart, injection molding involves carefully considering several key principles and factors – each having an enormous influence over product quality as well as manufacturing efficiency. We will be exploring four of these elements here in detail:

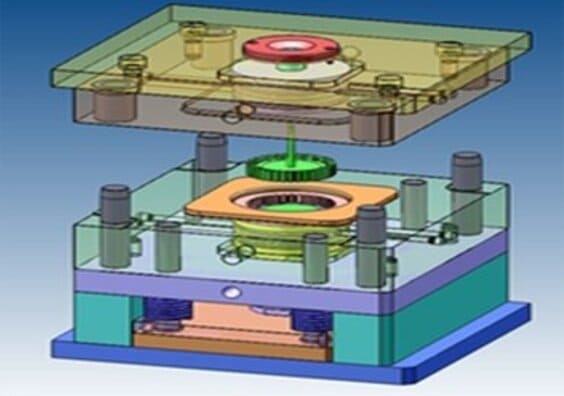

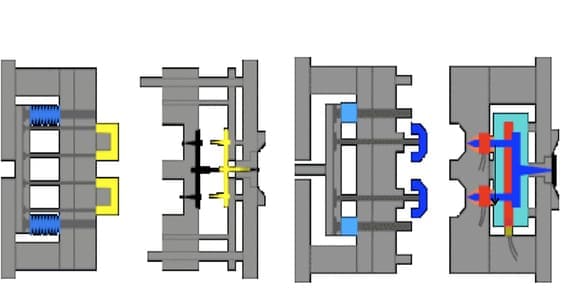

1. Mold Design

Mold design is an integral component of injection moulding process. A injection mould, also referred to as the tool or die, serves as the framework through which material can be injected for creation of final products and ensures accurate processes are followed during this step of manufacturing. Proper mold design impacts various aspects of this process such as:

Shape and Size: In order for every part to meet its specifications, its mold cavity must accurately represent its desired form and dimensions. With precise mold design comes peace of mind knowing every molded item meets these demands.

Wall Thickness: Maintaining consistent wall thickness within your mold is paramount to avoiding defects like warping, sink marks or uneven cooling. A proper wall thickness design also enhances structural integrity of products manufactured within it.

Location of Gate: Where material enters a mold cavity can have an enormous effect on material flow, part quality and ease of ejection – choosing an optimal gate location can make all the difference in reaching desired outcomes.

2. Material Selection

Selecting an ideal material is another essential aspect. Your selection impacts its properties such as strength, flexibility and resistance to heat or chemicals as well as other key considerations when creating products from plastic materials – consider:

Plastic Material Properties: Different plastics exhibit distinct properties, including thermoplastic or thermosetting characteristics, melting points and mechanical characteristics that must be understood to select an appropriate material for an application. Understanding these attributes is integral in selecting an optimal plastic for any given task.

Environmental Conditions: Understanding your product’s operating environment – such as temperatures and chemical or UV radiation exposure – is paramount when selecting materials suitable to enduring those circumstances.

Cost Considerations: Material costs play an increasingly significant role in high-volume production environments. Finding materials that balance performance with cost effectiveness should always be part of material selection processes.

3. Injection Speed Wages

Injection speed refers to the rate at which material is introduced into a mold cavity from its source, such as through in-vessel injection or external transfer. Therefore, controlling injection speed can be crucially important. Among its many functions and purposes is speed: it has to do with efficiency of production line operation as well as quality.

Material Flow: Controlling injection speed effectively ensures material flows evenly and consistently throughout a mold cavity, thus eliminating issues like incomplete filling or air traps.

Surface Finish: Injection speed can have an enormous influence over the final texture and appearance of any molded part, and precise control can help reach desired textures and appearances.

Structural Integrity: By altering injection speed, adjustments may improve a part’s structural integrity and lessen its susceptibility to defects.

4. Quality Control

Ensuring high-quality standards throughout the injection molding process is vital in meeting product specifications and customer expectations, thus necessitating stringent quality controls measures including ongoing monitoring and inspection for consistency and reliable production. Key aspects of quality control in injection molding include:

Product Inspection: Frequent visual and automated tool inspection of molded parts can detect defects or variations in product quality quickly and effectively.

Quantitative Feeding: By carefully controlling how much material enters a machine, exact control over each part can ensure they meet specifications as intended.

Gate Marks and Ejector Pins: Close monitoring and management of gate marks and ejector pins is important in order to avoid cosmetic defects and ensure seamless part ejection from molds.

Manufacturers can optimize their injection molding operations by considering these four key principles and factors: mold design, material selection, injection speed and quality control. Doing this allows manufacturers to produce high-quality plastic products that satisfy stringent standards while remaining cost effective – which leads to customer satisfaction as well as efficient manufacturing operations.

IV.Specialized Injection Molding Techniques

While the basic principles of injection molding remain constant, specialized techniques have developed over time to meet individual manufacturing and material needs and requirements. These specialized injection molding methods offer distinctive advantages when employed for specific industries where precision, efficiency or specific material properties are critical components. Here is an introduction to three of these specialized methods of molding:

Screw Injection Molding Machines

A screw injection molding machine stands out from other forms of injection molding equipment because its injection process relies on an oscillating screw mechanism for easier injection and offers multiple advantages, including:

Screw Injection Machines Are Highly Precise:

Screw injection machines offer highly precise control over their injection process, making them suitable for creating intricate and complex parts.

High Volume Production:

These robots excel at high volume production due to their ability to consistently and rapidly inject material into mold cavities.

Production of Complex Shapes:

Screw injection molding machines excel in producing parts with complex geometries and close tolerances, such as those produced using 3D printers.

These machines are used extensively across several industries, such as automobile, electronics and medical device production – where precision and high production rates are of critical importance.

2. Reaction Injection Molding (RIM)

RIM is an emerging technique which differs significantly from traditional injection molding techniques, in that rather than using heated plastic pellets as in traditional molding processes, RIM uses two or more reactive liquid components which chemically react in the mold cavity to form rigid solid polymers within it. RIM offers several benefits compared to its more traditional counterpart. These advantages may include:

RIM’s High-Strength Parts: RIM produces parts with exceptional strength, making them suitable for applications requiring structural integrity to be preserved.

Rapid Production: RIM’s rapid chemical reactions enable faster production cycles.

Complex Shapes: RIM has extensive expertise in producing parts with complex geometries, accommodating large as well as lightweight structures.

Industries including automotive, aerospace and enclosure production often rely on RIM for lightweight yet sturdy component production.

Metal Injection Molding (MIM) is an advanced injection molding technique that marries its versatility with metal materials’ characteristics. MIM involves mixing fine metal powders with thermoplastic binders to form feedstock that will later be injected into molds for debinding and sintering to remove excess binder material and fuse together metal particles for solid parts. MIM offers several notable advantages over injection molding processes:

Complex Shapes: MIM can produce intricate metal parts with complex geometries that would be challenging or impossible to create with traditional machining or casting processes.

Fast Production Cycles: Metal parts produced using this process can be produced quickly and cost-effectively for high-volume production runs.

Mechanical Properties: MIM parts have excellent mechanical properties, including strength and dimension stability.

MIM technology can be found across industries from automobile production and electronics design to healthcare; any time precise metal components are necessary.

Overall, injection molding techniques like screw plastic injection molding, reaction injection molding (RIM), and metal injection molding (MIM) provide tailored solutions for specific manufacturing requirements. With these specialized injection molding processes in their arsenal of methods lies unique advantages for complex parts manufacturing along with strong components exhibiting unique material properties needed in various industries.

Conclusion

In this comprehensive exploration of plastic injection molding, we’ve delved into the core principles and factors that drive this remarkable manufacturing process. Injection molding stands as a cornerstone of modern industry, enabling the production of a vast array of plastic and metal parts and products with precision and efficiency.

Throughout this article, we’ve highlighted the following key points:

  • Basic Principle: Injection molding operates on the fundamental principle of converting raw materials, often plastics or metals, into precisely molded shapes by injecting them into meticulously designed mold cavities.
  • Role of Injection Molding Machines: Injection molding machines are the linchpin of this process, ensuring precise control over temperature, pressure, injection speed, and quality control measures. They play a pivotal role in achieving consistent and high-quality results.
  • Key Principles and Factors: We’ve explored critical considerations such as mold design, material selection, injection speed, and quality control. Understanding and optimizing these factors are essential for producing parts that meet stringent standards.
  • Specialized Techniques: Specialized injection molding techniques like screw injection molding, reaction injection molding (RIM), and metal injection molding (MIM) offer tailored solutions for industries with diverse requirements, from high precision to unique material properties.

As we conclude, it’s worth emphasizing the importance of understanding injection molding principles. Whether you’re involved in manufacturing, engineering, or product development, a grasp of these principles is invaluable. It enables you to make informed decisions, optimize production processes, reduce costs, and maintain product quality.

In a world where precision, efficiency, and material diversity are paramount, injection molding remains at the forefront of innovation and manufacturing excellence. With a solid foundation in its principles and a commitment to continuous improvement, manufacturers can continue to meet the demands of a dynamic and evolving marketplace, delivering products that enhance our everyday lives.

So, whether you’re crafting automotive parts, electronics, medical devices, or consumer goods, the principles of injection molding serve as a guiding force in achieving excellence in your production endeavors.
